5.1 The Command Design Pattern

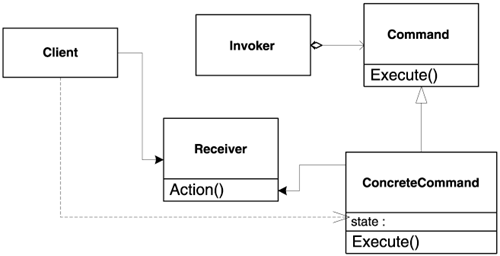

According to the Gang of Four (GoF) book (Gamma et al. 1995), the Command pattern's intent is to encapsulate a request in an object. A Command object is a piece of work that is stored away from its actual executor. The general structure of the Command pattern is presented in Figure 5.1.

The pattern's main piece is the Command class itself. Its most important purpose is to reduce the dependency between two parts of a system—the invoker and the receiver.

A typical sequence of actions is as follows:

The invoker can invoke Execute at its leisure. Most important, at runtime you can plug various actions into the invoker by replacing the Command object that the invoker holds.

Two things are worth noting here. First, the invoker is not aware of how the work is done. This is not a new concept—to use a sorting algorithm, you don't need to know its implementation. But what's particular to Command is that the invoker doesn't even know what kind of processing the Command object is supposed to do. (By contrast, you certainly would expect the sorting algorithm to have a certain effect.) The invoker only calls for Execute for the Command interface it holds when certain circumstances occur. On the other side, the receiver itself is not necessarily aware that its Action member function was called by an invoker or otherwise.

The Command object thus ensures an important separation between the invoker and the receiver: They might be completely invisible to each other, yet communicate via Commands. Usually, an Application object decides the wiring between invokers and receivers. This means that you can use different invokers for a given set of receivers, and that you can plug different receivers into a given invoker—all without their knowing anything about each other.

Second, let's look at the Command pattern from a timing perspective. In usual programming tasks, when you want to perform an action, you assemble an object, a member function of it, and the arguments to that member function into a call. For example:

window.Resize(0, 0, 200, 100); // Resize the window

The moment of initiating such a call is conceptually indistinguishable from the moment of gathering the elements of that call (the object, the procedure, and the arguments). In the Command pattern, however, the invoker has the elements of the call, yet postpones the call itself indefinitely. The Command pattern enables delayed calls as in the following example:

Command resizeCmd(


   window, // Object


   &Window::Resize, // Member function


   0, 0, 200, 100); // Arguments


// Later on...


resizeCmd.Execute();  // Resize the window

(We will dwell on the slightly less-known C++ construct &Window::Resize a bit later.) In the Command pattern, the moment of gathering the environment necessary to perform a processing is different from the moment of performing the processing. Between the two moments, the program stores and passes around the processing request as an object. Had this timing-related desire not existed, there would have been no Command pattern. From this standpoint, the very existence of the Command object is a consequence of the timing issue: Because you need to perform processing later, there has to be an object that holds the request until then.

These points lead to two important aspects of the Command pattern:

• Interface separation. The invoker is isolated from the receiver.

• Time separation. Command stores a ready-to-go processing request that's to be started later.

The notion of environment is also important. The environment of a point of execution is the set of entities (variables and functions) that are visible from that point of execution. When the processing is actually started, the necessary environment must be available or else the processing cannot take place. A ConcreteCommand object might store part of its necessary environment as its own state and access part of it during Execute. The more environment a ConcreteCommand stores, the more independence it has.

From an implementation standpoint, two kinds of concrete Command classes can be identified. Some simply delegate the work to the receiver. All they do is call a member function for a Receiver object. We call them forwarding commands. Others do tasks that are more complex. They might call member functions of other objects, but they also embed logic that's beyond simple forwarding. Let's call them active commands.

Separating commands into active and forwarding is important for establishing the scope of a generic implementation. Active commands cannot be canned—the code they contain is by definition application-specific—but we can develop helpers for forwarding commands. Because forwarding commands act much like pointers to functions and their C++ colleagues, functors, we call them generalized functors.

The aim of the rest of this chapter is to obtain a Functor class template that encapsulates any object, any member function of that object, and any set of arguments pertaining to that member function. Once executed, the Functor animates all these little things to obtain a function call.

A Functor object can be of tremendous help to a design that uses the Command pattern. In hand-coded implementations, the Command pattern doesn't scale well. You must write lots of small concrete Command classes (one for each action in the application: CmdAddUser, CmdDeleteUser, CmdModifyUser, and so on), each having a trivial Execute member function that just calls a specific member function of some object. A generic Functor class that can forward a call to any member function of any object would be of great help to such a design.

Some particular active commands are also worth implementing in Functor, such as the sequencing of multiple actions. Functor should be able to assemble multiple actions and execute them in order. The GoF book mentions such a useful object, Macro Command.
