Iterator

Intent

Provide a way to access the elements of an aggregate object sequentially without exposing its underlying representation.

Problem

Need to "abstract" the traversal of wildly different data structures so that algorithms can be defined that are capable of interfacing with each transparently.

Discussion

"An aggregate object such as a list should give you a way to access its elements without exposing its internal structure. Moreover, you might want to traverse the list in different ways, depending on what you need to accomplish. But you probably don't want to bloat the List interface with operations for different traversals, even if you could anticipate the ones you'll require. You might also need to have more than one traversal pending on the same list." [GOF, p257] And, providing a uniform interface for traversing many types of aggregate objects (i.e. polymorphic iteration) might be valuable.

The Iterator pattern lets you do all this. The key idea is to take the responsibility for access and traversal out of the aggregate object and put it into an Iterator object that defines a standard traversal protocol.

The Iterator abstraction is fundamental to an emerging technology called "generic programming". This strategy seeks to explicitly separate the notion of "algorithm" from that of "data structure". The motivation is to: promote component-based development, boost productivity, and reduce configuration management.

As an example, if you wanted to support four data structures (array, binary tree, linked list, and hash table) and three algorithms (sort, find, and merge), a traditional approach would require four times three permutations to develop and maintain. Whereas, a generic programming approach would only require four plus three configuration items.

Structure

Example

The Iterator provides ways to access elements of an aggregate object sequentially without exposing the underlying structure of the object. Files are aggregate objects. In office settings where access to files is made through administrative or secretarial staff, the Iterator pattern is demonstrated with the secretary acting as the Iterator. Several television comedy skits have been developed around the premise of an executive trying to understand the secretary's filing system. To the executive, the filing system is confusing and illogical, but the secretary is able to access files quickly and efficiently. [Michael Duell, "Non-software examples of software design patterns", Object Magazine, Jul 97, p54]

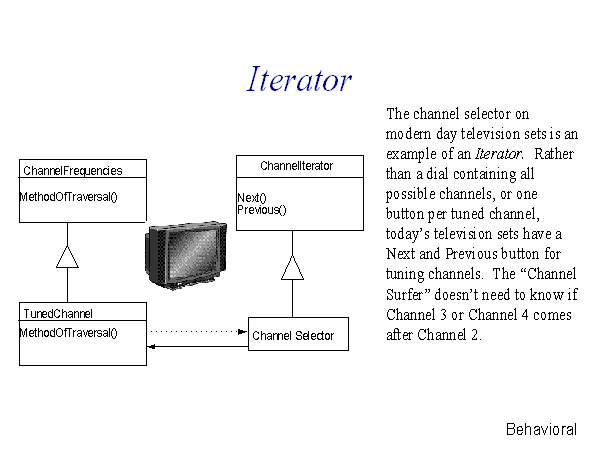

Non-software example

Rules of thumb

The abstract syntax tree of Interpreter is a Composite (therefore Iterator and Visitor are also applicable). [GOF, p255]

Iterator can traverse a Composite. Visitor can apply an operation over a Composite. [GOF, p173]

Polymorphic Iterators rely on Factory Methods to instantiate the appropriate Iterator subclass. [GOF, p271]

Memento is often used in conjunction with Iterator. An Iterator can use a Memento to capture the state of an iteration. The Iterator stores the Memento internally. [GOF, p271]
