Chapter 15. Code Refinement, Security, and Deployment

Topics in This Chapter

• Code Refinement: .NET provides a tool, FxCop, which analyzes code by checking it against a set of best practice rules and recommendations. This tool is designed for building components, but most applications can benefit from it as way to amend and refine how code is implemented. An example demonstrates how to analyze code using this tool's command-line interface.

• Strongly Named Assemblies: One aspect of code security is being able to verify an application's origin and version. .NET provides a way to mark an assembly with a key that identifies it, and supports an assembly versioning scheme that distinguishes between code versions—allowing multiple versions of a component to coexist.

• Application Security: The .NET Code Access Security model is based on a simple principle: allow code to access system resources and perform operations only when it has permission to do so. Before an assembly can access resources such as files, sockets, or the registry, it is checked for evidence to determine the permissions that it can be given. This chapter explains the overall security model and looks at how it is applied administratively and within code.

• Application Deployment: One of the touted benefits of .NET is the ability to install an application using XCOPY deployment—simple file copying. However, many applications require a more sophisticated approach that takes into account security policies and resource management. This chapter presents a checklist of issues to be considered.

In the earliest days of programming, computers were used primarily to perform calculations and tedious tabulations. The measure of a program's correctness was whether it produced accurate results for a given set of input values. Modern software development now relies more on component-based solutions. The components often come from multiple sources, and it's not always possible to know the origin or trustworthiness of the components. As a result, code security and the ease of deploying and updating an application are now important metrics against which an application's success is judged.

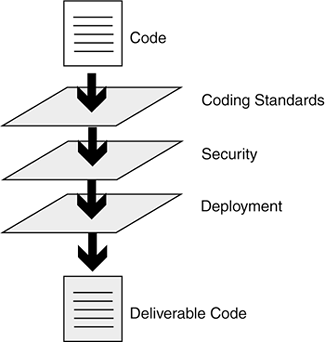

This chapter looks at the issues and steps involved in producing a deliverable .NET software product. It breaks the process down into the three categories shown in Figure 15-1: code refinement, which looks at how code is tested against best practice rules; code security, which ensures that code is accessed only by other code that has permission to do so; and code deployment, which looks at how an application or component is packaged and made available for deployment.

The first section shows how to use FxCop as a tool to analyze an assembly and generate code change recommendations based on a predefined set of coding standards. The second section looks at the details of how to create a strongly named assembly and the security benefits that accrue from doing so.

The next section—which forms the heart of the chapter—explores the topic of Code Access Security (CAS). It explains how an administrator uses .NET tools to define a multi-level security policy for a computing environment and how security features are embedded in code. It also stresses understanding the interrelated security roles of evidence, policy, and permissions.

The chapter concludes with a look at the issues to be considered in deploying an application to users or customers. The advantages and disadvantages of using XCOPY or an installer to physically distribute an application are discussed.
