VOID BaseProcessStart(PPROCESS_START_ROUTINE pfnStartAddr)
{
   __try
   {
      ExitThread((pfnStartAddr)());
   }
   __except(UnhandledExceptionFilter(GetExceptionInformation()))
   {
      ExitProcess(GetExceptionCode());
   }
   // NOTE: We never get here
}

VOID BaseThreadStart(PTHREAD_START_ROUTINE pfnStartAddr, PVOID pvParam)
{
   __try
   {
      ExitThread((pfnStartAddr)(pvParam));
   }
   __except(UnhandledExceptionFilter(GetExceptionInformation()))
   {
      ExitProcess(GetExceptionCode());
   }
   //NOTE: We never get here
}

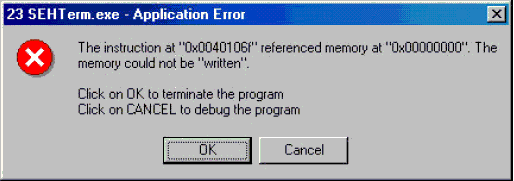

LONG UnhandledExceptionFilter(PEXCEPTION_POINTERS pExceptionInfo);

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AeDebug

"C:\Program Files\Microsoft Visual Studio\Common\MSDev98\Bin\msdev.exe"
   -p %ld -e %ld

BOOL DebugActiveProcess(DWORD dwProcessID);

UINT SetErrorMode(UINT fuErrorMode);

PTOP_LEVEL_EXCEPTION_FILTER SetUnhandledExceptionFilter(
   PTOP_LEVEL_EXCEPTION_FILTER pTopLevelExceptionFilter);

LONG UnhandledExceptionFilter(PEXCEPTION_POINTERS pExceptionInfo);

void Funcadelic()
{
   __try
   {
      ...
   }
   __except(ExpFltr(GetExceptionInformation()))
   {
      ...
   }
}

LONG ExpFltr(PEXCEPTION_POINTERS pEP)
{
   DWORD dwExceptionCode = pEP->ExceptionRecord.ExceptionCode;

   if(dwExceptionCode == EXCEPTION_ACCESS_VIOLATION)
   {
      // Do some work here....
      return(EXCEPTION_CONTINUE_EXECUTION);
   }

   return(UnhandledExceptionFilter(pEP));
}

/******************************************************************************
Module:  Spreadsheet.cpp
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#include "..\CmnHdr.h"     /* See Appendix A. */
#include <windowsx.h>
#include <tchar.h>
#include "Resource.h"
#include "VMArray.h"


///////////////////////////////////////////////////////////////////////////////


HWND g_hwnd;   // Global window handle used for SEH reporting

const int g_nNumRows = 256;
const int g_nNumCols = 1024;

// Declare the contents of a single cell in the spreadsheet
typedef struct {
   DWORD dwValue;
   BYTE  bDummy[1020];
} CELL, *PCELL;


// Declare the data type for an entire spreadsheet
typedef CELL SPREADSHEET[g_nNumRows][g_nNumCols];
typedef SPREADSHEET *PSPREADSHEET;


///////////////////////////////////////////////////////////////////////////////


// A spreadsheet is a 2-dimensional array of CELLs
class CVMSpreadsheet : public CVMArray<CELL> {
public:
   CVMSpreadsheet() : CVMArray<CELL>(g_nNumRows * g_nNumCols) {}

private:
   LONG OnAccessViolation(PVOID pvAddrTouched, BOOL fAttemptedRead,
      PEXCEPTION_POINTERS pep, BOOL fRetryUntilSuccessful);
};


///////////////////////////////////////////////////////////////////////////////

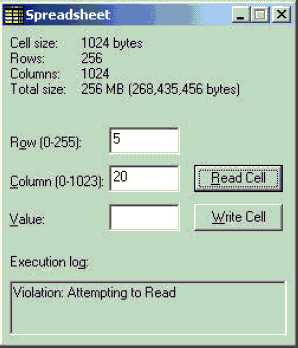

LONG CVMSpreadsheet::OnAccessViolation(PVOID pvAddrTouched, BOOL fAttemptedRead,
   PEXCEPTION_POINTERS pep, BOOL fRetryUntilSuccessful) {

   TCHAR sz[200];

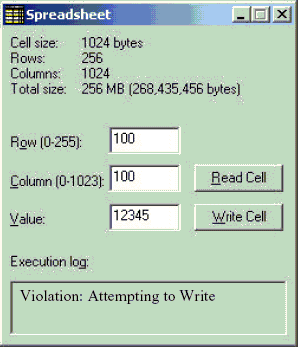

   wsprintf(sz, TEXT("Violation: Attempting to %s"),
      fAttemptedRead ? TEXT("Read") : TEXT("Write"));
   SetDlgItemText(g_hwnd, IDC_LOG, sz);

   LONG lDisposition = EXCEPTION_EXECUTE_HANDLER;
   if (!fAttemptedRead) {

      // Return whatever the base class says to do
      lDisposition = CVMArray<CELL>::OnAccessViolation(pvAddrTouched,
         fAttemptedRead, pep, fRetryUntilSuccessful);
   }

   return(lDisposition);
}

///////////////////////////////////////////////////////////////////////////////


// This is the global CVMSpreadsheet object
static CVMSpreadsheet g_ssObject;

// Create a global pointer that points to the entire spreadsheet region
SPREADSHEET& g_ss = * (PSPREADSHEET) (PCELL) g_ssObject;


///////////////////////////////////////////////////////////////////////////////

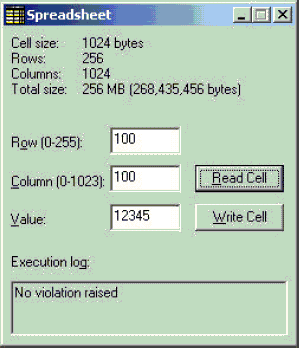

BOOL Dlg_OnInitDialog(HWND hwnd, HWND hwndFocus, LPARAM lParam) {

   chSETDLGICONS(hwnd, IDI_SPREADSHEET);

   g_hwnd = hwnd; // Save for SEH reporting

   // Put default values in the dialog box controls
   Edit_LimitText(GetDlgItem(hwnd, IDC_ROW),    3);
   Edit_LimitText(GetDlgItem(hwnd, IDC_COLUMN), 4);
   Edit_LimitText(GetDlgItem(hwnd, IDC_VALUE),  7);
   SetDlgItemInt(hwnd, IDC_ROW,    100,   FALSE);
   SetDlgItemInt(hwnd, IDC_COLUMN, 100,   FALSE);
   SetDlgItemInt(hwnd, IDC_VALUE,  12345, FALSE);
   return(TRUE);
}


///////////////////////////////////////////////////////////////////////////////


void Dlg_OnCommand(HWND hwnd, int id, HWND hwndCtl, UINT codeNotify) {

   int nRow, nCol;

   switch (id) {
      case IDCANCEL:
         EndDialog(hwnd, id);
         break;

      case IDC_ROW:
         // User modified the row, update the UI
         nRow = GetDlgItemInt(hwnd, IDC_ROW, NULL, FALSE);
         EnableWindow(GetDlgItem(hwnd, IDC_READCELL),
            chINRANGE(0, nRow, g_nNumRows - 1));
         EnableWindow(GetDlgItem(hwnd, IDC_WRITECELL),
            chINRANGE(0, nRow, g_nNumRows - 1));
         break;

      case IDC_COLUMN:
         // User modified the column, update the UI
         nCol = GetDlgItemInt(hwnd, IDC_COLUMN, NULL, FALSE);
         EnableWindow(GetDlgItem(hwnd, IDC_READCELL),
            chINRANGE(0, nCol, g_nNumCols - 1));
         EnableWindow(GetDlgItem(hwnd, IDC_WRITECELL),
            chINRANGE(0, nCol, g_nNumCols - 1));
         break;

      case IDC_READCELL:
         // Try to read a value from the user's selected cell

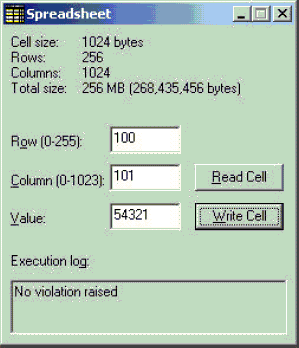

         SetDlgItemText(g_hwnd, IDC_LOG, TEXT("No violation raised"));
         nRow = GetDlgItemInt(hwnd, IDC_ROW, NULL, FALSE);
         nCol = GetDlgItemInt(hwnd, IDC_COLUMN, NULL, FALSE);
         __try {
            SetDlgItemInt(hwnd, IDC_VALUE, g_ss[nRow][nCol].dwValue, FALSE);
         }
         __except (
            g_ssObject.ExceptionFilter(GetExceptionInformation(), FALSE)) {

            // The cell is not backed by storage, the cell contains nothing.
            SetDlgItemText(hwnd, IDC_VALUE, TEXT(""));
         }
         break;

      case IDC_WRITECELL:
         // Try to read a value from the user's selected cell
         SetDlgItemText(g_hwnd, IDC_LOG, TEXT("No violation raised"));
         nRow = GetDlgItemInt(hwnd, IDC_ROW, NULL, FALSE);
         nCol = GetDlgItemInt(hwnd, IDC_COLUMN, NULL, FALSE);

         // If the cell is not backed by storage, an access violation is
         // raised causing storage to automatically be committed,
         g_ss[nRow][nCol].dwValue =
            GetDlgItemInt(hwnd, IDC_VALUE, NULL, FALSE);
         break;
   }
}


///////////////////////////////////////////////////////////////////////////////


INT_PTR WINAPI Dlg_Proc(HWND hwnd, UINT uMsg, WPARAM wParam, LPARAM lParam) {

   switch (uMsg) {
      chHANDLE_DLGMSG(hwnd, WM_INITDIALOG, Dlg_OnInitDialog);
      chHANDLE_DLGMSG(hwnd, WM_COMMAND,    Dlg_OnCommand);
   }
   return(FALSE);
}


///////////////////////////////////////////////////////////////////////////////


int WINAPI _tWinMain(HINSTANCE hinstExe, HINSTANCE, PTSTR pszCmdLine, int) {

   DialogBox(hinstExe, MAKEINTRESOURCE(IDD_SPREADSHEET), NULL, Dlg_Proc);
   return(0);
}


//////////////////////////////// End of File //////////////////////////////////

//Microsoft Developer Studio generated resource script.
//
#include "Resource.h"

#define APSTUDIO_READONLY_SYMBOLS
/////////////////////////////////////////////////////////////////////////////
//
// Generated from the TEXTINCLUDE 2 resource.
//
#include "afxres.h"

/////////////////////////////////////////////////////////////////////////////
#undef APSTUDIO_READONLY_SYMBOLS

/////////////////////////////////////////////////////////////////////////////
// English (U.S.) resources

#if !defined(AFX_RESOURCE_DLL) || defined(AFX_TARG_ENU)
#ifdef _WIN32
LANGUAGE LANG_ENGLISH, SUBLANG_ENGLISH_US
#pragma code_page(1252)
#endif //_WIN32

#ifdef APSTUDIO_INVOKED
/////////////////////////////////////////////////////////////////////////////
//
// TEXTINCLUDE
//

1 TEXTINCLUDE DISCARDABLE
BEGIN
    "Resource.h\0"
END

2 TEXTINCLUDE DISCARDABLE
BEGIN
    "#include ""afxres.h""\r\n"
    "\0"
END

3 TEXTINCLUDE DISCARDABLE
BEGIN
    "\r\n"
    "\0"
END

#endif    // APSTUDIO_INVOKED


/////////////////////////////////////////////////////////////////////////////
//
// Dialog
//

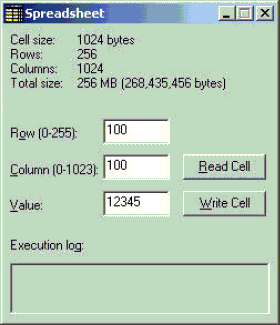

IDD_SPREADSHEET DIALOG DISCARDABLE  18, 18, 164, 165
STYLE DS_CENTER | WS_MINIMIZEBOX | WS_VISIBLE | WS_CAPTION | WS_SYSMENU
CAPTION "Spreadsheet"
FONT 8, "MS Sans Serif"
BEGIN
    LTEXT           "Cell size:\nRows:\nColumns:\nTotal size:",IDC_STATIC,4,
                    4,36,36
    LTEXT           "1024 bytes\n256\n1024\n256 MB (268,435,456 bytes)",
                    IDC_STATIC,44,4,104,36
    LTEXT           "R&ow (0-255):",IDC_STATIC,4,56,42,8
    EDITTEXT        IDC_ROW,60,52,40,14,ES_AUTOHSCROLL | ES_NUMBER
    LTEXT           "&Column (0-1023):",IDC_STATIC,4,76,54,8
    EDITTEXT        IDC_COLUMN,60,72,40,14,ES_AUTOHSCROLL | ES_NUMBER
    PUSHBUTTON      "&Read Cell",IDC_READCELL,108,72,50,14
    LTEXT           "&Value:",IDC_STATIC,4,96,21,8
    EDITTEXT        IDC_VALUE,60,92,40,14,ES_AUTOHSCROLL | ES_NUMBER
    PUSHBUTTON      "&Write Cell",IDC_WRITECELL,108,92,50,14
    LTEXT           "Execution lo&g:",IDC_STATIC,4,118,48,8
    EDITTEXT        IDC_LOG,4,132,156,28,ES_MULTILINE | ES_AUTOHSCROLL |
                    ES_READONLY
END


/////////////////////////////////////////////////////////////////////////////
//
// Icon
//

// Icon with lowest ID value placed first to ensure application icon
// remains consistent on all systems.
IDI_SPREADSHEET         ICON    DISCARDABLE     "Spreadsheet.Ico"
#endif    // English (U.S.) resources
/////////////////////////////////////////////////////////////////////////////



#ifndef APSTUDIO_INVOKED
/////////////////////////////////////////////////////////////////////////////
//
// Generated from the TEXTINCLUDE 3 resource.
//


/////////////////////////////////////////////////////////////////////////////
#endif    // not APSTUDIO_INVOKED

/******************************************************************************
Module:  VMArray.h
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#pragma once


///////////////////////////////////////////////////////////////////////////////


// NOTE: This C++ class is not thread safe. You cannot have multiple threads
// creating and destroying objects of this class at the same time.

// However, once created, multiple threads can access different CVMArray
// objects simultaneously and you can have multiple threads accessing a single
// CVMArray object if you manually synchronize access to the object yourself.


///////////////////////////////////////////////////////////////////////////////


template <class TYPE>
class CVMArray {
public:
   // Reserves sparse array of elements
   CVMArray(DWORD dwReserveElements);

   // Frees sparse array of elements
   virtual ~CVMArray();

   // Allows accessing an element in the array
   operator TYPE*()             { return(m_pArray); }
   operator const TYPE*() const { return(m_pArray); }

   // Can be called for fine-tuned handling if commit fails
   LONG ExceptionFilter(PEXCEPTION_POINTERS pep,
      BOOL fRetryUntilSuccessful = FALSE);

protected:
   // Override this to fine-tune handling of access violation
   virtual LONG OnAccessViolation(PVOID pvAddrTouched, BOOL fAttemptedRead,
      PEXCEPTION_POINTERS pep, BOOL fRetryUntilSuccessful);

private:
   static CVMArray* sm_pHead;    // Address of first object
   CVMArray* m_pNext;            // Address of next  object

   TYPE* m_pArray;               // Pointer to reserved region array
   DWORD m_cbReserve;            // Size of reserved region array (in bytes)

private:
   // Address of previous unhandled exception filter
   static PTOP_LEVEL_EXCEPTION_FILTER sm_pfnUnhandledExceptionFilterPrev;

   // Our global unhandled exception filter for instances of this class
   static LONG WINAPI UnhandledExceptionFilter(PEXCEPTION_POINTERS pep);
};


///////////////////////////////////////////////////////////////////////////////


// The head of the linked-list of objects
template <class TYPE>
CVMArray<TYPE>* CVMArray<TYPE>::sm_pHead = NULL;

// Address of previous unhandled exception filter
template <class TYPE>
PTOP_LEVEL_EXCEPTION_FILTER CVMArray<TYPE>::sm_pfnUnhandledExceptionFilterPrev;


///////////////////////////////////////////////////////////////////////////////


template <class TYPE>
CVMArray<TYPE>::CVMArray(DWORD dwReserveElements) {

   if (sm_pHead == NULL) {
      // Install our global unhandled exception filter when
      // creating the first instance of the class.
      sm_pfnUnhandledExceptionFilterPrev =
         SetUnhandledExceptionFilter(UnhandledExceptionFilter);
   }

   m_pNext = sm_pHead;  // The next node was at the head
   sm_pHead = this;     // This node is now at the head

   m_cbReserve = sizeof(TYPE) * dwReserveElements;

   // Reserve a region for the entire array
   m_pArray = (TYPE*) VirtualAlloc(NULL, m_cbReserve,
      MEM_RESERVE | MEM_TOP_DOWN, PAGE_READWRITE);
   chASSERT(m_pArray != NULL);
}


///////////////////////////////////////////////////////////////////////////////


template <class TYPE>
CVMArray<TYPE>::~CVMArray() {

   // Free the array's region (decommitting all storage within it)
   VirtualFree(m_pArray, 0, MEM_RELEASE);

   // Remove this object from the linked list
   CVMArray* p = sm_pHead;
   if (p == this) {     // Removing the head node
      sm_pHead = p->m_pNext;
   } else {

      BOOL fFound = FALSE;

      // Walk list from head and fix pointers
      for (; !fFound && (p->m_pNext != NULL); p = p->m_pNext) {
         if (p->m_pNext == this) {
            // Make the node that points to us point to the next node
            p->m_pNext = p->m_pNext->m_pNext;
            break;
         }
      }
      chASSERT(fFound);
   }
}


///////////////////////////////////////////////////////////////////////////////


// Default handling of access violations attempts to commit storage
template <class TYPE>
LONG CVMArray<TYPE>::OnAccessViolation(PVOID pvAddrTouched,
   BOOL fAttemptedRead, PEXCEPTION_POINTERS pep, BOOL fRetryUntilSuccessful) {

   BOOL fCommittedStorage = FALSE;  // Assume committing storage fails

   do {
      // Attempt to commit storage
      fCommittedStorage = (NULL != VirtualAlloc(pvAddrTouched,
         sizeof(TYPE), MEM_COMMIT, PAGE_READWRITE));

      // If storage could not be committed and we're supposed to keep trying
      // until we succeed, prompt user to free storage
      if (!fCommittedStorage && fRetryUntilSuccessful) {
         MessageBox(NULL,
            TEXT("Please close some other applications and Press OK."),
            TEXT("Insufficient Memory Available"), MB_ICONWARNING | MB_OK);
      }
   } while (!fCommittedStorage && fRetryUntilSuccessful);

   // If storage committed, try again. If not, execute the handler
   return(fCommittedStorage
      ? EXCEPTION_CONTINUE_EXECUTION : EXCEPTION_EXECUTE_HANDLER);
}


///////////////////////////////////////////////////////////////////////////////


// The filter associated with a single CVMArray object
template <class TYPE>
LONG CVMArray<TYPE>::ExceptionFilter(PEXCEPTION_POINTERS pep,
   BOOL fRetryUntilSuccessful) {

   // Default to trying another filter (safest thing to do)
   LONG lDisposition = EXCEPTION_CONTINUE_SEARCH;

   // We only fix access violations
   if (pep->ExceptionRecord->ExceptionCode != EXCEPTION_ACCESS_VIOLATION)
      return(lDisposition);

   // Get address of attempted access and get attempted read or write
   PVOID pvAddrTouched = (PVOID) pep->ExceptionRecord->ExceptionInformation[1];
   BOOL fAttemptedRead = (pep->ExceptionRecord->ExceptionInformation[0] == 0);

   // Is attempted access within this VMArray's reserved region?
   if ((m_pArray <= pvAddrTouched) &&
       (pvAddrTouched < ((PBYTE) m_pArray + m_cbReserve))) {

      // Access is in this array, try to fix the problem
      lDisposition = OnAccessViolation(pvAddrTouched, fAttemptedRead,
         pep, fRetryUntilSuccessful);
   }

   return(lDisposition);
}


///////////////////////////////////////////////////////////////////////////////


// The filter associated with all CVMArray objects
template <class TYPE>
LONG WINAPI CVMArray<TYPE>::UnhandledExceptionFilter(PEXCEPTION_POINTERS pep) {

   // Default to trying another filter (safest thing to do)
   LONG lDisposition = EXCEPTION_CONTINUE_SEARCH;

   // We only fix access violations
   if (pep->ExceptionRecord->ExceptionCode == EXCEPTION_ACCESS_VIOLATION) {

      // Walk all the nodes in the linked-list
      for (CVMArray* p = sm_pHead; p != NULL; p = p->m_pNext) {

         // Ask this node if it can fix the problem.
         // NOTE: The problem MUST be fixed or the process will be terminated!
         lDisposition = p->ExceptionFilter(pep, TRUE);

         // If we found the node and it fixed the problem, stop the loop
         if (lDisposition != EXCEPTION_CONTINUE_SEARCH)
            break;
      }
   }

   // If no node fixed the problem, try the previous exception filter
   if (lDisposition == EXCEPTION_CONTINUE_SEARCH)
      lDisposition = sm_pfnUnhandledExceptionFilterPrev(pep);

   return(lDisposition);
}


//////////////////////////////// End of File //////////////////////////////////

void ChunkyFunky()
{
   try
   {
      // Try body
      ...
      throw 5;
   }
   catch(int x)
   {
      // Catch body
      ...
   }
   ...
}

void ChunkyFunky()
{
   __try
   {
      // Try body
      ...
      RaiseException(Code=0xE06D7363,
         Flag=EXCEPTION_NONCONTINUABLE,
         Args=5);
   }
   __except((ArgType == Integer) ?
      EXCEPTION_EXECUTE_HANDLER :
      EXCEPTION_CONTINUE_SEARCH)
   {
      // Catch body
      ...
   }
   ...
}

void main()
{
   try
   {
      *(PBYTE) 0 = 0;      // Access violation?
   }
   catch(...)
   {
      // This code handles the access-violation exception
   }
   // The process is terminating normally
}

void Functastic()
{
   try
   {
      *(PBYTE) 0 = 0;      // Access violation

      int x = 0;
      x = 5 / x;           // Division by zero
   }
   catch(StructuredException)
   {
      switch(StructuredExceptionCode)
      {
         case EXCEPTION_ACCESS_VIOLATION:
            // This code handles an access-violation exception
            break;

         case EXCEPTION_INT_DIVIDE_BY_ZERO:
            // This code handles a division-by-zero exception
            break;

         default:
            // We don't handle any other exceptions
            throw;  // Maybe another catch is looking for this
            break;  // Never executes
      }
   }
}

#include <eh.h>         // For _set_se_translator

class CSE
{
public:

   //Call this function for each thread.
   static void MapSEtoCE()
   {
      _set_se_translator(TranslateSEtoCE);
   }

   operator DWORD()
   {
      return(m_er.ExceptionCode);
   }

private:

   CSE(PEXCEPTION_POINTERS pep)
   {
      m_er      = *pep->ExceptionRecord;
      m_context = *pep->ContextRecord;
   }

   static void _cdecl TranslateSEtoCE(UINT dwEC,
      PEXCEPTION_POINTERS pep)
   {
      throw CSE(pep);
   }

private:
   EXCEPTION_RECORD m_er;      // CPU independent exception information
   CONTEXT          m_context; // CPU dependent exception information
};

void Functastic()
{
   CSE::MapSEtoCE(); // Must be called before any exceptions are raised
   try
   {
      *(PBYTE) 0 = 0;    // Access violation
      int x = 0;
      x = 5 / x;         // Division by zero
   }
   catch(CSE se)
   {
      switch(se)
      {
         // Calls the operator DWORD() member function

         case EXCEPTION_ACCESS_VIOLATION:
            // This code handles an access-violation exception
            break;

         case EXCEPTION_INT_DIVIDE_BY_ZERO:
            // This code handles a division-by-zero exception
            break;

         default:
            // We don't handle any other exceptions
            throw;  // Maybe another catch is looking for this
            break;  // Never executes
      }
   }
}

CZVC编程网出品,一剑[QQ:28077188]整理编译,欢迎联系
MSN:loomman@hotmail.com
