Batch XMI Export

 Return to Introduction  Previous page  Next page

You can export a group of controlled packages in one step, using the Batch XMI Export facility.

To export a group of controlled packages, follow the steps below:

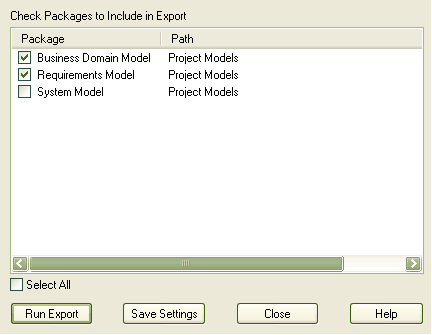

1.Select the Project | Import/Export | Batch XMI Export menu option. The Batch XMI Export dialog displays.

BatchXMIExport

2.Select the checkbox against each package to include in this export run. Select the Select All checkbox to select all packages in the list.
3.If you want to save this configuration as the default, click on the Save Settings button.
4.Click on the Run Export button.

Enterprise Architect cycles through each checked package and exports it using the options specified in the Controlled Package dialog. As long as a valid filename exists, Enterprise Architect  exports the package to XML and proceeds to the next package.
