2.1.1 Structures or Records in C

In C, memory can be thought of as consisting of storage elements of different length and complexity. Their complexity is determined by their type. The simplest storage elements have one of the three basic types, int, float, and char. Up one level in complexity are storage elements that have type structure. Among these, the simplest have exactly one member, which in turn has one of the basic types. A storage element of type structure for a book would be more complex; it might include members for its title, author, cost, and number of pages. Members are not restricted to one of the basic types but may themselves have type structure.

Consider the following C declarations:

float amount;     struct book               struct book text;

{

char title[35];

struct name author;

float cost;

int pages;

};

struct balance    struct name

{                 {

>Comment

float amount;     char last[15];

}bankbalance;         char middleinit;

char first[15];

}

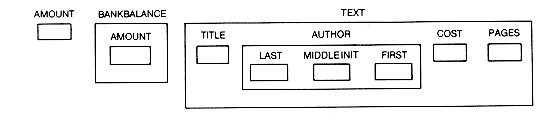

Storage for the three variables amount, bankbalance, and text may be pictured as in Figure 2.1. From the figure it is clear that storage must differ in complexity for different variables. The simplest is obviously the one that stores only one piece of information, as does the storage element for the variable amount. The structure bankbalance is obviously more complex; it could also be made longer by adding more fields such as lastdeposit and lastwithdrawal. Of course, more memory is needed to store the variable text than to store bankbalance. The type structure generalizes the idea of an individual variable containing only one piece of information to variables containing related pieces of information. The amount of storage required determines the length of a record, while the record's structure determines its complexity.

It is now possible to write C statements that refer to the entire record text, its author field, or its last field, using the names text,text.author, and text.author.last, respectively. In earlier versions of C it was not possible to write statements that referred to entire structures.

Figure 2.1 Three Variables
