CONTENTS

Chapter 12. CLASSES AND DYNAMIC MEMORY ALLOCATION

You will learn about the following in this chapter:

•  Dynamic Memory and Classes
•  Queue Simulation
•  Summary
•  Review Questions
•  Programming Exercises

This chapter looks at how to use new and delete with classes and how to deal with some of the subtle problems that using dynamic memory can cause. This may sound like a short list of topics, but these topics affect constructor design, destructor design, and operator overloading.

Let's look at a specific example of how C++ can add to your memory load. Suppose you want to create a class with a member representing someone's last name. The simplest way is to use a character array member to hold the name. But this has some drawbacks. You might use a 14-character array and then run into Bartholomew Smeadsbury-Crafthovingham. Or, to be safer, you may use a 40-character array. But, if you then create an array of 2000 such objects, you'll waste a lot of memory with character arrays that are only partly filled. (At this point, we're adding to the computer's memory load.) There is an alternative.

Often it is much better to decide many matters, such as how much storage to use, when a program runs than when it's compiled. The usual C++ approach to storing a name in an object is to use the new operator in a class constructor to allocate the correct amount of memory while the program is running. But introducing new to a class constructor raises several new problems unless you remember to take a series of additional steps, such as expanding the class destructor, bringing all constructors into harmony with the new destructor, and writing additional class methods to facilitate correct initialization and assignment. (This chapter, of course, will explain all these steps.) If you're just learning C++, you may be better off sticking initially to the simple, if inferior, character array approach. Then, when a class design works well, you can return to your OOP workbench and enhance the class declaration by using new. In short, grow gradually into C++.

Dynamic Memory and Classes

What would you like for breakfast, lunch, and dinner for the next month? How many ounces of milk for dinner on the third day? How many raisins in your cereal for breakfast on the fifteenth day? If you're like most people, you'd rather postpone some of those decisions until the actual mealtimes. Part of C++ strategy is to take the same attitude toward memory allocation, letting the program decide about memory during runtime rather than during compile time. That way, memory use can depend on the needs of a program instead of upon a rigid set of storage-class rules. To gain dynamic control of memory, you remember, C++ utilizes the new and delete operators. Unhappily, using these operators with classes can pose some new programming problems. As you'll see, destructors can become necessary instead of merely ornamental. And sometimes, you have to overload the assignment operator to get programs to behave properly. We'll look into these matters now.

Review Example and Static Class Members

We haven't used new and delete for a while, so let's review them with a short program. While we're at it, we'll introduce a new storage class: the static class member. The vehicle will be a StringBad class, later to be superseded by the slightly more able String class. (C++ now comes with a string class library, supported by the string header file, and Chapter 16, "The String Class and the Standard Template Library ," discusses that class. Meanwhile, the humble StringBad and String classes in this chapter will provide some insight into what underlies such a class.) StringBad and String class objects will hold a pointer to a string and a value representing the string length. We'll use the StringBad and String classes primarily to give an inside look at how new, delete, and static class members operate. For that reason, the constructors and destructors will display messages when called so that you can follow the action. Also, we'll omit several useful member and friend functions, such as overloaded ++ and >> operators and a conversion function, in order to simplify the class interface. (But rejoice! The review questions for this chapter give you the opportunity to add those useful support functions.) Listing 12.1 shows the class declaration.

Why call the class StringBad? This is to remind you that StringBad is an example under development. It's the first stage of developing a class using dynamic memory allocation, and it does the obvious things correctly; for example, it uses new and delete correctly in the constructors and destructor. It doesn't really do bad things, but the design omits doing some additional good things that are necessary but not at all obvious. Seeing the problems the class does have should help you understand and remember the non-obvious changes we will make later, when we convert it to the more functional String class.

Listing 12.1 strngbad.h

// strngbad.h -- flawed string class definition
#include <iostream>
using namespace std;
#ifndef STRNGBAD_H_
#define STRNGBAD_H_
class StringBad
{
private:
    char * str;             // pointer to string
    int len;                // length of string
    static int num_strings; // number of objects
public:
    StringBad(const char * s); // constructor
    StringBad();               // default constructor
    ~StringBad();              // destructor
// friend function
    friend ostream & operator<<(ostream & os,
                       const StringBad & st);
} ;
#endif

You should note two points about this declaration. First, it uses a pointer-to-char instead of a char array to represent a name. This means that the class declaration does not allocate storage space for the string itself. Instead, it will use new in the constructors to allocate space for the string. This arrangement avoids straitjacketing the class declaration with a predefined limit to the string size.

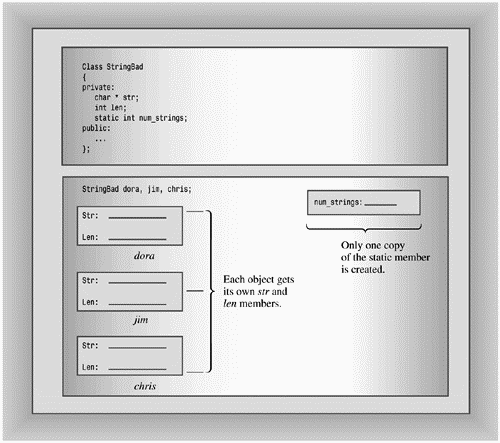

Second, the definition declares the num_strings member as belonging to the static storage class. A static class member has a special property: A program creates only one copy of a static class variable regardless of the number of objects created. That is, a static member is shared among all objects of that class, much as a phone number might be shared among all members of a family. If, say, you create 10 StringBad objects, there would be 10 str members and 10 len members, but just one shared num_strings member (see Figure 12.1). This is convenient for data that should be private to a class but that should have the same value for all class objects. The num_strings member, for example, is intended to keep track of the number of objects created.

By the way, we've used the num_strings member as a convenient means of illustrating static data members and as a device to point out potential programming problems. In general, a string class doesn't need such a member.

Let's look at the implementation of the class methods in Listing 12.2. There, you'll see how these two points (using a pointer and using a static member) are handled.

Listing 12.2 strngbad.cpp

// strngbad.cpp -- StringBad class methods
#include <iostream>
#include <cstring>                 // string.h for some
#include "strngbad.h"
using namespace std;

// initializing static class member
int StringBad::num_strings = 0;

// class methods

// construct StringBad from C string
StringBad::StringBad(const char * s)
{
    len = strlen(s);               // set size
    str = new char[len + 1];       // allot storage
    strcpy(str, s);                // initialize pointer
    num_strings++;                 // set object count
    cout << num_strings << ": \ "" << str
         << "\ " object created\ n"; // For Your Information
}

StringBad::StringBad()             // default constructor
{
    len = 4;
    str = new char[4];
    strcpy(str, "C++");            // default string
    num_strings++;
    cout << num_strings << ": \ "" << str
         << "\ " default object created\ n";  // FYI
}

StringBad::~StringBad()           // necessary destructor
{
    cout << "\ "" << str << "\ " object deleted, ";    // FYI
    --num_strings;                    // required
    cout << num_strings << " left\ n"; // FYI
    delete [] str;                    // required
}

ostream & operator<<(ostream & os, const StringBad & st)
{
    os << st.str;
    return os;
}

First, notice the following statement from Listing 12.2:

int StringBad::num_strings = 0;

This statement initializes the static num_strings member to zero. Note that you cannot initialize a static member variable inside the class declaration. That's because the declaration is a description of how memory is to be allocated, but it doesn't allocate memory. You allocate and initialize memory by creating an object using that format. In the case of a static class member, you initialize the static member independently with a separate statement outside the class declaration. That's because the static class member is stored separately rather than as part of an object. Note that the initialization statement gives the type and uses the scope operator.

int StringBad::num_strings = 0;

This initialization goes in the methods file, not in the class declaration file. That's because the class declaration is in a header file, and a program may include a header file in several other files. That would result in multiple copies of the initialization statement, which is an error.

The exception (Chapter 10, "Objects and Classes") to the noninitialization of a static data member inside the class declaration is if the static data member is a const of integral or enumeration type.

Next, notice that each constructor contains the expression num_strings++. This ensures that each time a program creates a new object, the shared variable num_strings increases by one, keeping track of the total number of String objects. Also, the destructor contains the expression --num_strings. Thus, the String class also keeps track of deleted objects, keeping the value of the num_strings member current.

Now look at the first constructor, which initializes a String object with a regular C string:

StringBad::StringBad(const char * s)
{
    len = strlen(s);               // set size
    str = new char[len + 1];       // allot storage
    strcpy(str, s);                // initialize pointer
    num_strings++;                 // set object count
    cout << num_strings << ": \ "" << str
         << "\ " object created\ n"; // For Your Information
}

The class str member, recall, is just a pointer, so the constructor has to provide the memory for holding a string. You can pass a string pointer to the constructor when you initialize an object:

String boston("Boston");

The constructor then must allocate enough memory to hold the string, and then copy the string to that location. Let's go through the process step-by-step.

First, the function initializes the len member, using the strlen() function to compute the length of the string. Next, it uses new to allocate sufficient space to hold the string, and then assigns the address of the new memory to the str member. (Recall that strlen() returns the length of a string not counting the terminating null character, so the constructor adds 1 to len to allow space for the string including the null character.)

Next, the constructor uses strcpy() to copy the passed string into the new memory. Then it updates the object count. Finally, to help us monitor what's going on, the constructor displays the current number of objects and the string stored in the object. This feature will come in handy later, when we deliberately lead the String class into trouble.

To understand this approach, you should realize that the string is not stored in the object. The string is stored separately, in heap memory, and the object merely stores information saying where to find the string.

Note that you do not do this:

str = s;  // not the way to go

This merely stores the address without making a copy of the string.

The default constructor behaves similarly, except that it provides a default string of "C++".

The destructor contains the example's most important addition to our handling of classes:

StringBad::~StringBad()                     // necessary destructor
{
    cout << "\ "" << str << "\ " object deleted, ";    // FYI
    --num_strings;                    // required
    cout << num_strings << " left\ n"; // FYI
    delete [] str;                    // required
}

The destructor begins by announcing when the destructor gets called. This part is informative, but not essential. The delete statement, however, is vital. Recall that the str member points to memory allocated with new. When a StringBad object expires, the str pointer expires. But the memory str pointed to remains allocated unless you use delete to free it. Deleting an object frees the memory occupied by the object itself, but it does not automatically free memory pointed to by pointers that were object members. For that, you must use the destructor. By placing the delete statement in the destructor, you ensure that the memory allocated with new by a constructor is freed when the object expires.

Listing 12.3, taken from a program under development at The Daily Vegetable, illustrates when and how the Stringbad constructors and destructors work. Remember to compile Listing 12.2 along with Listing 12.3.

Listing 12.3 vegnews.cpp

// vegnews.cpp -- using new and delete with classes
// compile with strngbad.cpp
#include <iostream>
using namespace std;
#include "strngbad.h"

void callme1(StringBad &);  // pass by reference
void callme2(StringBad);    // pass by value

int main()
{
    StringBad headline1("Celery Stalks at Midnight");
    StringBad headline2("Lettuce Prey");
    StringBad sports("Spinach Leaves Bowl for Dollars");
    cout << "headline1: " << headline1 << endl;
    cout << "headline2: " << headline2 << endl;
    cout << "sports: " << sports << endl;
    callme1(headline1);
    cout << "headline1: " << headline1 << endl;
    callme2(headline2);
    cout << "headline2: " << headline2 << endl;
    cout << "Initialize one object to another:\ n";
    StringBad sailor = sports;
    cout << "sailor: " << sailor << endl;
    cout << "Assign one object to another:\ n";
    StringBad knot;
    knot = headline1;
    cout << "knot: " << knot << endl;
    cout << "End of main()\ n";

    return 0;
}

void callme1(StringBad & rsb)
{
    cout << "String passed by reference:\ n";
    cout << "    \ "" << rsb << "\ "\ n";
}

void callme2(StringBad sb)
{
    cout << "String passed by value:\ n";
    cout << "    \ "" << sb << "\ "\ n";
}

Here is the output produced after compiling the program with the Borland C++ 5.5 command-line compiler:

1: "Celery Stalks at Midnight" object created
2: "Lettuce Prey" object created
3: "Spinach Leaves Bowl for Dollars" object created
headline1: Celery Stalks at Midnight
headline2: Lettuce Prey
sports: Spinach Leaves Bowl for Dollars
String passed by reference:
    "Celery Stalks at Midnight"
headline1: Celery Stalks at Midnight
String passed by value:
    "Lettuce Prey"
"Lettuce Prey" object deleted, 2 left
headline2: Dûº
Initialize one object to another:
sailor: Spinach Leaves Bowl for Dollars
Assign one object to another:
3: "C++" default object created
knot: Celery Stalks at Midnight
End of main()
"Celery Stalks at Midnight" object deleted, 2 left
"Spinach Leaves Bowl for Dollars" object deleted, 1 left
"Spinach Leaves Bowl for Doll8" object deleted, 0 left
"@g" object deleted, -1 left
"-|" object deleted, -2 left

Program Notes

The program starts out fine, but it staggers to a strange and ultimately disastrous conclusion. Let's begin by looking at the good parts. The constructor announces it has created three StringBad objects, numbering them, and the program lists them using the overloaded >> operator:

1: "Celery Stalks at Midnight" object created
2: "Lettuce Prey" object created
3: "Spinach Leaves Bowl for Dollars" object created
headline1: Celery Stalks at Midnight
headline2: Lettuce Prey
sports: Spinach Leaves Bowl for Dollars

Then the program passes headline1 to the callme1() function and redisplays headline1 after the call. Here's the code:

callme1(headline1);
cout << "headline1: " << headline1 << endl;

And here's the result:

String passed by reference:
    "Celery Stalks at Midnight"
headline1: Celery Stalks at Midnight

This section of code seems to have worked fine, too.

But then the program executes the following code:

callme2(headline2);
cout << "headline2: " << headline2 << endl;

Here, callme2() passes headline2 by value instead of by reference, and the result indicates a serious problem!

String passed by value:
    "Lettuce Prey"
"Lettuce Prey" object deleted, 2 left
headline2: Dûº

First, somehow passing headline2 as a function argument caused the destructor to be called. Second, although passing by value is supposed to protect the original argument from change, the function seems to have messed up the original string beyond recognition.

Even worse, look at the end of the output, when the destructor gets called automatically for each of the objects created earlier:

End of main()
"Celery Stalks at Midnight" object deleted, 2 left
"Spinach Leaves Bowl for Dollars" object deleted, 1 left
"Spinach Leaves Bowl for Doll8" object deleted, 0 left
"@g" object deleted, -1 left
"-|" object deleted, -2 left

Because automatic storage objects are deleted in an order opposite to that in which they are created, the first three objects deleted are knots, sailor, and sport. The knots and sailor deletions look okay, but for sport, Dollars has become Doll8. The only thing the program did with sport was use it to initialize sailor, but that act appears to have altered sport. And the last two objects deleted, headline2 and headline1, are unrecognizable. Something has messed up these strings before they were deleted. Also, the counting is bizarre. How can there be -2 objects left?

Actually, the peculiar counting is a clue. Every object is constructed once and destroyed once, so the number of constructor calls should equal the number of destructor calls. Since the object count (num_strings) was decremented two extra times more than it was incremented, two objects must have been created using a constructor that didn't increment num_strings. The class definition declared and defined two constructors (both of which increment num_strings), but it turns out that the program used three. For example, consider this line:

StringBad sailor = sports;

What constructor is used here? Not the default constructor, and not the constructor with a const char * parameter. Remember, initialization using this form is another syntax for the following:

StringBad sailor = StringBad(sports); //constructor using sports

Because sports is type StringBad, a matching constructor could have this prototype:

StringBad(const StringBad &);

And it turns out the compiler automatically generates this constructor (called a copy constructor because it makes a copy of an object) if you initialize one object to another. The automatic version would not know about updating the num_strings static variable, so it would mess up the counting scheme. Indeed, all the problems exhibited by this example stem from member functions that the compiler generates automatically, so let's look at that topic now.

Implicit Member Functions

The problems with the StringBad class stem from implicit member functions that are defined automatically and whose behavior is inappropriate to this particular class design. In particular, C++ automatically provides the following member functions:

• A default constructor if you define no constructors

• A copy constructor if you don't define one

• An assignment operator if you don't define one

• A default destructor if you don't define one

• An address operator if you don't define one

It turns out that the implicit copy constructor and the implicit assignment operator caused the StringBad class problems.

The implicit address operator returns the address of the invoking object (that is, the value of the this pointer). That's fine for our purposes, and we won't discuss this member function further. The default destructor does nothing, and we won't discuss it, either, other than pointing out the class already has provided a substitute for it. But the others do warrant more discussion.

The Default Constructor

If you fail to provide any constructors at all, C++ provides you with a default constructor. For example, suppose you define a Klunk class and omit any constructors. Then the compiler will supply the following default:

Klunk::Klunk() { }   // implicit default constructor

That is, it supplies a constructor that takes no arguments and that does nothing. It's needed because creating an object always invokes a constructor:

Klunk lunk;  // invokes default constructor

The default constructor makes lunk like an ordinary automatic variable; that is, its value at initialization is unknown.

After you define any constructor, C++ doesn't bother to define a default constructor. If you want to create objects that aren't initialized explicitly, or if you want to create an array of objects, you then have to define a default constructor explicitly. It's the constructor with no arguments, but you can use it to set particular values:

Klunk::Klunk()  // explicit default constructor
{
    klunk_ct = 0;
    ...
}

A constructor with arguments still can be a default constructor if all its arguments have default values. For example, the Klunk class could have the following inline constructor:

Klunk(int n = 0) { klunk_ct = n; }

However, you can have only one default constructor. That is, you can't do this:

Klunk() { klunk_ct = 0 }
Klunk(int n = 0) { klunk_ct = n; }    // ambiguous

The Copy Constructor

The copy constructor is used to copy an object to a newly created object. That is, it's used during initialization, not during ordinary assignment. The copy constructor for a class has this prototype:

Class_name(const Class_name &);

Note that it takes a constant reference to a class object as its argument. For example, the copy constructor for the String class would have this prototype:

StringBad(const StringBad &);

You must know two things about the copy constructor: when it's used and what it does.

When the Copy Constructor Is Used

The copy constructor is invoked whenever a new object is created and initialized to an existing object of the same kind. This happens in several situations. The most obvious situation is when you explicitly initialize a new object to an existing object. For example, given that motto is a StringBad object, the following four defining declarations invoke the copy constructor:

StringBad ditto(motto);  // calls StringBad(const StringBad &)
StringBad metoo = motto; // calls StringBad(const StringBad &)
StringBad also = StringBad(motto);
                         // calls StringBad(const StringBad &)
StringBad * pStringBad = new StringBad(motto);
                         // calls StringBad(const StringBad &)

Depending upon the implementation, the middle two declarations may use the copy constructor directly to create metoo and also, or they may use the copy constructor to generate temporary objects whose contents are then assigned to metoo and also. The last example initializes an anonymous object to motto and assigns the address of the new object to the pstring pointer.

Less obviously, the compiler uses the copy constructor whenever a program generates copies of an object. In particular, it's used when a function passes an object by value (like callme2() does in Listing 12.3) or when a function returns an object. Remember, passing by value means creating a copy of the original variable. The compiler also uses the copy constructor whenever it generates temporary objects. For example, a compiler might generate a temporary Vector object to hold an intermediate result when adding three Vector objects. Compilers will vary as to when they generate temporary objects, but all will invoke the copy constructor when passing objects by value and when returning them. In particular, the function call in Listing 12.3 invoked the copy constructor:

callme2(headline2);

The program uses the copy constructor to initialize sb, the formal StringBad-type parameter for the callme2() function.

By the way, the fact that passing an object by value involves invoking a copy constructor is a good reason for passing by reference instead. That saves the time of invoking the constructor and the space for storing the new object.

What the Copy Constructor Does

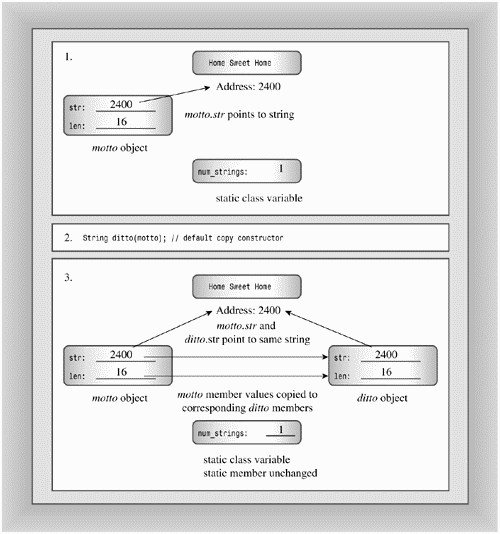

The default copy constructor performs a member-by-member copy of the nonstatic members (memberwise copying, also sometimes called shallow copying). Each member is copied by value. In Listing 12.3, the statement

StringBad sailor = sports;

amounts to the following (aside from the fact that it wouldn't compile because access to private members is not allowed):

StringBad sailor;
sailor.str = sports.str;
sailor.len = sports.len;

If a member is itself a class object, the copy constructor for that class is used to copy one member object to another. Static members, such as num_strings, are unaffected, for they belong to the class as a whole instead of to individual objects. Figure 12.2 illustrates the action of the implicit copy constructor.

Where We Went Wrong

We are now in a position to understand the twofold weirdness of Listing 12.3. The first weirdness is that the program output indicates two more objects destroyed than constructed. The explanation is that the program did create two additional objects using the default copy constructor. The copy constructor was used to initialize the formal parameter of callme2() when that function was called, and it was used to initialize the object sailor to sports. The default copy constructor doesn't vocalize its activities, so it didn't announce its creations, and it didn't increment the num_strings counter. The destructor, however, does update the count, and it's invoked upon the demise of all objects, regardless of how they were constructed. This weirdness is a problem, for it means the program doesn't keep an accurate object count. The solution is to provide an explicit copy constructor that does update the count:

String::String(const String & s)
{
    num_strings++;
    ...// important stuff to go here
}

The second weirdness is the most subtle and dangerous of the bunch. One symptom is the garbled string contents:

headline2: Dûº

Another system is that many compiled versions of the program abort. CodeWarrior 6.0, for example, issues an "Unhandled exception" message. Microsoft Visual C++ 6.0 (debug mode) displayed an error message window saying that a Debug Assertion failed. Other systems might provide different messages or even no message, but the same evil lurks within the programs.

The cause is that the implicit copy constructor copies by value. Consider Listing 12.3, for example. The effect, recall, is this:

sailor.str = sport.str;

This does not copy the string; it copies the pointer to a string. That is, after sailor is initialized to sports, you wind up with two pointers to the same string. That's not a problem when the operator<<() function uses the pointer to display the string. It is a problem when the destructor is called. The StringBad destructor, recall, frees the memory pointed to by the str pointer. The effect of destroying sailor is this:

delete [] sailor.str;    // delete the string that ditto.str points to

The sailor.str pointer points to "Spinach Leaves Bowl for Dollars" because it was assigned the value of sports.str, which pointed to that string. So the delete statement frees the memory occupied by the string "Spinach Leaves Bowl for Dollars".

Next, the effect of destroying sports is this:

delete [] sports.str;   // effect is undefined

Here, sports.str points to the same memory location that has already been freed by the destructor for sailor, and this results in undefined, possibly harmful, behavior. In our case, the program produces mangled strings, which usually is a sign of memory mismanagement.

Fixing the Problem with an Explicit Copy Constructor

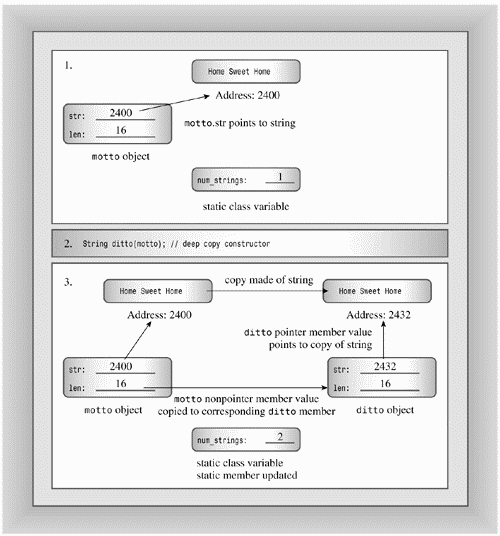

The cure is to make a deep copy. That is, rather than just copying the address of the string, the copy constructor should duplicate the string and assign the address of the duplicate to the str member. That way, each object gets its own string rather than referring to another object's string. And each call of the destructor frees a different string rather than having duplicate attempts at freeing the same string. Here's how you can code the String copy constructor:

StringBad::StringBad(const StringBad & st)
{
    num_strings++;             // handle static member update
    len = st.len;              // same length
    str = new char [len + 1];  // allot space
    strcpy(str, st.str);       // copy string to new location
    cout << num_strings << ": \ "" << str
         << "\ " object created\ n"; // For Your Information
}

What makes defining the copy constructor necessary is the fact that some class members were new-initialized pointers to data rather than the data themselves. Figure 12.3 illustrates deep copying.

The Assignment Operator

Not all the problems in Listing 12.3 can be blamed on the default copy constructor; we have to look at the default assignment operator, too. Just as ANSI C allows structure assignment, C++ allows class object assignment. It does so by automatically overloading the assignment operator for a class. This operator has the following prototype:

Class_name & Class_name::operator=(const Class_name &);

That is, it takes and returns a reference to an object of the class. For example, here's the prototype for the StringBad class:

StringBad & StringBad::operator=(const StringBad &);

When the Assignment Operator Is Used

The overloaded assignment operator is used when you assign one object to another existing object:

StringBad headline1("Celery Stalks at Midnight");
...
StringBad knot;
knot = headline1;   // assignment operator invoked

The assignment operator is not necessarily used when initializing an object:

StringBad metoo = knot; // use copy constructor

Here metoo is a newly created object being initialized to knot's values; hence, the copy constructor is used. However, as mentioned before, implementations have the option of handling this statement in two steps: using the copy constructor to create a temporary object, and then using assignment to copy the values to the new object. That is, initialization always invokes the copy constructor, and forms using the = operator may also invoke the assignment operator.

What the Assignment Operator Does

Like the copy constructor, the implicit implementation of the assignment operator performs a member-to-member copy. If a member is itself an object of some class, the program uses the assignment operator defined for that class to do the copying for that particular member. Static data members are unaffected.

Where We Went Wrong

Listing 12.3 assigned headline1 to knot:

knot = headline1;

When the destructor was called for knot, it displayed this message:

"Celery Stalks at Midnight" object deleted, 2 left

When the destructor was called for headline1, it displayed this message:

"-|" object deleted, -2 left

(Some implementations abort before getting this far.)

We see the same problem that the implicit copy constructor caused: corrupted data. Once again, the problem is memberwise-copying, which causes both headline1.str and knot.str to point to the same address. Thus, when the destructor is called for knot, it deletes the string "Celery Stalks at Midnight", and when it's called for headline1, it attempts to delete the previously deleted string. As mentioned earlier, the effect of attempting to delete previously deleted data is undefined, so it may change the memory contents, and it may cause a program to abort. As some like to point out, if the effect of a particular operation is undefined, your compiler can do anything it wants, including displaying the Declaration of Independence or freeing your hard disk of unsightly files.

Fixing Assignment

The solution for the problems created by an inappropriate default assignment operator is to provide your own assignment operator definition, one that makes a deep copy. The implementation is similar to that of the copy constructor, but there are some differences.

By returning an object, the function can emulate the way ordinary assignment for built-in types can be chained. That is, if A, B, and C are StringBad objects, you can write the following:

A = B = C;

In function notation, this becomes the following:

A.operator=(B.operator=);

Thus, the return value of B.operator= becomes the argument of the A.operator=() function. Because the return value is a reference to a String object, it is the correct argument type.

Here's how you could write an assignment operator for the StringBad class:

StringBad & StringBad::operator=(const StringBad & st)
{
    if (this == &st)           // object assigned to itself
        return *this;          // all done
    delete [] str;             // free old string
    len = st.len;
    str = new char [len + 1];  // get space for new string
    strcpy(str, st.str);       // copy the string
    return *this;              // return reference to invoking object
}

First, the code checks for self-assignment. It does so by seeing if the address of the right-hand side of the assignment (&s) is the same as the address of the receiving object (this). If so, the program returns *this and terminates. You may recall from Chapter 10 that the assignment operator is one of the operators that can be overloaded only by a class member function.

Otherwise, the function proceeds to free the memory that str pointed to. The reason for this is that shortly thereafter str will be assigned the address of a new string. If you don't first apply the delete operator, the previous string would remain in memory. Because the program no longer has a pointer to the old string, that memory would be wasted.

Next, the program proceeds like the copy constructor, allocating enough space for the new string, then copying the string from the right-hand object to the new location.

When it is finished, the program returns *this and terminates.

Assignment does not create a new object, so you don't have to adjust the value of the static data member num_strings.

If you add the copy constructor and the assignment operator described previously to the StringBad class, you'll find it clears up all the problems. Here, for example, are the last few lines of output after these changes have been made:

End of main()
"Celery Stalks at Midnight" object deleted, 4 left
"Spinach Leaves Bowl for Dollars" object deleted, 3 left
"Spinach Leaves Bowl for Dollars" object deleted, 2 left
"Lettuce Prey" object deleted, 1 left
"Celery Stalks at Midnight" object deleted, 0 left

The object counting is correct now, and none of the strings have been mangled.

The New, Improved String Class

Now that we are a bit wiser, let's revise the StringBad class, renaming it String. First, we'll add the copy constructor and the assignment operator we just discussed so that the class correctly manages the memory used by class objects. Next, now that we've seen when objects are constructed and destroyed, we can mute the class constructors and destructors so that they no longer announce each time they are used. Also, now that we're no longer watching the constructors at work, let's simplify the default constructor so that it constructs an empty string instead of "C++".

Next, let's add a few capabilities to the class. A useful String class would incorporate all the functionality of the standard cstring library of string functions, but we'll add only enough to show the way. (Keep in mind that this String class is an illustrative example and that the C++ standard string class is much more extensive.) In particular, we'll add the following methods:

int length () const { return len; }
friend bool operator<(const String &st, const String &st2);
friend bool operator>(const String &st1, const String &st2);
friend bool operator==(const String &st, const String &st2);
friend operator>>(istream & is, String & st);
char & operator[](int i);
const char & operator[](int i) const;
static int HowMany();

The first new method returns the length of the stored string. The next three friend functions allow you to compare strings. The operator>>() function provides simple input capabilities. The two operator[]() functions provide array-notation access to individual characters in a string. The static class method HowMany() will complement the static class data member num_strings. Let's look at some details.

Revised Default Constructor

The new default constructor merits notice. It will look like this:

String::String()
{
    len = 0;
    str = new char[1];
    str[0] = '\ 0';               // default string
}

You might wonder why the code does this:

str = new char[1];

and not this:

str = new char;

Both forms allocate the same amount of memory. The difference is that the first form is compatible with the class destructor and the second is not. The destructor, recall, contains this code:

delete [] str;

Using delete with brackets is compatible with pointers initialized by using new with brackets and with the null pointer. So another possibility would have been to replace

str = new char[1];
str[0] = '\ 0';               // default string

with this:

str = 0; // sets str to the null pointer

The effect of using delete [] with any pointers initialized any other way is undefined:

char words[15] = "bad idea";
char * p1= words;
char * p2 = new char;
char * p3;
delete [] p1; // undefined, so don't do it
delete [] p2; // undefined, so don't do it
delete [] p3; // undefined, so don't do it

Comparison Members

Three of the methods perform comparisons. The operator<() function returns true if the first string comes before the second string alphabetically (or, more precisely, in the machine collating sequence). The simplest way to implement the string comparison functions is to use the standard strcmp() function, which returns a negative value if its first argument precedes the second alphabetically, zero if the strings are the same, and a positive value if the first follows the second alphabetically. So, you can use strcmp() like this:

bool operator<(const String &st1, const String &st2)
{
    if (strcmp(st1.str, st2.str) > 0)
        return true;
    else
        return false;
}

Since the built-in > operator already returns a type bool value, you can simplify the code further to this:

bool operator<(const String &st1, const String &st2)
{
    return (strcmp(st1.str, st2.str) < 0);
}

Similarly, you can code the other two comparison functions like this:

bool operator>(const String &st1, const String &st2)
{
    return st2.str < st1.str;
}
bool operator==(const String &st1, const String &st2)
{
    return (strcmp(st1.str, st2.str) == 0);
}

The first definition expresses the > operator in terms of the < operator and would be a good choice for an inline function.

Making the comparison functions friends facilitates comparisons between String objects and regular C strings. For example, suppose answer is a String object and that you have the following code:

if ("love" == answer)

This gets translated to the following:

if (operator==("love", answer))

The compiler then uses one of the constructors to convert the code, in effect, to this:

if (operator==(String("love"), answer))

And this matches the prototype.

Accessing Characters with Bracket Notation

With a standard C-style string, you can use brackets to access individual characters:

char city[40] = "Amsterdam";
cout << city[0] << endl; // display the letter A

In C++ the two bracket symbols constitute a single operator, the bracket operator, and you can overload this operator with a method called operator[](). Typically, a binary C++ operator (one with two operands) puts the operator between the two operands, as in 2 + 5. But the bracket operator places one operand in front of the first bracket and the other operand between the two brackets. Thus, in the expression city[0], city is the first operand, [] is the operator, and 0 is the second operand.

Suppose that opera is a String object:

String opera("The Magic Flute");

If you use the expression opera[4], C++ will look for a method with this name and signature:

operator[](int i)

If it finds a matching prototype, the compiler will replace the expression opera[4] with this function call:

opera.operator[](4)

The opera object invokes the method, and the array subscript 4 becomes the function argument.

Here's a simple implementation:

char & String::operator[](int i)
{
    return str[i];
}

With this definition, the statement

cout << opera[4];

becomes this:

cout << opera.operator[4];

The return value is opera.str[4], or the character 'M'. So the public method gives access to private data.

Declaring the return type as type char & allows you to assign values to a particular element. For example, you can do the following:

String means("might");
means[0] = 'r';

The second statement is converted to an overloaded operator function call:

means.operator[][0] = 'r';

This assigns 'r' to the method's return value. But the function returns a reference to means.str[0], making the code equivalent to

means.str[0] = 'r';

This last line of code violates private access, but, because operator[]() is a class method, it is allowed to alter the array contents. The net effect is that "might" becomes "right".

Suppose you have a constant object:

const String answer("futile");

Then, if the only definition for operator[]() available is the one you've just seen, the following code will be labeled an error:

cout << answer[1];  // compile-time error

The reason is that answer is const and the method doesn't promise not to alter data. (In fact, sometimes the method's job is to alter data, so it can't promise not to.)

However, C++ distinguishes between const and non-const function signatures when overloading, so we can provide a second version of operator[]() that is used just by const String objects:

// for use with const String objects
const char & String::operator[](int i) const
{
    return str[i];
}

With the definitions you have read-write access to regular String objects and read-only access to const String data:

String text("Once upon a time");
const String answer("futile");
cout << text[1];    // ok, uses non-const version of operator[]()
cout << answer[1];  // ok, uses const version of operator[]()
cout >> text[1];    // ok, uses non-const version of operator[]()
cin >> answer[1];   // compile-time error

Static Class Member Functions

It's also possible to declare a member function as being static. (The keyword static should appear in the function declaration but not in the function definition, if the latter is separate.) This has two important consequences.

First, a static member function doesn't have to be invoked by an object; in fact, it doesn't even get a this pointer to play with. If the static member function is declared in the public section, it can be invoked using the class name and the scope resolution operator. We can give the String class a static member function called HowMany() with the following prototype/definition in the class declaration:

static int HowMany() { return num_strings; }

It could be invoked like this:

int count = String::HowMany();  // invoking a static member function

The second consequence is that, because a static member function is not associated with a particular object, the only data members it can use are the static data members. For example, the HowMany() static method can access the num_strings static member, but not str or len.

Similarly, a static member function can be used to set a class-wide flag that controls how some aspect of the class interface behaves. For example, it controls the formatting used by a method that displays class contents.

Further Assignment Operator Overloading

Before looking at the new listings, let's consider another matter. Suppose you want to copy an ordinary string to a String object. For example, suppose you use getline() to read a string and you want to place it in a String object. The class methods already allow you to do the following:

String name;
char temp[40];
cin.getline(temp, 40);
name = temp;  // use constructor to convert type

However, this might not be a satisfactory solution if you have to do it often. To see why, let's review how the final statement works:

The simplest way to make the process more efficient is to overload the assignment operator so that it works directly with ordinary strings. This removes the extra steps of creating and destroying a temporary object. Here's one possible implementation:

String & String::operator=(const char * s)
{
    delete [] str;
    len = strlen(s);
    str = new char[len + 1];
    strcpy(str, s);
    return *this;
}

As usual, you must deallocate memory formerly managed by str and allocate enough memory for the new string.

Listing 12.4 shows the revised class declaration. In addition to the changes already mentioned, it defines a constant CINLIM that will be used in implementing operator>>().

Listing 12.4 string1.h

// string1.h -- fixed and augmented string class definition
#include <iostream>
using namespace std;
#ifndef STRING1_H_
#define STRING1_H_
class String
{
private:
    char * str;             // pointer to string
    int len;                // length of string
    static int num_strings; // number of objects
    static const int CINLIM = 80;  // cin input limit
public:
// constructors and other methods
    String(const char * s); // constructor
    String();               // default constructor
    String(const String &); // copy constructor
    ~String();              // destructor
    int length () const { return len; }
// overloaded operator methods
    String & operator=(const String &);
    String & operator=(const char *);
    char & operator[](int i);
    const char & operator[](int i) const;
// overloaded operator friends
    friend bool operator<(const String &st, const String &st2);
    friend bool operator>(const String &st1, const String &st2);
    friend bool operator==(const String &st, const String &st2);
    friend ostream & operator<<(ostream & os, const String & st);
    friend istream & operator>>(istream & is, String & st);
// static function
    static int HowMany();
} ;
#endif

enum {CINLIM = 90} ;

Next, Listing 12.5 presents the revised method definitions.

Listing 12.5 string1.cpp

// string1.cpp -- String class methods
#include <iostream>
#include <cstring>                 // string.h for some
#include "string1.h"
using namespace std;

// initializing static class member

int String::num_strings = 0;

// static method
int String::HowMany()
{
    return num_strings;
}

// class methods
String::String(const char * s)     // construct String from C string
{
    len = strlen(s);               // set size
    str = new char[len + 1];       // allot storage
    strcpy(str, s);                // initialize pointer
    num_strings++;                 // set object count
}

String::String()                   // default constructor
{
    len = 4;
    str = new char[1];
    str[0] = '\ 0';                 // default string
    num_strings++;
}

String::String(const String & st)
{
    num_strings++;             // handle static member update
    len = st.len;              // same length
    str = new char [len + 1];  // allot space
    strcpy(str, st.str);       // copy string to new location
}

String::~String()                     // necessary destructor
{
    --num_strings;                    // required
    delete [] str;                    // required
}

// overloaded operator methods

    // assign a String to a String
String & String::operator=(const String & st)
{
    if (this == &st)
        return *this;
    delete [] str;
    len = st.len;
    str = new char[len + 1];
    strcpy(str, st.str);
    return *this;
}

    // assign a C string to a String
String & String::operator=(const char * s)
{
    delete [] str;
    len = strlen(s);
    str = new char[len + 1];
    strcpy(str, s);
    return *this;
}
    // read-write char access for non-const String
char & String::operator[](int i)
{
    return str[i];
}

    // read-only char access for const String
const char & String::operator[](int i) const
{
    return str[i];
}

// overloaded operator friends

bool operator<(const String &st1, const String &st2)
{
    return (strcmp(st1.str, st2.str) < 0);
}

bool operator>(const String &st1, const String &st2)
{
    return st2.str < st1.str;
}

bool operator==(const String &st1, const String &st2)
{
    return (strcmp(st1.str, st2.str) == 0);
}

    // simple String output
ostream & operator<<(ostream & os, const String & st)
{
    os << st.str;
    return os;
}

    // quick and dirty String input
istream & operator>>(istream & is, String & st)
{
    char temp[String::CINLIM];
    is.get(temp, String::CINLIM);
    if (is)
        st = temp;
    while (is && is.get() != '\ n')
        continue;
    return is;
}

The overloaded >> operator provides a simple way to read a line of keyboard input into a String object. It assumes an input line of String::CINLIM characters or fewer and discards any characters beyond that limit. Keep in mind that the value of an istream object in an if condition evaluates to false if input fails for some reason, such as encountering an end-of-file condition, or, in the case of get(char *, int), reading an empty line.

Let's exercise the class with a short program that lets you enter a few strings. The program has the user enter sayings, puts the strings into String objects, displays them, and reports which string is the shortest and which comes first alphabetically. Listing 12.6 shows the program.

Listing 12.6 sayings1.cpp

// sayings1.cpp -- uses expanded string class
// compile with string1.cpp
#include <iostream>
using namespace std;
#include "string1.h"
const int ArSize = 10;
const int MaxLen =81;
int main()
{
    String name;
    cout <<"Hi, what's your name?\ n>> ";
    cin >> name;

    cout << name << ", please enter up to " << ArSize
        << " short sayings <empty line to quit>:\ n";
    String sayings[ArSize];     // array of objects
    char temp[MaxLen];          // temporary string storage
    int i;
    for (i = 0; i < ArSize; i++)
    {
        cout << i+1 << ": ";
        cin.get(temp, MaxLen);
        while (cin && cin.get() != '\ n')
            continue;
        if (!cin || temp[0] == '\ 0')    // empty line?
            break;              // i not incremented
        else
            sayings[i] = temp;  // overloaded assignment
    }
    int total = i;              // total # of lines read

    cout << "Here are your sayings:\ n";
    for (i = 0; i < total; i++)
        cout << sayings[i][0] << ": " << sayings[i] << "\ n";

    int shortest = 0;
    int first = 0;
    for (i = 1; i < total; i++)
    {
        if (sayings[i].length() < sayings[shortest].length())
            shortest = i;
        if (sayings[i] < sayings[first])
            first = i;
    }
    cout << "Shortest saying:\ n" << sayings[shortest] << "\ n";
    cout << "First alphabetically:\ n" << sayings[first] << "\ n";
    cout << "This program used "<< String::HowMany()
         << " String objects. Bye.\ n";

    return 0;
}

if (!cin || temp[0] == '\ 0')    // empty line?
    break;                      // i not incremented

The program asks the user to enter up to ten sayings. Each saying is read into a temporary character array and then copied to a String object. If the user enters a blank line, a break statement terminates the input loop. After echoing the input, the program uses the length() and operator<() member functions to locate the shortest string and the alphabetically earliest string. The program also uses the subscript operator ([]) to preface each saying with its initial character. Here's a sample run:

Hi, what's your name?
>> Misty Gutz
Misty Gutz, please enter up to 10 short sayings <empty line to quit>:
1: a fool and his money are soon parted
2: penny wise, pound foolish
3: the love of money is the root of much evil
4: out of sight, out of mind
5: absence makes the heart grow fonder
6: absinthe makes the hart grow fonder
7:
a: a fool and his money are soon parted
p: penny wise, pound foolish
t: the love of money is the root of much evil
o: out of sight, out of mind
a: absence makes the heart grow fonder
a: absinthe makes the hart grow fonder
Shortest saying:
penny wise, pound foolish
First alphabetically:
a fool and his money are soon parted
This program used 11 String objects. Bye.

Things to Remember When Using new in Constructors

By now you've noticed that you must take special care when using new to initialize pointer members of an object. In particular, you should do the following:

• If you use new to initialize a pointer member in a constructor, you should use delete in the destructor.

• The uses of new and delete should be compatible. Pair new with delete and new [] with delete [].

• If there are multiple constructors, all should use new the same way, either all with brackets or all without brackets. There's only one destructor, so all constructors have to be compatible to that destructor. It is, however, permissible to initialize a pointer with new in one constructor and with the null pointer (NULL or 0) in another constructor because it's okay to apply the delete operation (with or without brackets) to the null pointer.

• You should define a copy constructor that initializes one object to another by doing deep copying. Typically, the constructor would emulate the following example:

  String::String(const String & st)
  {
       num_strings++;            // handle static member update if necessary
       len = st.len;             // same length
       str = new char [len + 1]; // allot space
       strcpy(str, st.str);      // copy string to new location
  }


• In particular, the copy constructor should allocate space to hold the copied data, and it should copy the data, not just the address of the data. Also, it should update any static class members whose value would be affected by the process.

• You should define an assignment operator that copies one object to another by doing deep copying. Typically, the class method would emulate the following example:

  String & String::operator=(const String & st)
  {
       if (this == &st)            // object assigned to itself
            return *this;          // all done
       delete [] str;              // free old string
       len = st.len;
       str = new char [len + 1];   // get space for new string
       strcpy(str, st.str);        // copy the string
       return *this;               // return reference to invoking object
  }


• In particular, the method should check for self-assignment; it should free memory formerly pointed to by the member pointer; it should copy the data, not just the address of the data; and it should return a reference to the invoking object.

The following excerpt contains two examples of what not to do and one example of a good constructor:

String::String()
{
   str = "default string";     // oops, no new []
   len = strlen(str);
}

String::String(const char * s)
{
   len = strlen(s);
   str = new char;             // oops, no []
   strcpy(str, s);             // oops, no room
}

String::String(const String & st)
{
       len = st.len;
       str = new char[len + 1];      // good, allocate space
       strcpy(str, st.str);          // good, copy value
}

The first constructor fails to use new to initialize str. The destructor, when called for a default object, will apply delete to str. The result of applying delete to a pointer not initialized by new is undefined, but probably bad. Any of the following would be okay:

String::String()
{
    len = 0;
    str = new char[1];  // uses new with []
    str[0] = '\ 0';
}

String::String()
{
    len = 0;
    str = NULL;  // or the equivalent str = 0;
}

String::String()
{
    static const char * s = "C++";     // initialized just once
    len = strlen(s);
    str = new char[len + 1];           // uses new with []
    strcpy(str, s);
}

The second constructor in the original excerpt applies new, but it fails to request the correct amount of memory; hence, new will return a block containing space for but one character. Attempting to copy a longer string to that location is asking for memory problems. Also, the use of new without brackets is inconsistent with the correct form of the other constructors.

The third constructor is fine.

Finally, here's a destructor that won't work correctly with the previous constructors.

String::~String()
{
    delete str;      // oops, should be delete [] str;
}

The destructor uses delete incorrectly. Because the constructors request arrays of characters, the destructor should delete an array.

Using Pointers to Objects

C++ programs often use pointers to objects, so let's get in a bit of practice. Listing 12.6 used array index values to keep track of the shortest string and of the first string alphabetically. Another approach is to use pointers to point to the current leaders in these categories. Listing 12.7 implements this approach, using two pointers to String. Initially, the shortest pointer points to the first object in the array. Each time the program finds an object with a shorter string, it resets shortest to point to that object. Similarly, a first pointer tracks the alphabetically earliest string. Note that these two pointers do not create new objects; they merely point to existing objects. Hence they don't require using new to allocate additional memory.

For variety, the program uses a pointer that does keep track of a new object:

String * favorite = new String(sayings[choice]);

Here the pointer favorite provides the only access to the nameless object created by new. This particular syntax means to initialize the new String object by using the object sayings[choice]. That invokes the copy constructor because the argument type for the copy constructor (const String &) matches the initialization value (sayings[choice]). The program uses srand(), rand(), and time() to select a value for choice at random.

Class_name * pclass = new Class_name(value);

Class_name(Type_name);

Class_name(const Type_name &);

Class_name * ptr = new Class_name;

Listing 12.7 sayings2.cpp

// sayings2.cpp -- uses pointers to objects
// compile with string1.cpp
#include <iostream>
using namespace std;
#include <cstdlib>      // (or stdlib.h) for rand(), srand()
#include <ctime>        // (or time.h) for time()
#include "string1.h"
const int ArSize = 10;
const int MaxLen = 81;
int main()
{
    String name;
    cout <<"Hi, what's your name?\ n>> ";
    cin >> name;

    cout << name << ", please enter up to " << ArSize
        << " short sayings <empty line to quit>:\ n";
    String sayings[ArSize];
    char temp[MaxLen];               // temporary string storage
    int i;
    for (i = 0; i < ArSize; i++)
    {
        cout << i+1 << ": ";
        cin.get(temp, MaxLen);
        while (cin && cin.get() != '\ n')
            continue;
        if (!cin || temp[0] == '\ 0') // empty line?
            break;                   // i not incremented
        else
            sayings[i] = temp;       // overloaded assignment
    }
    int total = i;                   // total # of lines read

    cout << "Here are your sayings:\ n";
    for (i = 0; i < total; i++)
        cout << sayings[i] << "\ n";

// use pointers to keep track of shortest, first strings
    String * shortest = &sayings[0]; // initialize to first object
    String * first = &sayings[0];
    for (i = 1; i < total; i++)
    {
        if (sayings[i].length() < shortest->length())
            shortest = &sayings[i];
        if (sayings[i] < *first)     // compare values
            first = &sayings[i];     // assign address
    }
    cout << "Shortest saying:\ n" << * shortest << "\ n";
    cout << "First alphabetically:\ n" << * first << "\ n";

    srand(time(0));
    int choice = rand() % total;     // pick index at random
// use new to create, initialize new String object
    String * favorite = new String(sayings[choice]);
    cout << "My favorite saying:\ n" << *favorite << "\ n";
    delete favorite;
    cout << "Bye.\ n";
    return 0;
}

Here's a sample run:

Hi, what's your name?
>> Kirt Rood
Kirt Rood, please enter up to 10 short sayings <empty line to quit>:
1: a friend in need is a friend indeed
2: neither a borrower nor a lender be
3: a stitch in time saves nine
4: a niche in time saves stine
5: it takes a crook to catch a crook
6: cold hands, warm heart
7:
Here are your sayings:
a friend in need is a friend indeed
neither a borrower nor a lender be
a stitch in time saves nine
a niche in time saves stine
it takes a crook to catch a crook
cold hands, warm heart
Shortest saying:
cold hands, warm heart
First alphabetically:
a friend in need is a friend indeed
My favorite saying:
a stitch in time saves nine
Bye

Looking Again at new and delete

Note that the program uses new and delete on two levels. First, it uses new to allocate storage space for the name strings for each object that is created. This happens in the constructor functions, so the destructor function uses delete to free that memory. Because each string is an array of characters, the destructor uses delete with brackets. Thus, memory used to store the string contents is freed automatically when an object is destroyed. Second, the program uses new to allocate an entire object:

String * favorite = new String(sayings[choice]);

This allocates space not for the name string but for the object, that is, for the str pointer that holds the address of the string and for the len member. (It does not allocate space for the num_strings member because that is a static member stored separately from the objects.) Creating the object, in turn, calls the constructor, which allocates space for storing the string and assigns the string's address to str. The program then used delete to delete this object when it was finished with it. The object is a single object, so the program uses delete without brackets. Again, this frees only the space used to hold the str pointer and the len member. It doesn't free the memory used to hold the string str points to, but the destructor takes care of that final task. (See Figure 12.4.)

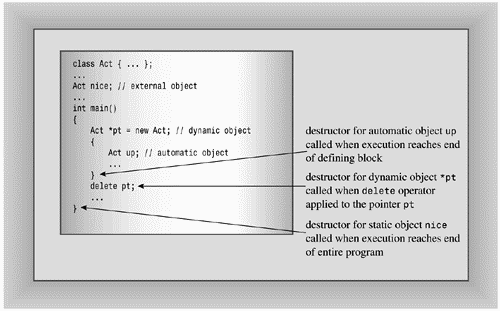

Let's emphasize again when destructors get called. (Also see Figure 12.4.)

Pointers and Objects Summary

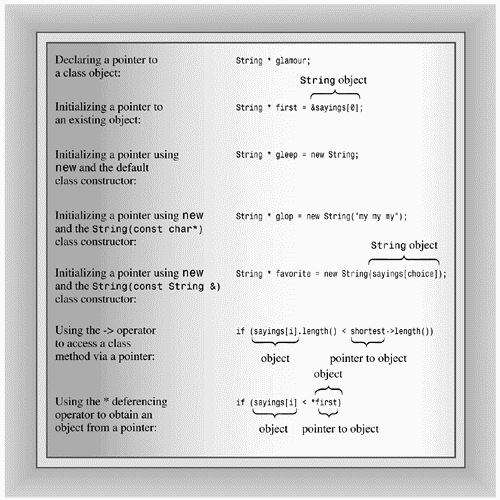

You should note several points about using pointers to objects. (Also see Figure 12.5.)

• You declare a pointer to an object using the usual notation:

  String * glamour;


• You can initialize a pointer to point to an existing object:

  String * first = &sayings[0];


• You can initialize a pointer using new; this creates a new object:

  String * favorite = new String(sayings[choice]);


  Also see Figure 12.6.

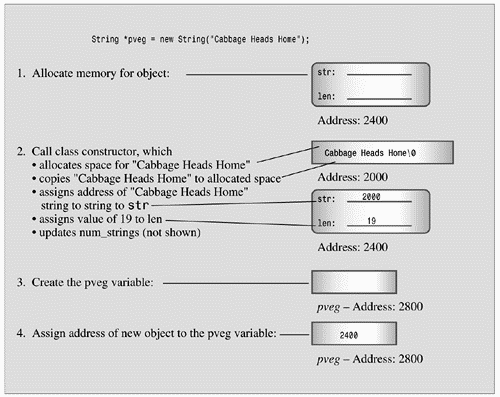

  Figure 12.6. Creating an object with new.



• Using new with a class invokes the appropriate class constructor to initialize the newly created object:

  // invokes default constructor
  String * gleep = new String;
  // invokes the String(const char *)constructor
  String * glop = new String("my my my");

  // invokes the String(const String &) constructor
  String * favorite = new String(sayings[choice]);


• You use the -> operator to access a class method via a pointer:

  if (sayings[i].length() < shortest->length())


• You apply the dereferencing operator (*) to a pointer to an object to obtain an object:

  if (sayings[i] < *first)    // compare object values
       first = &sayings[i];   // assign object address


Figure 12.6 summarizes the statement.

Reviewing Techniques

By now, you've encountered several programming techniques for dealing with various class-related problems, and you may be having trouble keeping track of all of them. So let's summarize several techniques and when they are used.

Overloading the << Operator

To redefine the << operator so that you use it with cout to display an object's contents, define a friend operator function of the following form:

ostream & operator<<(ostream & os, const c_name & obj)
{
    os << ... ;  // display object contents
    return os;
}

Here c_name represents the name of the class. If the class provides public methods that return the required contents, you can use those methods in the operator function and dispense with the friend status.

Conversion Functions

To convert a single value to a class type, create a class constructor of the following form of prototype:

c_name(type_name value);

Here c_name represents the class name, and type_name represents the name of the type that you want to convert.

To convert a class type to some other type, create a class member function having the following prototype:

operator type_name();

Although the function has no declared return type, it should return a value of the desired type.

Remember, use conversion functions with care. You can use the keyword explicit when declaring a constructor to prevent it from being used for implicit conversions.

Classes Whose Constructors Use new

Classes that use the new operator to allocate memory pointed to by a class member require several precautions in the design. (Yes, we summarized these precautions recently, but the rules are very important to remember, particularly because the compiler does not know them and, thus, won't catch your mistakes.)

Queue Simulation

Let's apply our improved understanding of classes to a programming problem. The Bank of Heather wants to open an automatic teller in the Food Heap supermarket. The Food Heap management is concerned about lines at the automatic teller interfering with traffic flow in the market and may want to impose a limit on the number of people allowed to line up at the teller machine. The Bank of Heather people want estimates of how long customers will have to wait in line. Your task is to prepare a program to simulate the situation so that management can see what the effect of the automatic teller might be.

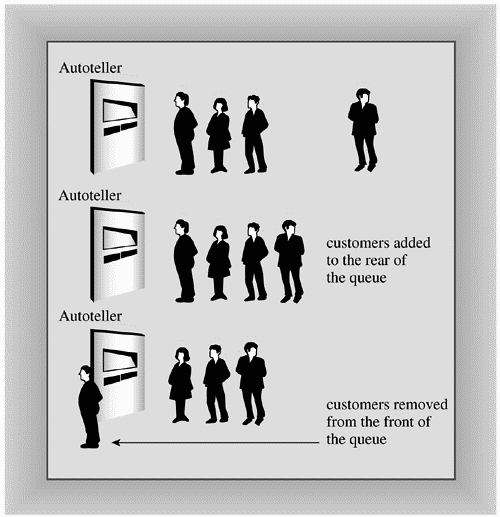

A rather natural way of representing the problem is to use a queue of customers. A queue is an abstract data type (ADT) that holds an ordered sequence of items. New items are added to the rear of the queue, and items can be removed from the front. A queue is a bit like a stack, except that a stack has additions and removals at the same end. This makes a stack a LIFO (last-in, first-out) structure, whereas the queue is a FIFO (first in, first out) structure. Conceptually, a queue is like a line at a checkout stand or automatic teller, so it's ideally suited to the task. So, one part of your project will be to define a Queue class. (In Chapter 16, you'll read about the Standard Template Library queue class, but you'll learn more developing your own.)

The items in the queue will be customers. A Bank of Heather representative tells you that, on the average, a third of the customers will take one minute to be processed, a third will take two minutes, and a third will take three minutes. Furthermore, customers arrive at random intervals, but the average number of customers per hour is fairly constant. Two more parts of your project will be to design a class representing customers and to put together a program simulating the interactions between customers and the queue (see Figure 12.7).

A Queue Class

The first order of business is designing a Queue class. First, let's list the attributes of the kind of queue we'll need:

• A queue holds an ordered sequence of items.

• A queue has a limit to the number of items it can hold.

• You should be able to create an empty queue.

• You should be able to check if a queue is empty.

• You should be able to check if a queue is full.

• You should be able to add an item to the end of a queue.

• You should be able to remove an item from the front of the queue.

• You should be able to determine the number of items in the queue.

As usual when designing a class, you'll need to develop a public interface and a private implementation.

The Interface

The queue attributes suggest the following public interface for a queue class:

class Queue
{
    enum {Q_SIZE = 10} ;
private:
// private representation to be developed later
public:
    Queue(int qs = Q_SIZE); // create queue with a qs limit
    ~Queue();
    bool isempty() const;
    bool isfull() const;
    int queuecount() const;
    bool enqueue(const Item &item); // add item to end
    bool dequeue(Item &item);       // remove item from front
} ;

The constructor creates an empty queue. By default, the queue can hold up to 10 items, but that can be overridden with an explicit initialization argument:

Queue line1;                // queue with 10-item limit
Queue line2(20);            // queue with 20-item limit

When using the queue, you can use a typedef to define Item. (In Chapter 14, "Reusing Code in C++," you'll learn how to use class templates instead.)

The Implementation

Next, let's implement the interface. First, you have to decide how to represent the queue data. One approach is to use new to dynamically allocate an array with the required number of elements. However, arrays aren't a good match to queue operations. For example, removing an item from the front of the array should be followed up by shifting every remaining element one unit closer to the front. Or else you'll need to do something more elaborate, such as treating the array as circular. The linked list, however, is a reasonable fit to the requirements of a queue. A linked list consists of a sequence of nodes. Each node contains the information to be held in the list plus a pointer to the next node in the list. For this queue, each data part will be a type Item value, and you can use a structure to represent a node:

struct Node
{
     Item item;             // data stored in the node
     struct Node * next;    // pointer to next node
} ;

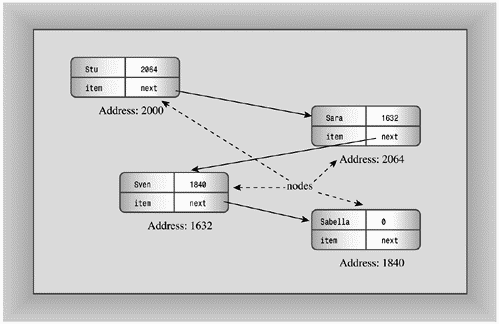

Figure 12.8 illustrates a linked list.

The example shown in Figure 12.8 is called a singly linked list because each node has a single link, or pointer, to another node. If you have the address of the first node, you can follow the pointers to each subsequent node in the list. Commonly, the pointer in the last node in the list is set to NULL (or, equivalently, to 0) to indicate that there are no further nodes. To keep track of a linked list, you must know the address of the first node. You can use a data member of the Queue class to point to the beginning of the list. In principle, that's all the information you need, for you can trace down the chain of nodes to find any other node. However, because a queue always adds a new item to the end of the queue, it will be convenient to have a data member pointing to the last node, too (see Figure 12.9). In addition, you can use data members to keep track of the maximum number of items allowed in the queue and of the current number of items. Thus, the private part of the class declaration can look like this:

class Queue
{
// class scope definitions
    // Node is a nested structure definition local to this class
    struct Node { Item item; struct Node * next;} ;
    enum {Q_SIZE = 10} ;
private:
    Node * front;       // pointer to front of Queue
    Node * rear;        // pointer to rear of Queue
    int items;          // current number of items in Queue
    const int qsize;    // maximum number of items in Queue
    ...
public:
//...
} ;

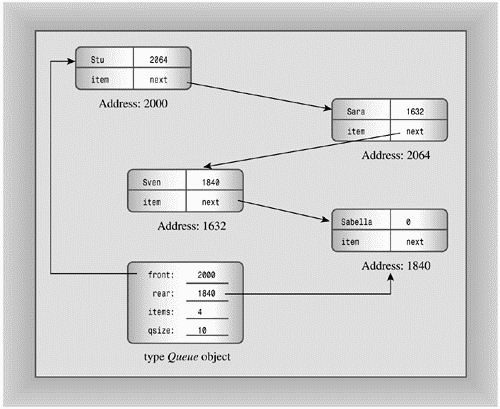

The declaration uses a new C++ feature: the ability to nest a structure or class declaration inside a class. By placing the Node declaration inside the Queue class, you give it class scope. That is, Node is a type that you can use to declare class members and as a type name in class methods, but the type is restricted to the class. That way, you don't have to worry about this declaration of Node conflicting with some global declaration or with a Node declared inside some other class. Not all compilers currently support nested structures and classes. If yours doesn't, then you'll have to define a Node structure globally, giving it file scope.

After you settle upon a data representation, the next step is to code the class methods.

The Class Methods

The class constructor should provide values for the class members. Because the queue begins in an empty state, you should set the front and rear pointers to NULL (or 0) and items to 0. Also, you should set the maximum queue size qsize to the constructor argument qs. Here's an implementation that does not work:

Queue::Queue(int qs)
{
    front = rear = NULL;
    items = 0;
    qsize = qs;    // not acceptable!
}

The problem is that qsize is a const, so it can be initialized to a value, but it can't be assigned a value. Conceptually, calling a constructor creates an object before the code within the brackets is executed. Thus, calling the Queue(int qs) constructor causes the program to first allocate space for the four member variables. Then program flow enters the brackets and uses ordinary assignment to place values into the allocated space. Therefore, if you want to initialize a const data member, you have to do so when the object is created, before execution reaches the body of the constructor. C++ provides a special syntax for doing just that. It's called a member initializer list. The member initializer list consists of a comma-separated list of initializers preceded by a colon. It's placed after the closing parenthesis of the argument list and before the opening bracket of the function body. If a data member is named mdata and if it's to be initialized to value val, the initializer has the form mdata(val). Using this notation, you can write the Queue constructor like this:

Queue::Queue(int qs) : qsize(qs)   // initialize qsize to qs
{
    front = rear = NULL;
    items = 0;
}

In general, the initial value can involve constants and arguments from the constructor's argument list. The technique is not limited to initializing constants; you also can write the Queue constructor like this:

Queue::Queue(int qs) : qsize(qs), front(NULL), rear(NULL), items(0)
{
}

Only constructors can use this initializer-list syntax. As you've seen, you have to use this syntax for const class members. You also have to use it for class members that are declared as references:

class Agency {...} ;
class Agent
{
private:
    Agency & belong;    // must use initializer list to initialize
    ...
} ;
Agent::Agent(Agency & a) : belong(a) {...}

That's because references, like const data, can be initialized only when created. For simple data members, such as front and items, it doesn't make much difference whether you use a member initializer list or use assignment in the function body. As you'll see in Chapter 14, however, it's more efficient to use the member initializer list for members that are themselves class objects.

Classy::Classy(int n, int m) :mem1(n), mem2(0), mem3(n*m + 2)
{
//...
}

Incidentally, the parenthesized form used in the member initializer list can be used in ordinary initializations, too. That is, if you like, you can replace code like

int games = 162;
double talk = 2.71828;

with

int games(162);
double talk(2.71828);

This lets initializing built-in types look like initializing class objects.

The code for isempty(), isfull(), and queuecount() is simple. If items is 0, the queue is empty. If items is qsize, the queue is full. Returning the value of items answers the question of how many items are in the queue. We'll show the code in a header file later.

Adding an item to the rear of the queue (enqueuing) is more involved. Here is one approach:

bool Queue::enqueue(const Item & item)
{
    if (isfull())
        return false;
    Node * add = new Node;  // create node
    if (add == NULL)
        return false;       // quit if none available
    add->item = item;       // set node pointers
    add->next = NULL;
    items++;
    if (front == NULL)      // if queue is empty,
        front = add;        // place item at front
    else
        rear->next = add;   // else place at rear
    rear = add;             // have rear point to new node
    return true;
}

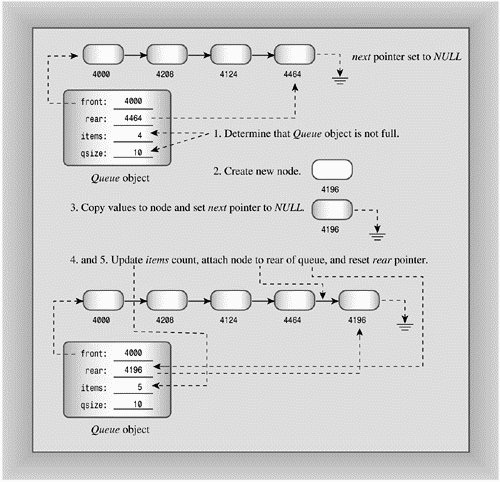

In brief, the method goes through the following phases (also see Figure 12.10):

Removing an item from the front of the queue (dequeuing) also has several steps.

bool Queue::dequeue(Item & item)
{
    if (front == NULL)
        return false;
    item = front->item;     // set item to first item in queue
    items--;
    Node * temp = front;    // save location of first item
    front = front->next;    // reset front to next item
    delete temp;            // delete former first item
    if (items == 0)
        rear = NULL;
    return true;
}

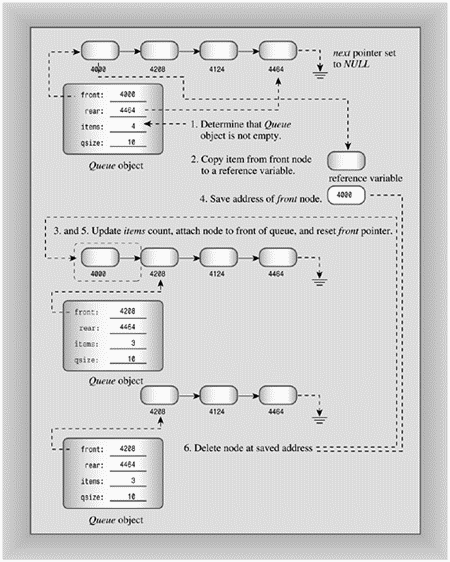

In brief, the method goes through the following phases (also see Figure 12.11):

Step 4 is necessary because step 5 erases the queue's memory of where the former first node is.

Other Class Methods?

Do you need any more methods? The class constructor doesn't use new, so, at first glance, it may appear you don't have to worry about the special requirements of classes that do use new in the constructors. Of course, that first glance is misleading, for adding objects to a queue does invoke new to create new nodes. It's true that the dequeue() method cleans up by deleting nodes, but there's no guarantee that a queue will be empty when it expires. Therefore, the class does require an explicit destructor, one that deletes all remaining nodes. Here's an implementation:

Queue::~Queue()
{
    Node * temp;
    while (front != NULL)   // while queue is not yet empty
    {
        temp = front;       // save address of front item
        front = front->next;// reset pointer to next item
        delete temp;        // delete former front
    }
}

It starts at the front of the list and deletes each node in turn.

Hmmm. You've seen that classes using new usually require explicit copy constructors and assignment operators that do deep copying. Is that the case here? The first question to answer is, does the default memberwise copying do the right thing? The answer is no. Memberwise copying of a Queue object would produce a new object that pointed to the front and rear of the same linked list as the original. Thus, adding an item to the copy Queue object changes the shared linked list. That's bad enough. What's worse is that only the copy's rear pointer gets updated, essentially corrupting the list from the standpoint of the original object. Clearly, then, cloning or copying queues requires providing a copy constructor and an assignment constructor that do deep copying.

Of course, that raises the question of why you would want to copy a queue. Well, perhaps you would want to save snapshots of a queue during different stages of a simulation. Or you would like to provide identical input to two different strategies. Actually, it might be useful to have operations that split a queue, the way supermarkets sometimes do when opening an additional checkout stand. Similarly, you might want to combine two queues into one or truncate a queue.

But we don't want to do any of these things in this simulation. Can't you simply ignore those concerns and use the methods you already have? Of course you can. However, at some time in the future, you may need to use a queue again, this time with copying. And you might forget that you failed to provide proper code for copying. Your programs will compile and run, but will generate puzzling results and crashes. So it would seem that it's best to provide a copy constructor and an assignment operator, even though you don't need them now.

Fortunately, there is a sneaky way to avoid doing this extra work while still protecting yourself from future program crashes. The idea is to define the required methods as dummy private methods:

class Queue
{
private:
    Queue(const Queue & q) : qsize(0) { }    // preemptive definition
    Queue & operator=(const Queue & q) { return *this;}
//...
} ;

This has two effects. First, it overrides the default method definitions that otherwise would be generated automatically. Second, because these methods are private, they can't be used by the world at large. That is, if nip and tuck are Queue objects, the compiler won't allow the following:

Queue snick(nip);     // not allowed
tuck = nip;           // not allowed

Therefore, instead of being faced with mysterious runtime malfunctions in the future, you'll get an easier-to-trace compiler error stating that these methods aren't accessible. Also, this trick is useful when you define a class whose objects should not be copied.

Are there any other effects to note? Yes. Recall that the copy constructor is invoked when objects are passed (or returned) by value. However, this is no problem if you follow the preferred practice of passing objects as references. Also, the copy constructor is used to create other temporary objects. But the Queue definition lacks operations that lead to temporary objects, such as overloading the addition operator.

The Customer Class

Next, you must design a customer class. In general, a teller machine customer has many properties, such as a name, account numbers, and account balances. However, the only properties you need for the simulation are when a customer joins the queue and the time required for the customer's transaction. When the simulation produces a new customer, the program will create a new customer object, storing in it the customer's time of arrival and a randomly generated value for the transaction time. When the customer reaches the front of the queue, the program will note the time and subtract the queue-joining time to get the customer's waiting time. Here's how you can define and implement the Customer class:

class Customer
{
private:
    long arrive;        // arrival time for customer
    int processtime;    // processing time for customer
public:
    Customer() { arrive = processtime = 0; }
    void set(long when);
    long when() const { return arrive; }
    int ptime() const { return processtime; }
} ;
void Customer::set(long when)
{
    processtime = rand() % 3 + 1;
    arrive = when;
}

The default constructor creates a null customer. The set() member function sets the arrival time to its argument and randomly picks a value from 1 through 3 for the processing time.

Listing 12.8 gathers together the Queue and Customer class declarations, and Listing 12.9 provides the methods.

Listing 12.8 queue.h

// queue.h -- interface for a queue
#ifndef QUEUE_H_
#define QUEUE_H_
// This queue will contain Customer items
class Customer
{
private:
    long arrive;        // arrival time for customer
    int processtime;    // processing time for customer
public:
    Customer() { arrive = processtime = 0; }
    void set(long when);
    long when() const { return arrive; }
    int ptime() const { return processtime; }
} ;

typedef Customer Item;

class Queue
{
// class scope definitions
    // Node is a nested structure definition local to this class
    struct Node { Item item; struct Node * next;} ;
    enum {Q_SIZE = 10} ;
private:
    Node * front;       // pointer to front of Queue
    Node * rear;        // pointer to rear of Queue
    int items;          // current number of items in Queue
    const int qsize;    // maximum number of items in Queue
    // preemptive definitions to prevent public copying
    Queue(const Queue & q) : qsize(0) { }
    Queue & operator=(const Queue & q) { return *this;}
public:
    Queue(int qs = Q_SIZE); // create queue with a qs limit
    ~Queue();
    bool isempty() const;
    bool isfull() const;
    int queuecount() const;
    bool enqueue(const Item &item); // add item to end
    bool dequeue(Item &item);       // remove item from front
} ;
#endif

Listing 12.9 queue.cpp

// queue.cpp -- Queue and Customer methods
#include "queue.h"
#include <cstdlib>         // (or stdlib.h) for rand()
using namespace std;

// Queue methods
Queue::Queue(int qs) : qsize(qs)
{
    front = rear = NULL;
    items = 0;
}

Queue::~Queue()
{
    Node * temp;
    while (front != NULL)   // while queue is not yet empty
    {
        temp = front;       // save address of front item
        front = front->next;// reset pointer to next item
        delete temp;        // delete former front
    }
}

bool Queue::isempty() const
{
    return items == 0;
}
bool Queue::isfull() const
{
    return items == qsize;
}

int Queue::queuecount() const
{
    return items;
}

// Add item to queue
bool Queue::enqueue(const Item & item)
{
    if (isfull())
        return false;
    Node * add = new Node;  // create node
    if (add == NULL)
        return false;       // quit if none available
    add->item = item;       // set node pointers
    add->next = NULL;
    items++;
    if (front == NULL)      // if queue is empty,
        front = add;        // place item at front
    else
        rear->next = add;   // else place at rear
    rear = add;             // have rear point to new node
    return true;
}

// Place front item into item variable and remove from queue
bool Queue::dequeue(Item & item)
{
    if (front == NULL)
        return false;
    item = front->item;     // set item to first item in queue
    items--;
    Node * temp = front;    // save location of first item
    front = front->next;    // reset front to next item
    delete temp;            // delete former first item
    if (items == 0)
        rear = NULL;
    return true;
}

// customer method

// when is the time at which the customer arrives
// the arrival time is set to when and the processing
// time set to a random value in the range 1 - 3
void Customer::set(long when)
{
    processtime = rand() % 3 + 1;
    arrive = when;
}

The Simulation

We now have the tools needed for the automatic teller simulation. The program will allow the user to enter three quantities: the maximum queue size, the number of hours the program will simulate, and the average number of customers per hour. The program will use a loop in which each cycle represents one minute. During each minute cycle, the program will do the following:

When the simulation cycle is finished, the program will report various statistical findings.

An interesting matter is how the program determines whether a new customer has arrived. Suppose, on the average, 10 customers arrive an hour. That amounts to a customer every 6 minutes. The program computes and stores that value in the variable min_per_cust. However, having a customer show up exactly every 6 minutes is unrealistic. What we really want (at least most of the time) is a more random process that averages to a customer every 6 minutes. The program uses this function to determine if a customer shows up during a cycle:

bool newcustomer(double x)
{
    return (rand() * x / RAND_MAX < 1);
}

Here's how it works. The value RAND_MAX is defined in the cstdlib file (formerly stdlib.h) and represents the largest value the rand() function can return (0 is the lowest value). Suppose that x, the average time between customers, is 6. Then the value of rand() * x / RAND_MAX will be somewhere between 0 and 6. In particular, it will be less than 1 a sixth of the time, on the average. However, it's possible that this function might yield two customers spaced 1 minute apart one time, or 20 minutes apart another time. This behavior leads to the clumpiness that often distinguishes real processes from the clocklike regularity of exactly one customer every 6 minutes. This particular method breaks down if the average time between arrivals drops below 1 minute, but the simulation is not intended to handle that scenario. If you did need to deal with such a case, you'd use a finer time resolution, perhaps letting each cycle represent 10 seconds.

Listing 12.10 presents the details of the simulation. Running the simulation for a long time period provides insight into long-term averages, and running it for short times provides insight into short-term variations.

Listing 12.10 bank.cpp

// bank.cpp -- use the Queue interface
#include <iostream>
using namespace std;
#include <cstdlib> // for rand() and srand()
#include <ctime>   // for time()
#include "queue.h"
const int MIN_PER_HR = 60;

bool newcustomer(double x); // is there a new customer?

int main()
{
// setting things up
    srand(time(0));         //  random initializing of rand()

    cout << "Case Study: Bank of Heather Automatic Teller\ n";
    cout << "Enter maximum size of queue: ";
    int qs;
    cin >> qs;
    Queue line(qs);         // line queue holds up to qs people

    cout << "Enter the number of simulation hours: ";
    int hours;              //  hours of simulation
    cin >> hours;
    // simulation will run 1 cycle per minute
    long cyclelimit = MIN_PER_HR * hours; // # of cycles
    cout << "Enter the average number of customers per hour: ";
    double perhour;         //  average # of arrival per hour
    cin >> perhour;
    double min_per_cust;    //  average time between arrivals
    min_per_cust = MIN_PER_HR / perhour;

    Item temp;              //  new customer data
    long turnaways = 0;     //  turned away by full queue
    long customers = 0;     //  joined the queue
    long served = 0;        //  served during the simulation
    long sum_line = 0;      //  cumulative line length
    int wait_time = 0;      //  time until autoteller is free
    long line_wait = 0;     //  cumulative time in line



// running the simulation
    for (int cycle = 0; cycle < cyclelimit; cycle++)
    {
        if (newcustomer(min_per_cust))  // have newcomer
        {
            if (line.isfull())
                turnaways++;
            else
            {
                customers++;
                temp.set(cycle);    // cycle = time of arrival
                line.enqueue(temp); // add newcomer to line
            }
        }
        if (wait_time <= 0 && !line.isempty())
        {
            line.dequeue (temp);      // attend next customer
            wait_time = temp.ptime(); // for wait_time minutes
            line_wait += cycle - temp.when();
            served++;
        }
        if (wait_time > 0)
            wait_time--;
        sum_line += line.queuecount();
    }

// reporting results
    if (customers > 0)
    {
        cout << "customers accepted: " << customers << '\ n';
        cout << "  customers served: " << served << '\ n';
        cout << "         turnaways: " << turnaways << '\ n';
        cout << "average queue size: ";
        cout.precision(2);
        cout.setf(ios_base::fixed, ios_base::floatfield);
        cout.setf(ios_base::showpoint);
        cout << (double) sum_line / cyclelimit << '\ n';
        cout << " average wait time: "
             << (double) line_wait / served << " minutes\ n";
    }
    else
        cout << "No customers!\ n";
    return 0;
}

//  x = average time, in minutes, between customers
//  return value is true if customer shows up this minute
bool newcustomer(double x)
{
    return (rand() * x / RAND_MAX < 1);
}

Here are a few sample runs for a longer time period:

Case Study: Bank of Heather Automatic Teller
Enter maximum size of queue: 10
Enter the number of simulation hours: 100
Enter the average number of customers per hour: 15
customers accepted: 1485
  customers served: 1485
         turnaways: 0
average queue size: 0.15
 average wait time: 0.63 minutes

Case Study: Bank of Heather Automatic Teller
Enter maximum size of queue: 10
Enter the number of simulation hours: 100
Enter the average number of customers per hour: 30
customers accepted: 2896
  customers served: 2888
         turnaways: 101
average queue size: 4.64
 average wait time: 9.63 minutes

Case Study: Bank of Heather Automatic Teller
Enter maximum size of queue: 20
Enter the number of simulation hours: 100
Enter the average number of customers per hour: 30
customers accepted: 2943
  customers served: 2943
         turnaways: 93
average queue size: 13.06
 average wait time: 26.63 minutes

Note that going from 15 customers an hour to 30 customers an hour doesn't double the average wait time, it increases it by about a factor of 15. Allowing a longer queue just makes matters worse. However, the simulation doesn't allow for the fact that many customers, frustrated with a long wait, would simply leave the queue.

Here are a few more sample runs. These illustrate the short-term variations one might see, even though the average number of customers per hour is kept constant.

Case Study: Bank of Heather Automatic Teller
Enter maximum size of queue: 10
Enter the number of simulation hours: 4
Enter the average number of customers per hour: 30
customers accepted: 114
  customers served: 110
         turnaways: 0
average queue size: 2.15
 average wait time: 4.52 minutes

Case Study: Bank of Heather Automatic Teller
Enter maximum size of queue: 10
Enter the number of simulation hours: 4
Enter the average number of customers per hour: 30
customers accepted: 121
  customers served: 116
         turnaways: 5
average queue size: 5.28
 average wait time: 10.72 minutes

Case Study: Bank of Heather Automatic Teller
Enter maximum size of queue: 10
Enter the number of simulation hours: 4
Enter the average number of customers per hour: 30
customers accepted: 112
  customers served: 109
         turnaways: 0
average queue size: 2.41
 average wait time: 5.16 minutes

class TheOnlyInstance
{
  public:
    static TheOnlyInstance* GetTheOnlyInstance();
    // other methods
  protected:
    TheOnlyInstance() { }
  private:
    // private data
} ;

int main()
{
    TheOnlyInstance noCanDo;  // not allowed

TheOnlyInstance* TheOnlyInstance::GetTheOnlyInstance()
{
    static TheOnlyInstance objTheOnlyInstance;
    return &objTheOnlyInstance;
}

TheOnlyInstance* pTheOnlyInstance = TheOnlyInstance::GetTheOnlyInstance();

Summary

This chapter covers many important aspects of defining and using classes. Several of these aspects are subtle, even difficult, concepts. If some of them seem obscure or unusually complex to you, don't feel bad—they affect most newcomers to C++ that way. Often, the way you come to really appreciate concepts like copy constructors is through getting into trouble by ignoring them. So some of the material in this chapter may seem vague to you until your own experiences enrich your understanding. Meanwhile, let's summarize the chapter.

You can use new in a class constructor to allocate memory for data and then assign the address of the memory to a class member. This enables a class, for example, to handle strings of various sizes without committing the class design in advance to a fixed array size. Using new in class constructors also raises potential problems when an object expires. If an object has member pointers pointing to memory allocated by new, freeing the memory used to hold the object does not automatically free the memory pointed to by the object member pointers. Therefore, if you use new in a class constructor to allocate memory, you should use delete in the class destructor to free that memory. That way, the demise of an object automatically triggers the deletion of pointed-to memory.

Objects having members pointing to memory allocated by new also have problems with initializing one object to another or assigning one object to another. By default, C++ uses memberwise initialization and assignment, which means that the initialized or the assigned-to object winds up with exact copies of the original object's members. If an original member points to a block of data, the copy member points to the same block. When the program eventually deletes the two objects, the class destructor will attempt to delete the same block of memory twice, which is an error. The solution is to define a special copy constructor that redefines initialization and to overload the assignment operator. In each case, the new definition should create duplicates of any pointed-to data and have the new object point to the copies. That way, both the old and the new object refer to separate, but identical, data with no overlap. The same reasoning applies to defining an assignment operator. In each case, the goal is making a deep copy, that is, copying the real data and not just pointers to them.

C++ allows you to place structure, class, and enumeration definitions inside a class. Such nested types have class scope, meaning that they are local to the class and don't conflict with structures, classes, and enumerations of the same name defined elsewhere.

C++ provides a special syntax for class constructors that can be used to initialize data members. This syntax consists of a colon followed by a comma-separated list of initializers. This is placed after the closing parenthesis of the constructor arguments and before the opening brace of the function body. Each initializer consists of the name of the member being initialized followed by parentheses containing the initialization value. Conceptually, these initializations take place when the object is created and before any statements in the function body are executed. The syntax looks like this:

queue(int qs) : qsize(qs), items(0), front(NULL), rear(NULL) { }

This form is obligatory if the data member is a nonstatic const member or a reference.

As you might have noticed, classes require much more care and attention to detail than do simple C-style structures. In return, they do much more for you.

Review Questions

class String
{
private:
    char * str;    // points to string allocated by new
    int len;       // holds length of string
//...
} ;

class nifty
{
// data
    char personality[];
    int talents;
// methods
    nifty();
    nifty(char * s);
    ostream & operator<<(ostream & os, nifty & n);
}
nifty:nifty()
{
    personality = NULL;
    talents = 0;
}
nifty:nifty(char * s)
{
    personality = new char [strlen(s)];
    personality = s;
    talents = 0;
}
ostream & nifty:operator<<(ostream & os, nifty & n)
{
    os << n;
}

class Golfer
{
private:
    char * fullname;       // points to string containing golfer's name
    int games;             // holds number of golf games played
    int * scores;          // points to first element of array of golf scores
public:
    Golfer();
    Golfer(const char * name, int g= 0);
     // creates empty dynamic array of g elements if g > 0
    Golfer(const Golfer & g);
    ~Golfer();
} ;

Programming Exercises

class Cow {
    char name[20];
    char * hobby;
    double weight;
public:
    Cow();
    Cow(const char * nm, const char * ho, double wt);
    Cow(const Cow c&);
    ~Cow();
    Cow & operator=(const Cow & c);
    void ShowCow() const;  // display all cow data
} ;

// pe12_2.cpp
#include <iostream>
using namespace std;
#include "string2.h"
int main()
{
    String s1(" and I am a C++ student.");
    String s2 = "Please enter your name: ";
    String s3;
    cout << s2;                 // overloaded << operator
    cin >> s3;                  // overloaded >> operator
    s2 = "My name is " + s3;    // overloaded =, + operators
    cout << s2 << ".\ n";
    s2 = s2 + s1;
    s2.stringup();              // converts string to uppercase
    cout << "The string\ n" << s2 << "\ ncontains " << s2.has('A')
            << " 'A' characters in it.\ n";
    s1 = "red";     // String(const char *),
                    // then String & operator=(const String&)
    String rgb[3] = { String(s1), String("green"), String("blue")} ;
    cou.t << "Enter the name of a primary color for mixing light: ";
    String ans;
    bool success = false;
    while (cin >> ans)
    {
        ans.stringlow();        // converts string to lowercase
        for (int i = 0; i < 3; i++)
        {
            if (ans == rgb[i])  // overloaded == operator
            {
                cout << "That's right!\ n";
                success = true;
                break;
            }
        }
        if (success)
            break;
        else
            cout << "Try again!\ n";
    }
    cout << "Bye\ n";
    return 0;
}

Please enter your name: Fretta Farbo
My name is Fretta Farbo.
The string
MY NAME IS FRETTA FARBO AND I AM A C++ STUDENT.
contains 6 'A' characters in it.
Enter the name of a primary color for mixing light: yellow
Try again!
BLUE
That's right!
Bye

// stack.h ?class declaration for the stack ADT
typedef unsigned long Item;
class Stack
{
private:
    enum { MAX = 10} ;      // constant specific to class
    Item  * pitems;       // holds stack items
    int size;             // number of elements in stack
    int top;              // index for top stack item
public:
    Stack(int n = 10);    // creates stack with n elements
    Stack(const Stack & st);
    ~Stack();
    bool isempty() const;
    bool isfull() const;
    // push() returns false if stack already is full, true otherwise
    bool push(const Item & item); // add item to stack
    // pop() returns false if stack already is empty, true otherwise
    bool pop(Item & item);  // pop top into item
    Stack & operator=(const Stack & st);
} ;

CONTENTS
