You will learn about the following in this chapter:
One of the main goals of C++ is to facilitate the reuse of code. Public inheritance is one mechanism for achieving this goal, but not the only one. This chapter will investigate other choices. One technique is using class members that are themselves objects of another class. This is referred to as containment or composition or layering. Another option is using private or protected inheritance. Containment, private inheritance, and protected inheritance typically are used to implement has-a relationships, that is, relationships for which the new class has an object of another class. For example, a Stereo class might have a CdPlayer object. Multiple inheritance lets you create classes that inherit from two or more base classes, combining their functionality.
Chapter 10, "Objects and Classes," introduced function templates. Now we'll look at class templates, which provide another way of reusing code. Class templates let you define a class in generic terms. Then you can use the template to create specific classes defined for specific types. For example, you could define a general stack template and then use the template to create one class representing a stack of int values and another class representing a stack of double values. You could even generate a class representing a stack of stacks.
Let's begin with classes that include class objects as members. Some classes, such as the String class of Chapter 12, "Classes and Dynamic Memory Allocation," or the standard C++ classes and templates of Chapter 16, "The string Class and the Standard Template Library," offer convenient ways of representing components of a more extensive class. We'll look at a particular example now.
What is a student? Someone enrolled in a school? Someone engaged in thoughtful investigation? A refugee from the harsh exigencies of the real world? Someone with an identifying name and a set of quiz scores? Clearly, the last definition is a totally inadequate characterization of a person, but it is well-suited for a simple computer representation. So let's develop a Student class based on that definition.
Simplifying a student to a name and a set of quiz scores suggests using a String class object (Chapter 12) to hold the name and an array class object (coming up soon) to hold the scores (assumed to be type double). (Once you learn about the library classes discussed in Chapter 16, you probably would use the standard string and vector classes.) You might be tempted to publicly derive a Student class from these two classes. That would be an example of multiple public inheritance, which C++ allows, but it would be inappropriate here. The reason is that the relationship of a student to these classes doesn't fit the is-a model. A student is not a name. A student is not an array of quiz scores. What we have here is a has-a relationship. A student has a name, and a student has an array of quiz scores. The usual C++ technique for modeling has-a relationships is to use composition or containment; that is, to create a class composed of, or containing, members that are objects of another class. For example, we can begin a Student class declaration like this:
class Student
{
private:
String name; // use a String object for name
ArrayDb scores; // use an ArrayDb object for scores
......
};
As usual, the class makes the data members private. This implies that the Student class member functions can use the public interfaces of the String and ArrayDb (for array of double) classes to access and modify the name and scores objects, but that the outside world cannot do so. The only access the outside world will have to name and scores is through the public interface defined for the Student class (see Figure 14.1). A common way of describing this is saying that the Student class acquires the implementation of its member objects, but doesn't inherit the interface. For example a Student object uses the String implementation rather than a char * name or a char name[26] implementation for holding the name. But a Student object does not innately have the ability to use the String operator==() function.
Interfaces and Implementations
|
|
With public inheritance, a class inherits an interface, and, perhaps, an implementation. (Pure virtual functions in a base class can provide an interface without an implementation.) Acquiring the interface is part of the is-a relationship. With composition, on the other hand, a class acquires the implementation without the interface. Not inheriting the interface is part of the has-a relationship. |
The fact that a class object doesn't automatically acquire the interface of a contained object is a good thing for a has-a relationship. For example, one could extend the String class to overload the + operator to allow concatenating two strings, but, conceptually, it doesn't make sense to concatenate two Student objects. That's one reason not to use public inheritance in this case. On the other hand, parts of the interface for the contained class may make sense for the new class. For example, you might want to use the operator<() method from the String interface to sort Student objects by name. You can do so by defining a Student::Operator<() member function that, internally, uses the String::Operator<() function. Let's move on to some details.
The first detail is developing the ArrayDb class so that the Student class can use it. This class will be quite similar to the String class because the latter is an array, too, in this case, of char. First, let's list some necessary and/or desirable features for the ArrayDb class.
It should be able to store several double values.
It should provide random access to individual values using bracket notation with an index.
One can assign one array to another.
The class will perform bounds checking to ensure that array indices are valid.
The first two features are the essence of an array. The third feature is not true of built-in arrays but is true for class objects, so creating an array class will provide that feature. The final feature, again, is not true for built-in arrays, but can be added as part of the second feature.
At this point, much of the design can ape the String declaration, replacing type char with type double. That is, you can do this:
class ArrayDb
{
private:
unsigned int size; // number of array elements
double * arr; // address of first element
public:
ArrayDb(); // default constructor
// create an ArrayDb of n elements, set each to val
ArrayDb(unsigned int n, double val = 0.0);
// create an ArrayDb of n elements, initialize to array pn
ArrayDb(const double * pn, unsigned int n);
ArrayDb(const ArrayDb & a); // copy constructor
virtual ~ArrayDb(); // destructor
double & operator[](int i); // array indexing
const double & operator[](int i) const; // array indexing
// other stuff to be added here
ArrayDb & operator=(const ArrayDb & a);
friend ostream & operator<<(ostream & os, const ArrayDb & a);
};
The class will use dynamic memory allocation to create an array of the desired size. Therefore, it also will provide a destructor, a copy constructor, and an assignment operator. For convenience, it will have a few more constructors.
To provide random access using array notation, the class has to overload the [] operator, just as the String class did. This will allow code like the following:
ArrayDb scores(5, 20.0); // 5 elements, each set to 20.0 double temp = scores[3]; scores[3] = 16.5:
Clients of the ArrayDB class can access array elements individually only through the overloaded [] operator. This gives you the opportunity to build in some safety checks. In particular, the method can check to see if the proposed array index is in bounds. That is, you can write the operator this way:
double & ArrayDb::operator[](int i)
{
// check index before continuing
if (i < 0 || i >= size)
{
cerr << "Error in array limits: "
<< i << " is a bad index\n";
exit(1);
}
return arr[i];
}
This slows down a program, for it requires evaluating an if statement every time the program accesses an array element. But it adds safety, preventing a program from placing a value in the 2000th element of a 5-element array.
As with the String class, we need a const version of the [] operator to allow read-only access for constant ArrayDb objects:
const double & ArrayDb::operator[](int i) const
{
// check index before continuing
if (i < 0 || i >= size)
{
cerr << "Error in array limits: "
<< i << " is a bad index\n";
exit(1);
}
return arr[i];
}
The compiler will select the const version of operator[]() for use with const ArrayDb objects and use the other version for non-const ArrayDb objects.
Listing 14.1 shows the header file for the ArrayDb class. For extra convenience, the class definition includes an Average() method that returns the average of the array elements.
// arraydb.h -- array class
#ifndef ARRAYDB_H_
#define ARRAYDB_H_
#include <iostream>
using namespace std;
class ArrayDb
{
private:
unsigned int size; // number of array elements
double * arr; // address of first element
public:
ArrayDb(); // default constructor
// create an ArrayDb of n elements, set each to val
explicit ArrayDb(unsigned int n, double val = 0.0);
// create an ArrayDb of n elements, initialize to array pn
ArrayDb(const double * pn, unsigned int n);
ArrayDb(const ArrayDb & a); // copy constructor
virtual ~ArrayDb(); // destructor
unsigned int ArSize() const {return size;}// returns array size
double Average() const; // return array average
// overloaded operators
double & operator[](int i); // array indexing
const double & operator[](int i) const; // array indexing
ArrayDb & operator=(const ArrayDb & a);
friend ostream & operator<<(ostream & os, const ArrayDb & a);
};
#endif
Compatibility Note
|
|
Older implementations don't support the explicit keyword. |
One point of interest is that one of the constructors uses explicit:
explicit ArrayDb(unsigned int n, double val = 0.0);
A constructor that can be called with one argument, recall, serves as an implicit conversion function from the argument type to the class type. In this case, the first argument represents the number of elements in the array rather than a value for the array, so having the constructor serve as an int-to-ArrayDb conversion function does not make sense. Using explicit turns off implicit conversions. If this keyword were omitted, then code like the following would be possible:
ArrayDb doh(20,100); // array of 20 elements, each set to 100 doh = 5; // set doh to an array of 5 elements, each set to 0
Here, the inattentive programmer typed doh instead of doh[0]. If the constructor omitted explicit, 5 would be converted to a temporary ArrayDb object using the constructor call ArrayDb(5), with the default value of 0 being used for the second argument. Then assignment would replace the original doh with the temporary object. With explicit in place, the compiler will catch the assignment operator as an error.
Real World Note: C++ and Constraints
|
|
C++ is full of features that allow the programmer to constrain programmatic constructs to certain limits?tt>explicit to remove the implicit conversion of single-argument constructors, const to constrain the use of methods to modify data, and more. The underlying motive is simply this: compile-time errors are better than run-time errors. Consider an admittedly horrible example of a runtime error: a key value, responsible for the reported height of an aircraft is mangled (programmer-speak for altered), quite accidentally, by a maintenance programmer who modifies the value using a method of his own, derived from your original Airplane::reportHeight() method, which uses the value properly and doesn't misreport it). Avoiding this error is as simple as creating the reportHeight() method as const in the first place; the maintenance programmer can't derive a method to mangle the data, because you've protected him. If he tries, his compiler stops him, and forces him to create his method as const also. Use of the C++ language to prevent disaster by generating compiler errors is a sure sign of an experienced, thoughtful programmer. The features exist to help, and using them to their utmost is, in the long run, sure to result in better software. |
Listing 14.2 shows the implementation.
// arraydb.cpp -- ArrayDb class methods
#include <iostream>
using namespace std;
#include <cstdlib> // exit() prototype
#include "arraydb.h"
// default constructor -- no arguments
ArrayDb::ArrayDb()
{
arr = NULL;
size = 0;
}
// constructs array of n elements, each set to val
ArrayDb::ArrayDb(unsigned int n, double val)
{
arr = new double[n];
size = n;
for (int i = 0; i < size; i++)
arr[i] = val;
}
// initialize ArrayDb object to a non-class array
ArrayDb::ArrayDb(const double *pn, unsigned int n)
{
arr = new double[n];
size = n;
for (int i = 0; i < size; i++)
arr[i] = pn[i];
}
// initialize ArrayDb object to another ArrayDb object
ArrayDb::ArrayDb(const ArrayDb & a)
{
size = a.size;
arr = new double[size];
for (int i = 0; i < size; i++)
arr[i] = a.arr[i];
}
ArrayDb::~ArrayDb()
{
delete [] arr;
}
double ArrayDb::Average() const
{
double sum = 0;
int i;
int lim = ArSize();
for (i = 0; i < lim; i++)
sum += arr[i];
if (i > 0)
return sum / i;
else
{
cerr << "No entries in score array\n";
return 0;
}
}
// let user access elements by index (assignment allowed)
double & ArrayDb::operator[](int i)
{
// check index before continuing
if (i < 0 || i >= size)
{
cerr << "Error in array limits: "
<< i << " is a bad index\n";
exit(1);
}
return arr[i];
}
// let user access elements by index (assignment disallowed)
const double & ArrayDb::operator[](int i) const
{
// check index before continuing
if (i < 0 || i >= size)
{
cerr << "Error in array limits: "
<< i << " is a bad index\n";
exit(1);
}
return arr[i];
}
// define class assignment
ArrayDb & ArrayDb::operator=(const ArrayDb & a)
{
if (this == &a) // if object assigned to self,
return *this; // don't change anything
delete [] arr;
size = a.size;
arr = new double[size];
for (int i = 0; i < size; i++)
arr[i] = a.arr[i];
return *this;
}
// quick output, 5 values to a line
ostream & operator<<(ostream & os, const ArrayDb & a)
{
int i;
for (i = 0; i < a.size; i++)
{
os << a.arr[i] << " ";
if (i % 5 == 4)
os << "\n";
}
if (i % 5 != 0)
os << "\n";
return os;
}
With the ArrayDb class now in hand, let's proceed to provide the Student class declaration. It should, of course, include constructors and at least a few functions to provide an interface for the Student class. Listing 14.3 does this, defining all the constructors inline.
// studentc.h -- defining a Student class using containment
#ifndef STUDNTC_H_
#define STUDENTC_H_
#include <iostream>
using namespace std;
#include "arraydb.h"
#include "string1.h" // from Chapter 12
class Student
{
private:
String name; // contained object
ArrayDb scores; // contained object
public:
Student() : name("Null Student"), scores() {}
Student(const String & s)
: name(s), scores() {}
Student(int n) : name("Nully"), scores(n) {}
Student(const String & s, int n)
: name(s), scores(n) {}
Student(const String & s, const ArrayDb & a)
: name(s), scores(a) {}
Student(const char * str, const double * pd, int n)
: name(str), scores(pd, n) {}
~Student() {}
double & operator[](int i);
const double & operator[](int i) const;
double Average() const;
// friends
friend ostream & operator<<(ostream & os, const Student & stu);
friend istream & operator>>(istream & is, Student & stu);
};
#endif
Note that constructors all use the by-now-familiar member-initializer-list syntax to initialize the name and scores member objects. In some past cases, the constructors used it to initialize members that were built-in types:
Queue::Queue(int qs) : qsize(qs) {...} // initialize qsize to qs
This code uses the name of the data member (qsize) in a member initializer list. Also, constructors from previous examples have used a member initializer list to initialize the base class portion of a derived object:
hasDMA::hasDMA(const hasDMA & hs) : baseDMA(hs) {...}
For inherited objects, constructors used the class name in the member initializer list to invoke a specific base class constructor. For member objects, constructors use the member name. For example, look at the last constructor in Listing 14.3:
Student(const char * str, const double * pd, int n)
: name(str), scores(pd, n) {}
Because it initializes member objects, not inherited objects, it uses the member names, not the class names, in the initialization list. Each item in this initialization list invokes the matching constructor. That is, name(str) invokes the String(const char *) constructor, and scores(pd, n) invokes the ArrayDb(const double *, int) constructor.
What happens if you don't use the initialization-list syntax? As with inherited components, C++ requires that all member objects be constructed before the rest of an object is constructed. So if you omit the initialization list, C++ will use the default constructors defined for the member objects classes.
Initialization Order
|
|
When you have a member initializer list that initializes more than one item, the items are initialized in the order they were declared, not in the order in which they appear in the initializer list. For example, suppose we wrote a Student constructor this way: Student(const char * str, const double * pd, int n)
: scores(pd, n), name(str) {}
The name member would still be initialized first because it is declared first in the class definition. The exact initialization order is not important for this example, but it would be important if the code used the value of one member as part of the initialization expression for a second member. |

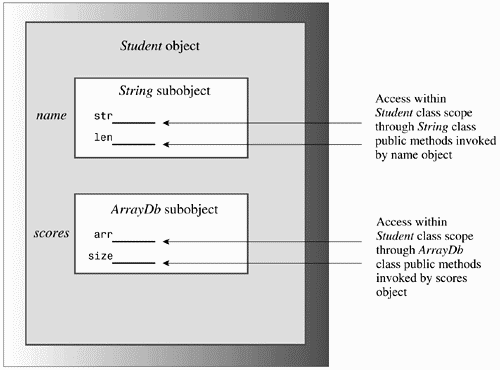

The interface for a contained object isn't public, but it can be used within the class methods. For example, here is how you can define a function that returns the average of a student's scores:
double Student::Average() const
{
return scores.Average();
}
This defines a method that can be invoked by a Student object. Internally, it uses the ArrayDb::Average() function. That's because scores is an ArrayDb object, so it can invoke the member functions of the ArrayDb class. In short, the Student object invokes a Student method, and the Student method uses the contained ArrayDB object to invoke an ArrayDb method.
Similarly, you can define a friend function that uses both the String and the ArrayDb versions of the << operator:
ostream & operator<<(ostream & os, const Student & stu)
{
os << "Scores for " << stu.name << ":\n";
os << stu.scores;
return os;
}
Because stu.name is a String object, it invokes the operator<<(ostream &, const String &) function. Similarly, the ArrayDb object stu.scores invokes the operator<<(ostream &, const ArrayDb &) function. Note that the new function has to be a friend to the Student class so that it can access the name and scores member of a Student object.
Listing 14.4 shows the class methods file for the Student class. It includes methods that allow you to use the [] operator to access individual scores in a Student object.
// studentc.cpp -- Student class using containment
#include "studentc.h"
double Student::Average() const
{
return scores.Average(); // use ArrayDb::Average()
}
double & Student::operator[](int i)
{
return scores[i]; // use ArrayDb::operator[]()
}
const double & Student::operator[](int i) const
{
return scores[i];
}
// friends
// use String and ArrayDb versions
ostream & operator<<(ostream & os, const Student & stu)
{
os << "Scores for " << stu.name << ":\n";
os << stu.scores;
return os;
}
// use String version
istream & operator>>(istream & is, Student & stu)
{
is >> stu.name;
return is;
}
This hasn't required much new code. Using containment allows you to take advantage of the code you've already written.
Let's put together a small program to test the new class. To keep things simple, it will use an array of just three Student objects, each holding five quiz scores. And it'll use an unsophisticated input cycle that doesn't verify input and that doesn't let you cut the input process short. Listing 14.5 presents the test program. Compile it along with studentc.cpp, string1.cpp, and arrayDb.cpp.
// use_stuc.cpp -- use a composite class
// compile with studentc.cpp, string1.cpp, arraydb.cpp
#include <iostream>
using namespace std;
#include "studentc.h"
void set(Student & sa, int n);
const int pupils = 3;
const int quizzes = 5;
int main()
{
Student ada[pupils] = {quizzes, quizzes, quizzes};
int i;
for (i = 0; i < pupils; i++)
set(ada[i], quizzes);
for (i = 0; i < pupils; i++)
{
cout << "\n" << ada[i];
cout << "average: " << ada[i].Average() << "\n";
}
cout << "Done.\n";
return 0;
}
void set(Student & sa, int n)
{
cout << "Please enter the student's name: ";
cin >> sa;
cout << "Please enter " << n << " quiz scores:\n";
for (int i = 0; i < n; i++)
cin >> sa[i];
while (cin.get() != '\n')
continue;
}
Here is a sample run:
Please enter the student's name: Gil Bayts Please enter 5 quiz scores: 92 94 96 93 95 Please enter the student's name: Pat Roone Please enter 5 quiz scores: 83 89 72 78 95 Please enter the student's name: Fleur O'Day Please enter 5 quiz scores: 92 89 96 78 64 Scores for Gil Bayts: 92 94 96 93 95 average: 94 Scores for Pat Roone: 83 89 72 78 95 average: 83.4 Scores for Fleur O'Day 92 89 96 78 64 average: 83.8
C++ has a second means of implementing the has-a relationship?span class="docEmphasis">private inheritance. With private inheritance, public and protected members of the base class become private members of the derived class. This means the methods of the base class do not become part of the public interface of the derived object. They can be used, however, inside the member functions of the derived class.
Let's look at the interface topic more closely. With public inheritance, the public methods of the base class become public methods of the derived class. In short, the derived class inherits the base class interface. This is part of the is-a relationship. With private inheritance, the public methods of the base class become private methods of the derived class. In short, the derived class does not inherit the base class interface. As you saw with contained objects, this lack of inheritance is part of the has-a relationship.
With private inheritance, a class does inherit the implementation. That is, if you base a Student class on a String class, the Student class winds up with an inherited String class component that can be used to store a string. Furthermore, the Student methods can use the String methods internally to access the String component.

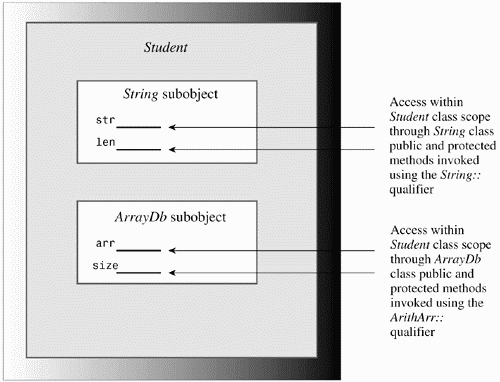

Containment adds an object to a class as a named member object, while private inheritance adds an object to a class as an unnamed inherited object. We'll use the term subobject to denote an object added by inheritance or by containment.
Private inheritance, then, provides the same features as containment: Acquire the implementation, don't acquire the interface. Therefore it, too, can be used to implement a has-a relationship. Let's see how you can use private inheritance to redesign the Student class.
To get private inheritance, use the keyword private instead of public when defining the class. (Actually, private is the default, so omitting an access qualifier also leads to private inheritance.) The Student class should inherit from two classes, so the declaration will list both:
class Student : private String, private ArrayDb
{
public:
......
};
Having more than one base class is called multiple inheritance, or MI. In general, multiple inheritance, particularly public multiple inheritance, can lead to problems that have to be resolved with additional syntax rules. We'll talk about such matters later in this chapter. But in this particular case, MI causes no problems.
Note that the new class won't need a private section. That's because the two inherited base classes already provide all the needed data members. Containment provided two explicitly named objects as members. Private inheritance, however, provides two nameless subobjects as inherited members. This is the first of the main differences in the two approaches.
Having implicitly inherited components instead of member objects will affect the coding, for you no longer can use name and scores to describe the objects. Instead, you have to go back to the techniques you used for public inheritance. For example, consider constructors. Containment used this constructor:
Student(const char * str, const double * pd, int n)
: name(str), scores(pd, n) {} // use object names for containment
The new version will use the member-initializer-list syntax for inherited classes, which uses the class name instead of a member name to identify constructors:
Student(const char * str, const double * pd, int n)
: String(str), ArrayDb(pd, n) {} // use class names for inheritance
That is, the member initializer list uses terms like String(str) instead of name(str). This is the second main difference in the two approaches
Listing 14.6 shows the new class declaration. The only changes are the omission of explicit object names and the use of class names instead of member names in the inline constructors.
// studenti.h -- defining a Student class using private inheritance
#ifndef STUDNTI_H_
#define STUDENTI_H_
#include <iostream>
using namespace std;
#include "arraydb.h"
#include "string1.h"
class Student : private String, private ArrayDb // inherited objects
{
public:
Student() : String("Null Student"), ArrayDb() {}
Student(const String & s)
: String(s), ArrayDb() {}
Student(int n) : String("Nully"), ArrayDb(n) {}
Student(const String & s, int n)
: String(s), ArrayDb(n) {}
Student(const String & s, const ArrayDb & a)
: String(s), ArrayDb(a) {}
Student(const char * str, const double * pd, int n)
: String(str), ArrayDb(pd, n) {}
~Student() {}
double & operator[](int i);
const double & operator[](int i) const;
double Average() const;
// friends
friend ostream & operator<<(ostream & os, const Student & stu);
friend istream & operator>>(istream & is, Student & stu);
};
#endif
Private inheritance limits the use of base class methods to within derived class methods. Sometimes, however, you might like to make a base class facility available publicly. For example, the class declaration suggests the ability to use an Average() function. As with containment, the technique for doing this is to use the private ArrayDb::Average() function within a public Student::average() function (see Figure 14.2). Containment invoked the method with an object:
double Student::Average() const
{
return scores.Average(); // use ArrayDb::Average()
}
Here, however, inheritance lets you use the class name and the scope resolution operator to invoke a base-class function:
double Student::Average() const
{
return ArrayDb::Average();
}
Omitting the ArrayDb:: qualifier would have caused the compiler to interpret the Average() function call as Student::Average(), leading to a highly undesirable recursive function definition. In short, the containment approach used object names to invoke a method, while private inheritance uses the class name and the scope resolution operator instead.
This technique of explicitly qualifying a function name with its class name doesn't work for friend functions because they don't belong to a class. However, you can use an explicit type cast to the base class to invoke the correct functions. For example, consider the following friend function definition:
ostream & operator<<(ostream & os, const Student & stu)
{
os << "Scores for " << (const String &) stu << ":\n";
os << (const ArrayDb &) stu;
return os;
}
If plato is a Student object, then the statement
cout << plato;
will invoke this function, with stu being a reference to plato and os being a reference to cout. Within the code, the type cast in
os << "Scores for " << (const String &) stu << ":\n";
explicitly converts stu to a reference to a type String object, and that matches the operator<<(ostream &, const String &) function. Similarly, the type cast in
os << (const ArrayDb &) stu;
invokes the operator<<(ostream &, const ArrayDb &) function.
The reference stu doesn't get converted automatically to a String or ArrayDb reference. The fundamental reason is this: With private inheritance, a reference or pointer to a base class cannot be assigned a reference or pointer to a derived class without an explicit type cast.
However, even if the example had used public inheritance, it would have had to use explicit type casts. One reason is that without a type cast, code like
os << stu;
would match the friend function prototype, leading to a recursive call. A second reason is that because the class uses multiple inheritance, the compiler couldn't tell which base class to convert to in this case, for both possible conversions match existing operator<<() functions.
Listing 14.7 shows all the class methods, other than those defined inline in the class declaration.
// studenti.cpp -- Student class using private inheritance
#include "studenti.h"
double Student::Average() const
{
return ArrayDb::Average();
}
double & Student::operator[](int i)
{
return ArrayDb::operator[](i);
}
const double & Student::operator[](int i) const
{
return ArrayDb::operator[](i);
}
// friends
ostream & operator<<(ostream & os, const Student & stu)
{
os << "Scores for " << (const String &) stu << ":\n";
os << (const ArrayDb &) stu;
return os;
}
istream & operator>>(istream & is, Student & stu)
{
is >> (String &) stu;
return is;
}
Again, because the example reuses the String and ArrayDb code, relatively little new code is needed.
Once again it's time to test a new class. Note that the two versions of the Student class have exactly the same public interface, so you can test it with exactly the same program. The only difference is that you have to include studenti.h instead of studentc.h, and you have to link the program with studenti.cpp instead of with studentc.cpp. Listing 14.8 shows the program. Compile it along with studenti.cpp, string1.cpp, and arrayDb.cpp.
// use_stui.cpp -- use a class with private derivation
// compile with studenti.cpp, string1.cpp, arraydb.cpp
#include <iostream>
using namespace std;
#include "studenti.h"
void set(Student & sa, int n);
const int pupils = 3;
const int quizzes = 5;
int main()
{
Student ada[pupils] = {quizzes, quizzes, quizzes};
int i;
for (i = 0; i < pupils; i++)
set(ada[i], quizzes);
for (i = 0; i < pupils; i++)
{
cout << "\n" << ada[i];
cout << "average: " << ada[i].Average() << "\n";
}
return 0;
}
void set(Student & sa, int n)
{
cout << "Please enter the student's name: ";
cin >> sa;
cout << "Please enter " << n << " quiz scores:\n";
for (int i = 0; i < n; i++)
cin >> sa[i];
while (cin.get() != '\n')
continue;
}
Here is a sample run:
Please enter the student's name: Gil Bayts Please enter 5 quiz scores: 92 94 96 93 95 Please enter the student's name: Pat Roone Please enter 5 quiz scores: 83 89 72 78 95 Please enter the student's name: Fleur O'Day Please enter 5 quiz scores: 92 89 96 78 64 Scores for Gil Bayts: 92 94 96 93 95 average: 94 Scores for Pat Roone: 83 89 72 78 95 average: 83.4 Scores for Fleur O'Day 92 89 96 78 64 average: 83.8
The same input as before leads to the same output as before.
Given that you can model a has-a relationship either with containment or with private inheritance, which should you use? Most C++ programmers prefer containment. First, it's easier to follow. When you look at the class declaration, you see explicitly named objects representing the contained classes, and your code can refer to these objects by name. Using inheritance makes the relationship appear more abstract. Second, inheritance can raise problems, particularly if a class inherits from more than one base class. You may have to deal with issues such as separate base classes having methods of the same name or of separate base classes sharing a common ancestor. All in all, you're less likely to run into trouble using containment. Also, containment allows you to include more than one subobject of the same class. If a class needs three String objects, you can declare three separate String members using the containment approach. But inheritance limits you to a single object. (It is difficult to tell objects apart when they all are nameless.)
However, private inheritance does offer features beyond those provided by containment. Suppose, for example, that a class has protected members, which could either be data members or member functions. Such members are available to derived classes, but not to the world at large. If you include such a class in another class using composition, the new class is part of the world at large, not a derived class. Hence it can't access protected members. But using inheritance makes the new class a derived class, so it can access protected members.
Another situation that calls for using private inheritance is if you want to redefine virtual functions. Again, this is a privilege accorded to a derived class but not to a containing class. With private inheritance, the redefined functions would be usable just within the class, not publicly.
Tip
|
|
In general, use containment to model a has-a relationship. Use private inheritance if the new class needs to access protected members in the original class or if it needs to redefine virtual functions. |
Protected inheritance is a variation on private inheritance. It uses the keyword protected when listing a base class:
class Student : protected String, protected ArrayDb {...};
With protected inheritance, public and protected members of a base class become protected members of the derived class. As with private inheritance, the interface for the base class is available to the derived class, but not to the outside world. The main difference between private and protected inheritance occurs when you derive another class from the derived class.
With private inheritance, this third-generation class doesn't get the internal use of the base class interface. That's because the public base class methods become private in the derived class, and private members and methods can't be directly accessed by the next level of derivation. With protected inheritance, public base methods become protected in the second generation and so are available internally to the next level of derivation.
Table 14.1 summarizes public, private, and protected inheritance. The term implicit upcasting means that you can have a base class pointer or reference refer to a derived class object without using an explicit type cast.
| Property | Public Inheritance | Protected Inheritance | Private Inheritance |
|---|---|---|---|
| Public members become | Public members of the derived class | Protected members of the derived class | Private members of become the derived class |
| Protected members become | Protected members of the derived class | Protected members of the derived class | Private members of the derived class |
| Private members become | Accessible only through the base class interface | Accessible only through the base class interface | Accessible only through the base class interface |
| Implicit upcasting | Yes | Yes (but only within the derived class) | No |
Public members of a base class become protected or private when you use protected or private derivation. The last example showed how the derived class can make a base class method available by having a derived class method use the base class method:
double Student::Average() const
{
return ArrayDb::Average();
}
There is an alternative to wrapping one function call in another, and that is to use a using- declaration (like those used with namespaces) to announce a particular base class member can be used by the derived class, even though the derivation is private. For example, in studenti.h, you can omit the declaration for Student::Average() and replace it with a using-declaration:
class Student : private String, private ArrayDb
{
public:
using ArrayDb::Average;
...
};
The using-declaration makes the ArrayDb::Average() method available as if it were a public Student method. That means you can drop the Student::Average() definition from studenti.cpp and still use Average() as before:
cout << "average: " << ada[i].Average() << "\n";
The difference is that now ArrayDb::Average() is called directly rather than through an intermediate call to Student::Average().
Note that the using-declaration just uses the member name梟o parentheses, no function signatures, no return types. For example, to make the ArrayDB operator[]() method available to the Student class, you'd place the following using-declaration in the public section of the Student class declaration:
using ArrayDb::operator[];
This would make both versions (const and non-const) available. The using-declaration approach works only for inheritance and not for containment.
There is an older way for redeclaring base-class methods in a privately derived class, and that's to place the method name in the public section of the derived class. Here's how that would be done:
class Student : private String, private ArrayDb
{
public:
ArrayDb::operator[]; // redeclare as public, just use name
...
};
It looks like a using-declaration without the using keyword. This approach is deprecated, meaning that the intention is to phase it out. So if your compiler supports the using- declaration, use it to make a method from a private base class available to the derived class.
Multiple inheritance (MI) describes a class that has more than one immediate base class. As with single inheritance, public multiple inheritance should express an is-a relationship. For example, if you have a Waiter class and a Singer class, you could derive a SingingWaiter class from the two:
class SingingWaiter : public Waiter, public Singer {...};
Note that you must qualify each base class with the keyword public. That's because the compiler assumes private derivation unless instructed otherwise:
class SingingWaiter : public Waiter, Singer {...}; // Singer is a private base
As discussed earlier in this chapter, private and protected MI can express a has-a relationship; the studenti.h implementation of the Student class is an example. We'll concentrate on public inheritance now.
Multiple inheritance can introduce new problems for the programmer. The two chief problems are inheriting different methods of the same name from two different base classes and inheriting multiple instances of a class via two or more related immediate base classes. Meeting these problems involves introducing a few new rules and syntax variations. Thus, using multiple inheritance can be more difficult and problem-prone than using single inheritance. For this reason, many in the C++ community object strongly to MI; some want it removed from the language. Others love MI and argue that it's very useful, even necessary, for particular projects. Still others suggest using MI cautiously and in moderation.
Let's explore a particular example and see what the problems and solutions are. We need several classes to create a multiple inheritance situation. We'll define an abstract Worker base class and derive a Waiter class and a Singer class from it. Then we can use MI to derive a SingingWaiter class from the Waiter and Singer classes (see Figure 14.3). This is a case in which a base class (Worker) is inherited via two separate derivations, which is the circumstance that causes the most difficulties with MI. We'll start with declarations for the Worker, Waiter, and Singer classes, as shown in Listing 14.9.
// worker0.h -- working classes
#ifndef WORKER0_H_
#define WORKER0_H_
#include "string1.h"
class Worker // an abstract base class
{
private:
String fullname;
long id;
public:
Worker() : fullname("no one"), id(0L) {}
Worker(const String & s, long n)
: fullname(s), id(n) {}
virtual ~Worker() = 0; // pure virtual destructor
virtual void Set();
virtual void Show() const;
};
class Waiter : public Worker
{
private:
int panache;
public:
Waiter() : Worker(), panache(0) {}
Waiter(const String & s, long n, int p = 0)
: Worker(s, n), panache(p) {}
Waiter(const Worker & wk, int p = 0)
: Worker(wk), panache(p) {}
void Set();
void Show() const;
};
class Singer : public Worker
{
protected:
enum {other, alto, contralto, soprano,
bass, baritone, tenor};
enum {Vtypes = 7};
private:
static char *pv[Vtypes]; // string equivs of voice types
int voice;
public:
Singer() : Worker(), voice(other) {}
Singer(const String & s, long n, int v = other)
: Worker(s, n), voice(v) {}
Singer(const Worker & wk, int v = other)
: Worker(wk), voice(v) {}
void Set();
void Show() const;
};
#endif
Next comes the implementation file, as shown in Listing 14.10.
// worker0.cpp -- working class methods
#include "worker.h"
#include <iostream>
using namespace std;
// Worker methods
// must implement virtual destructor, even if pure
Worker::~Worker() {}
void Worker::Set()
{
cout << "Enter worker's name: ";
cin >> fullname;
cout << "Enter worker's ID: ";
cin >> id;
while (cin.get() != '\n')
continue;
}
void Worker::Show() const
{
cout << "Name: " << fullname << "\n";
cout << "Employee ID: " << id << "\n";
}
// Waiter methods
void Waiter::Set()
{
Worker::Set();
cout << "Enter waiter's panache rating: ";
cin >> panache;
while (cin.get() != '\n')
continue;
}
void Waiter::Show() const
{
cout << "Category: waiter\n";
Worker::Show();
cout << "Panache rating: " << panache << "\n";
}
// Singer methods
char * Singer::pv[] = {"other", "alto", "contralto",
"soprano", "bass", "baritone", "tenor"};
void Singer::Set()
{
Worker::Set();
cout << "Enter number for singer's vocal range:\n";
int i;
for (i = 0; i < Vtypes; i++)
{
cout << i << ": " << pv[i] << " ";
if ( i % 4 == 3)
cout << '\n';
}
if (i % 4 != 0)
cout << '\n';
cin >> voice;
while (cin.get() != '\n')
continue;
}
void Singer::Show() const
{
cout << "Category: singer\n";
Worker::Show();
cout << "Vocal range: " << pv[voice] << "\n";
}
With these two files, you can write a program using these classes. However, they lead to some problems if we add a SingingWaiter class derived from both the Singer class and Waiter class. In particular, we'll need to face the following questions:
How many workers?
Which method?

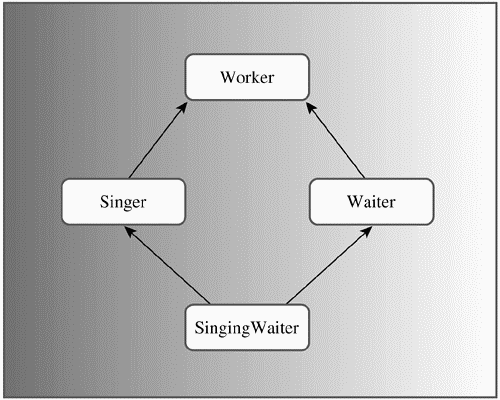

Suppose you begin by publicly deriving SingingWaiter from Singer and Waiter:
class SingingWaiter: public Singer, public Waiter {...};

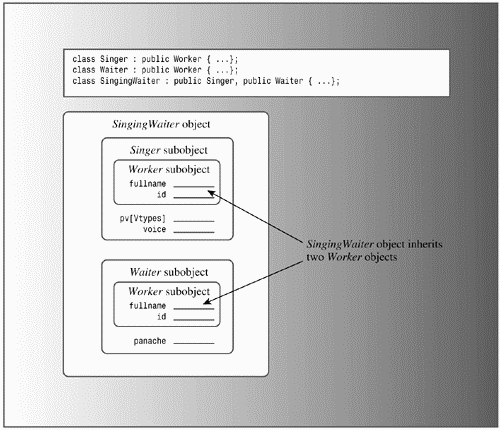

Because both Singer and Waiter inherit a Worker component, a SingingWaiter winds up with two Worker components (see Figure 14.4).
As you might expect, this raises problems. For example, ordinarily you can assign the address of a derived class object to a base class pointer, but this becomes ambiguous now:
SingingWaiter ed; Worker * pw = &ed; // ambiguous
Normally, such an assignment sets a base class pointer to the address of the base class object within the derived object. But ed contains two Worker objects, hence there are two addresses from which to choose. You could specify which object by using a type cast:
Worker * pw1 = (Waiter *) &ed; // the Worker in Waiter Worker * pw2 = (Singer *) &ed; // the Worker in Singer
This certainly complicates the technique of using an array of base class pointers to refer to a variety of objects (polymorphism).
Having two copies of a Worker object causes other problems, too. However, the real issue is why should you have two copies of a Worker object at all? A singing waiter, like any other worker, should have just one name and one ID. When C++ added multiple inheritance to its bag of tricks, it added a new technique, the virtual base class, to make this possible.
Virtual base classes allow an object derived from multiple bases that themselves share a common base to inherit just one object of that shared base class. For this example, you would make Worker a virtual base class to Singer and Waiter by using the keyword virtual in the class declarations (virtual and public can appear in either order):
class Singer : virtual public Worker {...};
class Waiter : public virtual Worker {...};
Then you would define SingingWaiter as before:
class SingingWaiter: public Singer, public Waiter {...};

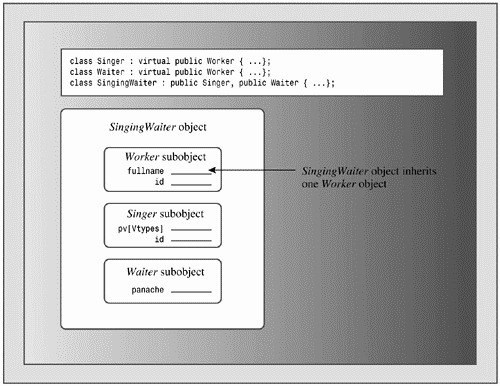

Now a SingingWaiter object will contain a single copy of a Worker object. In essence, the inherited Singer and Waiter objects share a common Worker object instead of each bringing in its own copy (see Figure 14.5). Because SingingWaiter now contains but one Worker subobject, you can use polymorphism again.
Let's look at some questions you may have:
Why the term virtual?
Why not dispense with declaring base classes virtual and make virtual behavior the norm for multiple inheritance?
Are there any catches?
First, why the term virtual? After all, there doesn't seem to be an obvious connection between the concepts of virtual functions and virtual base classes. It turns out that there is strong pressure from the C++ community to resist the introduction of new keywords. It would be awkward, for example, if a new keyword corresponded to the name of some important function or variable in a major program. So C++ merely recycled the keyword virtual for the new facility梐 bit of keyword overloading.
Next, why not dispense with declaring base classes virtual and make virtual behavior the norm for multiple inheritance? First, there are cases for which one might want multiple copies of a base. Second, making a base class virtual requires that a program do some additional accounting, and you shouldn't have to pay for that facility if you don't need it. Third, there are the disadvantages presented in the next paragraph.
Finally, are there catches? Yes. Making virtual base classes work requires adjustments to C++ rules, and you have to code some things differently. Also, using virtual base classes may involve changing existing code. For example, adding the SingingWaiter class to the Worker hierarchy required that you go back and add the virtual keyword to the Singer and Waiter classes.
Having virtual base classes requires a new approach to class constructors. With nonvirtual base classes, the only constructors that can appear in an initialization list are constructors for the immediate base classes. But these constructors can, in turn, pass information on to their bases. For example, you can have the following organization of constructors:
class A
{
int a;
public:
A(int n = 0) { a = n; }
...
};
class B: public A
{
int b;
public:
B(int m = 0, int n = 0) : A(n) : { b = m; }
...
};
class C : public B
{
int c;
public:
C(int q = 0, int m = 0, int n = 0) : B(m, n) { c = q; }
...
};
A C constructor can invoke only constructors from the B class, and a B constructor can invoke only constructors from the A class. Here the C constructor uses the q value and passes the values of m and n back to the B constructor. The B constructor uses the value of m and passes the value of n back to the A constructor.
This automatic passing of information doesn't work if Worker is a virtual base class. For example, consider the following possible constructor for the multiple inheritance example:
SingingWaiter(const Worker & wk, int p = 0, int v = Singer::other)
: Waiter(wk,p), Singer(wk,v) {} // flawed
The problem is that automatic passing of information would pass wk to the Worker object via two separate paths (Waiter and Singer). To avoid this potential conflict, C++ disables the automatic passing of information through an intermediate class to a base class if the base class is virtual. Thus, the previous constructor will initialize the panache and voice members, but the information in the wk argument won't get to the Waiter subobject. However, the compiler must construct a base object component before constructing derived objects; in the previous case, it will use the default Worker constructor.
If you want to use something other than the default constructor for a virtual base class, you need to invoke the appropriate base constructor explicitly. Thus, the constructor should look like this:
SingingWaiter(const Worker & wk, int p = 0, int v = Singer::other)
: Worker(wk), Waiter(wk,p), Singer(wk,v) {}
Here the code explicitly invokes the Worker(const Worker &) constructor. Note that this usage is legal and often necessary for virtual base classes and illegal for nonvirtual base classes.
Caution
|
|
If a class has an indirect virtual base class, a constructor for that class should explicitly invoke a constructor for the virtual base class unless all that is needed is the default constructor for the virtual base class. |
In addition to introducing changes in class constructor rules, MI often requires other coding adjustments. Consider the problem of extending the Show() method to the SingingWaiter class. Because a SingingWaiter object has no new data members, you might think the class could just use the inherited methods. This brings up the first problem. Suppose you do omit a new version of Show() and try to use a SingingWaiter object to invoke an inherited Show() method:
SingingWaiter newhire("Elise Hawks", 2005, 6, soprano);
newhire.Show(); // ambiguous
With single inheritance, failing to redefine Show() results in using the most recent ancestral definition. In this case, each direct ancestor has a Show() function, making this call ambiguous.
Caution
|
|
Multiple inheritance can result in ambiguous function calls. For example, a BadDude class could inherit two quite different Draw() methods from a Gunslinger class and a PokerPlayer class. |
You can use the scope resolution operator to clarify what you mean:
SingingWaiter newhire("Elise Hawks", 2005, 6, soprano);
newhire.Singer::Show(); // use Singer version
However, a better approach is to redefine Show() for SingingWaiter and to have it specify which Show() to use. For example, if you want a SingingWaiter object to use the Singer version, do this:
void SingingWaiter::Show()
{
Singer::Show();
}
This method of having the derived method call the base method works well enough for single inheritance. For example, suppose the HeadWaiter class derives from the Waiter class. You could use a sequence of definitions like this, with each derived class adding to the information displayed by its base class:
void Worker::Show() const
{
cout << "Name: " << fullname << "\n";
cout << "Employee ID: " << id << "\n";
}
void Waiter::Show() const
{
Worker::Show();
cout << "Panache rating: " << panache << "\n";
}
void HeadWaiter::Show() const
{
Waiter::Show();
cout << "Presence rating: " << presence << "\n";
}
This incremental approach fails for the SingingWaiter case, however. The method
void SingingWaiter::Show()
{
Singer::Show();
}
fails because it ignores the Waiter component. You can remedy that by called the Waiter version also:
void SingingWaiter::Show()
{
Singer::Show();
Waiter::Show();
}
This displays a person's name and ID twice, for Singer::Show() and with Waiter::Show() both call Worker::Show().
How can this be fixed? One way is to use a modular approach instead of an incremental approach. That is, provide a method that displays only Worker components, another method that displays only Waiter components (instead of Waiter plus Worker components), and another that displays only Singer components. Then the SingingWaiter::Show() method can put those components together. For example, you can do this:
void Worker::Data() const
{
cout << "Name: " << fullname << "\n";
cout << "Employee ID: " << id << "\n";
}
void Waiter::Data() const
{
cout << "Panache rating: " << panache << "\n";
}
void Singer::Data() const
{
cout << "Vocal range: " << pv[voice] << "\n";
}
void SingingWaiter::Data() const
{
Singer::Data();
Waiter::Data();
}
void SingingWaiter::Show() const
{
cout << "Category: singing waiter\n";
Worker::Data();
Data();
}
Similarly, the other Show() methods would be built from the appropriate Data() components.
With this approach, objects would still use the Show() method publicly. The Data() methods, on the other hand, should be internal to the classes, helper methods used to facilitate the public interface. However, making the Data() methods private would prevent, say, Waiter code from using Worker::Data(). Here is just the kind of situation for which the protected access class is useful. If the Data() methods are protected, they can by used internally by all the classes in the hierarchy while being kept hidden from the outside world.
Another approach would have been to make all the data components protected instead of private, but using protected methods instead of protected data puts tighter control on the allowable access to the data.
The Set() methods, which solicit data for setting object values, present a similar problem. SingingWaiter::Set(), for example, should ask for Worker information once, not twice. The same solution works. You can provide protected Get() methods that solicit information for just a single class, then put together Set() methods that use the Get() methods as building blocks.
In short, introducing multiple inheritance with a shared ancestor requires introducing virtual base classes, altering the rules for constructor initialization lists, and possibly recoding the classes if they had not been written with MI in mind. Listing 14.11 shows the modified class declarations instituting these changes, and Listing 14.12 shows the implementation.
// workermi.h -- working classes with MI
#ifndef WORKERMI_H_
#define WORKERMI_H_
#include "string1.h"
class Worker // an abstract base class
{
private:
String fullname;
long id;
protected:
virtual void Data() const;
virtual void Get();
public:
Worker() : fullname("no one"), id(0L) {}
Worker(const String & s, long n)
: fullname(s), id(n) {}
virtual ~Worker() = 0; // pure virtual function
virtual void Set() = 0;
virtual void Show() const = 0;
};
class Waiter : virtual public Worker
{
private:
int panache;
protected:
void Data() const;
void Get();
public:
Waiter() : Worker(), panache(0) {}
Waiter(const String & s, long n, int p = 0)
: Worker(s, n), panache(p) {}
Waiter(const Worker & wk, int p = 0)
: Worker(wk), panache(p) {}
void Set();
void Show() const;
};
class Singer : virtual public Worker
{
protected:
enum {other, alto, contralto, soprano,
bass, baritone, tenor};
enum {Vtypes = 7};
void Data() const;
void Get();
private:
static char *pv[Vtypes]; // string equivs of voice types
int voice;
public:
Singer() : Worker(), voice(other) {}
Singer(const String & s, long n, int v = other)
: Worker(s, n), voice(v) {}
Singer(const Worker & wk, int v = other)
: Worker(wk), voice(v) {}
void Set();
void Show() const;
};
// multiple inheritance
class SingingWaiter : public Singer, public Waiter
{
protected:
void Data() const;
void Get();
public:
SingingWaiter() {}
SingingWaiter(const String & s, long n, int p = 0,
int v = Singer::other)
: Worker(s,n), Waiter(s, n, p), Singer(s, n, v) {}
SingingWaiter(const Worker & wk, int p = 0, int v = Singer::other)
: Worker(wk), Waiter(wk,p), Singer(wk,v) {}
SingingWaiter(const Waiter & wt, int v = other)
: Worker(wt),Waiter(wt), Singer(wt,v) {}
SingingWaiter(const Singer & wt, int p = 0)
: Worker(wt),Waiter(wt,p), Singer(wt) {}
void Set();
void Show() const;
};
#endif
// workermi.cpp -- working class methods with MI
#include "workermi.h"
#include <iostream>
using namespace std;
// Worker methods
Worker::~Worker() { }
// protected methods
void Worker::Data() const
{
cout << "Name: " << fullname << "\n";
cout << "Employee ID: " << id << "\n";
}
void Worker::Get()
{
cin >> fullname;
cout << "Enter worker's ID: ";
cin >> id;
while (cin.get() != '\n')
continue;
}
// Waiter methods
void Waiter::Set()
{
cout << "Enter waiter's name: ";
Worker::Get();
Get();
}
void Waiter::Show() const
{
cout << "Category: waiter\n";
Worker::Data();
Data();
}
// protected methods
void Waiter::Data() const
{
cout << "Panache rating: " << panache << "\n";
}
void Waiter::Get()
{
cout << "Enter waiter's panache rating: ";
cin >> panache;
while (cin.get() != '\n')
continue;
}
// Singer methods
char * Singer::pv[Singer::Vtypes] = {"other", "alto", "contralto",
"soprano", "bass", "baritone", "tenor"};
void Singer::Set()
{
cout << "Enter singer's name: ";
Worker::Get();
Get();
}
void Singer::Show() const
{
cout << "Category: singer\n";
Worker::Data();
Data();
}
// protected methods
void Singer::Data() const
{
cout << "Vocal range: " << pv[voice] << "\n";
}
void Singer::Get()
{
cout << "Enter number for singer's vocal range:\n";
int i;
for (i = 0; i < Vtypes; i++)
{
cout << i << ": " << pv[i] << " ";
if ( i % 4 == 3)
cout << '\n';
}
if (i % 4 != 0)
cout << '\n';
cin >> voice;
while (cin.get() != '\n')
continue;
}
// SingingWaiter methods
void SingingWaiter::Data() const
{
Singer::Data();
Waiter::Data();
}
void SingingWaiter::Get()
{
Waiter::Get();
Singer::Get();
}
void SingingWaiter::Set()
{
cout << "Enter singing waiter's name: ";
Worker::Get();
Get();
}
void SingingWaiter::Show() const
{
cout << "Category: singing waiter\n";
Worker::Data();
Data();
}
Of course, curiosity demands we test these classes, and Listing 14.13 provides code to do so. Note that the program makes use of the polymorphic property by assigning the addresses of various kinds of classes to base class pointers. Compile it along with workermi.cpp and string1.cpp.
// workmi.cpp -- multiple inheritance
// compile with workermi.cpp, string1.cpp
#include <iostream>
using namespace std;
#include <cstring>
#include "workermi.h"
const int SIZE = 5;
int main()
{
Worker * lolas[SIZE];
int ct;
for (ct = 0; ct < SIZE; ct++)
{
char choice;
cout << "Enter the employee category:\n"
<< "w: waiter s: singer "
<< "t: singing waiter q: quit\n";
cin >> choice;
while (strchr("ewstq", choice) == NULL)
{
cout << "Please enter a w, s, t, or q: ";
cin >> choice;
}
if (choice == 'q')
break;
switch(choice)
{
case 'w': lolas[ct] = new Waiter;
break;
case 's': lolas[ct] = new Singer;
break;
case 't': lolas[ct] = new SingingWaiter;
break;
}
cin.get();
lolas[ct]->Set();
}
cout << "\nHere is your staff:\n";
int i;
for (i = 0; i < ct; i++)
{
cout << '\n';
lolas[i]->Show();
}
for (i = 0; i < ct; i++)
delete lolas[i];
cout << "Bye.\n";
return 0;
}
Here is a sample run:
Enter the employee category: w: waiter s: singer t: singing waiter q: quit w Enter waiter's name: Wally Slipshod Enter worker's ID: 1040 Enter waiter's panache rating: 4 Enter the employee category: w: waiter s: singer t: singing waiter q: quit s Enter singer's name: Sinclair Parma Enter worker's ID: 1044 Enter number for singer's vocal range: 0: other 1: alto 2: contralto 3: soprano 4: bass 5: baritone 6: tenor 5 Enter the employee category: w: waiter s: singer t: singing waiter q: quit t Enter singing waiter's name: Natasha Gargalova Enter worker's ID: 1021 Enter waiter's panache rating: 6 Enter number for singer's vocal range: 0: other 1: alto 2: contralto 3: soprano 4: bass 5: baritone 6: tenor 3 Enter the employee category: w: waiter s: singer t: singing waiter q: quit q Here is your staff: Category: waiter Name: Wally Slipshod Employee ID: 1040 Panache rating: 4 Category: singer Name: Sinclair Parma Employee ID: 1044 Vocal range: baritone Category: singing waiter Name: Natasha Gargalova Employee ID: 1021 Vocal range: soprano Panache rating: 6 Bye.
Let's look at a few more matters concerning multiple inheritance.
Consider again the case of a derived class that inherits a base class by more than one route. If the base class is virtual, the derived class contains one subobject of the base class. If the base class is not virtual, the derived class contains multiple subobjects. What if there is a mixture? Suppose, for example, that class B is a virtual base class to classes C and D and a nonvirtual base class to classes X and Y. Furthermore, suppose class M is derived from C, D, X, and Y. In this case, class M contains one class B subobject for all the virtually derived ancestors (that is, classes C and D) and a separate class B subobject for each nonvirtual ancestor (that is, classes X and Y). So, all told, it would contain three class B subobjects. When a class inherits a particular base class through several virtual paths and several nonvirtual paths, the class has one base-class subobject to represent all the virtual paths and a separate base-class subobject to represent each nonvirtual path.
Using virtual base classes alters how C++ resolves ambiguities. With nonvirtual base classes the rules are simple. If a class inherits two or more members (data or methods) of the same name from different classes, using that name without qualifying it with a class name is ambiguous. If virtual base classes are involved, however, such a use may or may not be ambiguous. In this case, if one name dominates all others, it can be used unambiguously without a qualifier.
So how does one member name dominate another? A name in a derived class dominates the same name in any ancestor class, direct or indirect. For example, consider the following definitions:
class B
{
public:
short q();
...
};
class C : virtual public B
{
public:
long q();
int omb()
...
};
class D : public C
{
...
};
class E : virtual public B
{
private:
int omb();
...
};
class F: public D, public E
{
...
};
Here the definition of q() in class C dominates the definition in class B because C is derived from B. Thus, methods in F can use q() to denote C::q(). On the other hand, neither definition of omb() dominates the other because neither C nor E is a base class to the other. Therefore, an attempt by F to use an unqualified omb() would be ambiguous.
The virtual ambiguity rules pay no attention to access rules. That is, even though E::omb() is private and hence not directly accessible to class F, using omb() is ambiguous. Similarly, even if C::q() were private, it would dominate D::q(). In that case, you could call B::q() in class F, but an unqualified q() for that would refer to the inaccessible C::q().
First, let's review multiple inheritance without virtual base classes. This form of MI imposes no new rules. However, if a class inherits two members of the same name but from different classes, you need to use class qualifiers in the derived class to distinguish between the two members. That is, methods in the BadDude class, derived from Gunslinger and PokerPlayer, would use Gunslinger::draw() and PokerPlayer::draw() to distinguish between draw() methods inherited from the two classes. Otherwise the compiler should complain about ambiguous usage.
If one class inherits from a nonvirtual base class by more than one route, then the class inherits one base class object for each nonvirtual instance of the base class. In some cases this may be what you want, but more often multiple instances of a base class are a problem.
Next, let's look at MI with virtual base classes. A class becomes a virtual base class when a derived class uses the keyword virtual when indicating derivation:
class marketing : public virtual reality { ... };
The main change, and the reason for virtual base classes, is that a class that inherits from one or more instances of a virtual base class inherits just one base class object. Implementing this feature entails other requirements:
A derived class with an indirect virtual base class should have its constructors invoke the indirect base class constructors directly, something which is illegal for indirect nonvirtual base classes.
Name ambiguity is resolved by the dominance rule.
As you can see, multiple inheritance can introduce programming complexities. However, most of these complexities arise when a derived class inherits from the same base class by more than one route. If you avoid that situation, about the only thing you need to watch for is qualifying inherited names when necessary.
Inheritance (public, private, or protected) and containment aren't always the answer to a desire to reuse code. Consider, for example, the Stack class (Chapter 10), the Queue class (Chapter 12), and the ArrayDb class (this chapter). These are all examples of container classes, which are classes designed to hold other objects or data types. The Stack class, for example, stored unsigned long values. You could just as easily define a stack class for storing double values or String objects. The code would be identical other than for the type of object stored. However, rather than writing new class declarations, it would be nice if you could define a stack in a generic (that is, type-independent) fashion and then provide a specific type as a parameter to the class. Then you could use the same generic code to produce stacks of different kinds of values. In Chapter 10, the Stack example used typedef as a first pass at dealing with this desire. However, that approach has a couple of drawbacks. First, you have to edit the header file each time you change the type. Second, you can use the technique to generate just one kind of stack per program. That is, you can't have a typedef represent two different types simultaneously, so you can't use the method to define a stack of ints and a stack of Strings in the same program.
C++'s class templates provide a better way to generate generic class declarations. (C++ originally did not support templates, and, since their introduction, templates have continued to evolve, so it is possible that your compiler may not support all the features presented here.) Templates provide parameterized types, that is, the capability of passing a type name as an argument to a recipe for building a class or a function. By feeding the type name int to a Queue template, for example, you can get the compiler to construct a Queue class for queuing ints.
C++'s Standard Template Library (STL), which Chapter 16 discusses in part, provides powerful and flexible template implementations of several container classes. This chapter will explore designs of a more elementary nature.
Let's use the Stack class from Chapter 10 as the basis from which to build a template. Here's the original class declaration:
typedef unsigned long Item;
class Stack
{
private:
enum {MAX = 10}; // constant specific to class
Item items[MAX]; // holds stack items
int top; // index for top stack item
public:
Stack();
bool isempty() const;
bool isfull() const;
// push() returns false if stack already is full, true otherwise
bool push(const Item & item); // add item to stack
// pop() returns false if stack already is empty, true otherwise
bool pop(Item & item); // pop top into item
};
The template approach will replace the Stack definition with a template definition and the Stack member functions with template member functions. As with template functions, you preface a template class with code of the following form:
template <class Type>
The keyword template informs the compiler that you're about to define a template. The part in angle brackets is analogous to an argument list to a function. You can think of the keyword class as serving as a type name for a variable that accepts a type as a value, and of Type representing a name for this variable.
Using class here doesn't mean that Type must be a class; it just means that Type serves as a generic type specifier for which a real type will be substituted when the template is used. Newer implementations allow you to use the less confusing keyword typename instead of class in this context:
template <typename Type> // newer choice
You can use your choice of generic typename in the Type position; the name rules are the same as those for any other identifier. Popular choices include T and Type; we'll use the latter. When a template is invoked, Type will be replaced with a specific type value, such as int or String. Within the template definition, use the generic typename to identify the type to be stored in the stack. For the Stack case, that would mean using Type wherever the old declaration formerly used the typedef identifier Item. For example,
Item items[MAX]; // holds stack items
becomes the following:
Type items[MAX]; // holds stack items
Similarly, you can replace the class methods of the original class with template member functions. Each function heading will be prefaced with the same template announcement:
template <class Type>
Again, replace the typedef identifier Item with the generic typename Type. One more change is that you need to change the class qualifier from Stack:: to Stack<Type>::. For example,
bool Stack::push(const Item & item)
{
...
}
becomes the following:
template <class Type> // or template <typename Type>
bool Stack<Type>::push(const Type & item)
{
...
}
If you define a method within the class declaration (an inline definition), you can omit the template preface and the class qualifier.
Listing 14.14 shows the combined class and member function templates. It's important to realize that these templates are not class and member function definitions. Rather, they are instructions to the C++ compiler about how to generate class and member function definitions. A particular actualization of a template, such as a stack class for handling String objects, is called an instantiation or specialization. Unless you have a compiler that has implemented the new export keyword, placing the template member functions in a separate implementation file won't work. Because the templates aren't functions, they can't be compiled separately. Templates have to be used in conjunction with requests for particular instantiations of templates. The simplest way to make this work is to place all the template information in a header file and to include the header file in the file that will use the templates.
// stacktp.h -- a stack template
#ifndef STACKTP_H_
#define STACKTP_H_
template <class Type>
class Stack
{
private:
enum {MAX = 10}; // constant specific to class
Type items[MAX]; // holds stack items
int top; // index for top stack item
public:
Stack();
bool isempty();
bool isfull();
bool push(const Type & item); // add item to stack
bool pop(Type & item); // pop top into item
};
template <class Type>
Stack<Type>::Stack()
{
top = 0;
}
template <class Type>
bool Stack<Type>::isempty()
{
return top == 0;
}
template <class Type>
bool Stack<Type>::isfull()
{
return top == MAX;
}
template <class Type>
bool Stack<Type>::push(const Type & item)
{
if (top < MAX)
{
items[top++] = item;
return true;
}
else
return false;
}
template <class Type>
bool Stack<Type>::pop(Type & item)
{
if (top > 0)
{
item = items[--top];
return true;
}
else
return false;
}
#endif
If your compiler does implement the new export keyword, you can place the template method definitions in a separate file providing you preface each definition with export:
export template <class Type>
Stack<Type>::Stack()
{
top = 0;
}
Then you could follow the same convention used for ordinary classes:
Place the template class declaration in a header file and use the #include directive to make the declaration available to a program.
Place the template class method definitions in a source code file and use a project file or equivalent to make the definitions available to a program.
Merely including a template in a program doesn't generate a template class. You have to ask for an instantiation. To do this, declare an object of the template class type, replacing the generic typename with the particular type you want. For example, here's how you would create two stacks, one for stacking ints and one for stacking String objects:
Stack<int> kernels; // create a stack of ints Stack<String> colonels; // create a stack of String objects
Seeing these two declarations, the compiler will follow the Stack<Type> template to generate two separate class declarations and two separate sets of class methods. The Stack<int> class declaration will replace Type throughout with int, while the Stack<String> class declaration will replace Type throughout with String. Of course, the algorithms you use have to be consistent with the types. The stack class, for example, assumes that you can assign one item to another. This assumption is true for basic types, structures, and classes (unless you make the assignment operator private), but not for arrays.
Generic type identifiers such as Type in the example are called type parameters, meaning that they act something like a variable, but instead of assigning a numeric value to them, you assign a type to them. So in the kernel declaration, the type parameter Type has the value int.
Notice that you have to provide the desired type explicitly. This is different from ordinary function templates, for which the compiler can use the argument types to a function to figure out what kind of function to generate:
Template <class T>
void simple(T t) { cout << t << '\n';}
...
simple(2); // generate void simple(int)
simple("two") // generate void simple(char *)
Listing 14.15 modifies the original stack-testing program (Listing 11.13) to use string purchase order IDs instead of unsigned long values. Because it uses our String class, compile it with string1.cpp.
// stacktem.cpp -- test template stack class
// compiler with string1.cpp
#include <iostream>
using namespace std;
#include <cctype>
#include "stacktp.h"
#include "string1.h"
int main()
{
Stack<String> st; // create an empty stack
char c;
String po;
cout << "Please enter A to add a purchase order,\n"
<< "P to process a PO, or Q to quit.\n";
while (cin >> c && toupper != 'Q')
{
while (cin.get() != '\n')
continue;
if (!isalpha)
{
cout << '\a';
continue;
}
switch
{
case 'A':
case 'a': cout << "Enter a PO number to add: ";
cin >> po;
if (st.isfull())
cout << "stack already full\n";
else
st.push(po);
break;
case 'P':
case 'p': if (st.isempty())
cout << "stack already empty\n";
else {
st.pop(po);
cout << "PO #" << po << " popped\n";
break;
}
}
cout << "Please enter A to add a purchase order,\n"
<< "P to process a PO, or Q to quit.\n";
}
cout << "Bye\n";
return 0;
}
Compatibility Note
|
|
Use the older ctype.h header file if your implementation doesn't provide cctype. |
Here's a sample run:
Please enter A to add a purchase order, P to process a PO, or Q to quit. A Enter a PO number to add: red911porsche Please enter A to add a purchase order, P to process a PO, or Q to quit. A Enter a PO number to add: greenS8audi Please enter A to add a purchase order, P to process a PO, or Q to quit. A Enter a PO number to add: silver747boing Please enter A to add a purchase order, P to process a PO, or Q to quit. P PO #silver747boing popped Please enter A to add a purchase order, P to process a PO, or Q to quit. P PO #greenS8audi popped Please enter A to add a purchase order, P to process a PO, or Q to quit. P PO #red911porsche popped Please enter A to add a purchase order, P to process a PO, or Q to quit. P stack already empty Please enter A to add a purchase order, P to process a PO, or Q to quit. Q Bye
You can use a built-in type or a class object as the type for the Stack<Type> class template. What about a pointer? For example, can you use a pointer to a char instead of a String object in Listing 14.15? After all, such pointers are the built-in way for handling C++ strings. The answer is that you can create a stack of pointers, but it won't work very well without major modifications in the program. The compiler can create the class, but it's your task to see that it's used sensibly. Let's see why such a stack of pointers doesn't work very well with Listing 14.11, then let's look at an example where a stack of pointers is useful.
We'll quickly look at three simple, but flawed, attempts to adapt Listing 14.15 to use a stack of pointers. These attempts illustrate the lesson that you should keep the design of a template in mind and not just use it blindly. All three begin with this perfectly valid invocation of the Stack<Type> template:
Stack<char *> st; // create a stack for pointers-to-char
Version 1 then replaces
String po;
with
char * po;
The idea is to use a char pointer instead of a String object to receive the keyboard input. This approach fails immediately because merely creating a pointer doesn't create space to hold the input strings. (The program would compile, but quite possibly would crash after cin tried to store input in some inappropriate location.)
Version 2 replaces
String po;
with
char po[40];
This allocates space for an input string. Furthermore, po is of type char *, so it can be placed on the stack. But an array is fundamentally at odds with the assumptions made for the pop() method:
template <class Type>
bool Stack<Type>::pop(Type & item)
{
if (top > 0)
{
item = items[--top];
return true;
}
else
return false;
}
First, the reference variable item has to refer to an Lvalue of some sort, not to an array name. Second, the code assumes that you can assign to item. Even if item could refer to an array, you can't assign to an array name. So this approach fails, too.
Version 3 replaces
String po;
with
char * po = new char[40];
This allocates space for an input string. Furthermore, po is a variable and hence compatible with the code for pop(). Here, however, we come up against the most fundamental problem. There is only one po variable, and it always points to the same memory location. True, the contents of the memory change each time a new string is read, but every push operation puts exactly the same address onto the stack. So when you pop the stack, you always get the same address back, and it always refers to the last string read into memory. In particular, the stack is not storing each new string as it comes in, and it serves no useful purpose.
One way to use a stack of pointers is to have the calling program provide an array of pointers, with each pointer pointing to a different string. Putting these pointers on a stack then makes sense, for each pointer will refer to a different string. Note that it is the responsibility of the calling program, not the stack, to create the separate pointers. The stack's job is to manage the pointers, not create them.
For example, suppose we have to simulate the following situation. Someone has delivered a cart of folders to Plodson. If Plodson's in-basket is empty, he removes the top folder from the cart and places it in his in-basket. If his in-basket is full, Plodson removes the top file from the basket, processes it, and places it in his out-basket. If the in-basket is neither empty nor full, Plodson may process the top file in the in-basket, or he may take the next file from the cart and put it into his in-basket. In what he secretly regards as a bit of madcap self-expression, he flips a coin to decide which of these actions to take. We'd like to investigate the effects of his method on the original file order.
We can model this with an array of pointers to strings representing the files on the cart. Each string will contain the name of the person described by the file. We can use a stack to represent the in-basket, and we can use a second array of pointers to represent the out-basket. Adding a file to the in-basket is represented by pushing a pointer from the input array onto the stack, and processing a file is represented by popping an item from the stack, and adding it to the out-basket.
Given the importance of examining all aspects of this problem, it would be useful to be able to try different stack sizes. Listing 14.16 redefines the Stack<Type> class slightly so that the Stack constructor accepts an optional size argument. This involves using a dynamic array internally, so the class now needs a destructor, a copy constructor, and an assignment operator. Also, the definition shortens the code by making several of the methods inline.
// stcktp1.h -- modified Stack template
#ifndef STCKTP1_H_
#define STCKTP1_H_
template <class Type>
class Stack
{
private:
enum {SIZE = 10}; // default size
int stacksize;
Type * items; // holds stack items
int top; // index for top stack item
public:
explicit Stack(int ss = SIZE);
Stack(const Stack & st);
~Stack() { delete [] items; }
bool isempty() { return top == 0; }
bool isfull() { return top == stacksize; }
bool push(const Type & item); // add item to stack
bool pop(Type & item); // pop top into item
Stack & operator=(const Stack & st);
};
template <class Type>
Stack<Type>::Stack(int ss) : stacksize(ss), top(0)
{
items = new Type [stacksize];
}
template <class Type>
Stack<Type>::Stack(const Stack & st)
{
stacksize = st.stacksize;
top = st.top;
items = new Type [stacksize];
for (int i = 0; i < top; i++)
items[i] = st.items[i];
}
template <class Type>
bool Stack<Type>::push(const Type & item)
{
if (top < stacksize)
{
items[top++] = item;
return true;
}
else
return false;
}
template <class Type>
bool Stack<Type>::pop(Type & item)
{
if (top > 0)
{
item = items[--top];
return true;
}
else
return false;
}
template <class Type>
Stack<Type> & Stack<Type>::operator=(const Stack<Type> & st)
{
if (this == &st)
return *this;
delete [] items;
stacksize = st.stacksize;
top = st.top;
items = new Type [stacksize];
for (int i = 0; i < top; i++)
items[i] = st.items[i];
return *this;
}
#endif
Compatibility Note
|
|
Some implementations might not recognize explicit. |
Notice that the prototype declares the return type for the assignment operator function to be a reference to Stack while the actual template function definition identifies the type as Stack<Type>. The former is an abbreviation for the latter, but it can be used only within the class scope. That is, you can use Stack inside the template declaration and inside the template function definitions, but outside the class, as when identifying return types and when using the scope resolution operator, you need to use the full Stack<Type> form.
The program in Listing 14.17 uses the new stack template to implement the Plodson simulation. It uses rand(), srand(), and time() in the same way previous simulations have to generate random numbers. Here, randomly generating a 0 or a 1 simulates the coin toss.
// stkoptr1.cpp -- test stack of pointers
#include <iostream>
using namespace std;
#include <cstdlib> // for rand(), srand()
#include <ctime> // for time()
#include "stcktp1.h"
const int Stacksize = 4;
const int Num = 10;
int main()
{
srand(time(0)); // randomize rand()
cout << "Please enter stack size: ";
int stacksize;
cin >> stacksize;
Stack<const char *> st(stacksize); // create an empty stack with 4 slots
const char * in[Num] = {
" 1: Hank Gilgamesh", " 2: Kiki Ishtar",
" 3: Betty Rocker", " 4: Ian Flagranti",
" 5: Wolfgang Kibble", " 6: Portia Koop",
" 7: Joy Almondo", " 8: Xaverie Paprika",
" 9: Juan Moore", "10: Misha Mache"
};
const char * out[Num];
int processed = 0;
int nextin = 0;
while (processed < Num)
{
if (st.isempty())
st.push(in[nextin++]);
else if (st.isfull())
st.pop(out[processed++]);
else if (rand() % 2 && nextin < Num) // 50-50 chance
st.push(in[nextin++]);
else
st.pop(out[processed++]);
}
for (int i = 0; i < Num; i++)
cout << out[i] << "\n";
cout << "Bye\n";
return 0;
}
Compatibility Note
|
|
Some implementations require stdlib.h instead of cstdlib and time.h instead of ctime. |
Two sample runs follow. Note that the final file ordering can differ quite a bit from one trial to the next, even when the stack size is kept unaltered.
Please enter stack size: 5 2: Kiki Ishtar 1: Hank Gilgamesh 3: Betty Rocker 5: Wolfgang Kibble 4: Ian Flagranti 7: Joy Almondo 9: Juan Moore 8: Xaverie Paprika 6: Portia Koop 10: Misha Mache Bye Please enter stack size: 5 3: Betty Rocker 5: Wolfgang Kibble 6: Portia Koop 4: Ian Flagranti 8: Xaverie Paprika 9: Juan Moore 10: Misha Mache 7: Joy Almondo 2: Kiki Ishtar 1: Hank Gilgamesh Bye
The strings themselves never move. Pushing a string onto the stack really creates a new pointer to an existing string. That is, it creates a pointer whose value is the address of an existing string. And popping a string off the stack copies that address value into the out array.
The program uses const char * as a type because the array of pointers is initialized to a set of string constants.
What effect does the stack destructor have upon the strings? None. The class constructor uses new to create an array for holding pointers. The class destructor eliminates that array, not the strings to which the array elements pointed.
Templates frequently are used for container classes, for the idea of type parameters matches well with the need to apply a common storage plan to a variety of types. Indeed, the desire to provide reusable code for container classes was the main motivation for introducing templates, so let's look at another example, exploring a few more facets of template design and use. In particular, we'll look at non-type, or expression, arguments and at using an array to handle an inheritance family.
Let's begin with a simple array template that lets you specify an array size. One technique, which the last version of the Stack template used, is using a dynamic array within the class and a constructor argument to provide the number of elements. Another approach is using a template argument to provide the size for a regular array. Listing 14.18 shows how this can be done.
//arraytp.h -- Array Template
#ifndef ARRAYTP_H_
#define ARRAYTP_H_
#include <iostream>
using namespace std;
#include <cstdlib>
template <class T, int n>
class ArrayTP
{
private:
T ar[n];
public:
ArrayTP() {};
explicit ArrayTP(const T & v);
virtual T & operator[](int i);
virtual const T & operator[](int i) const;
};
template <class T, int n>
ArrayTP<T,n>::ArrayTP(const T & v)
{
for (int i = 0; i < n; i++)
ar[i] = v;
}
template <class T, int n>
T & ArrayTP<T,n>::operator[](int i)
{
if (i < 0 || i >= n)
{
cerr << "Error in array limits: " << i
<< " is out of range\n";
exit(1);
}
return ar[i];
}
template <class T, int n>
const T & ArrayTP<T,n>::operator[](int i) const
{
if (i < 0 || i >= n)
{
cerr << "Error in array limits: " << i
<< " is out of range\n";
exit(1);
}
return ar[i];
}
#endif
Note the template heading:
template <class T, int n>
The keyword class (or, equivalently in this context, typename) identifies T as a type parameter, or type argument. The int identifies n as being an int type. This second kind of parameter, one which specifies a particular type instead of acting as a generic name for a type, is called a non-type or expression argument. Suppose you have the following declaration:
ArrayTP<double, 12> eggweights;
This causes the compiler to define a class called ArrayTP<double,12> and to create an eggweights object of that class. When defining the class, the compiler replaces T with double and n with 12.
Expression arguments have some restrictions. An expression argument can be an integral type, an enumeration type, a reference, or a pointer. Thus, double m is ruled out, but double & rm and double * pm are allowed. Also, the template code can't alter the value of the argument or take its address. Thus, in the ArrayTP template, expressions such as n++ or &n would not be allowed. Also, when you instantiate a template, the value used for the expression argument should be a constant expression.
This approach for sizing an array has one advantage over the constructor approach used in Stack. The constructor approach uses heap memory managed by new and delete, while the expression argument approach uses the memory stack maintained for automatic variables. This provides faster execution time, particularly if you have a lot of small arrays.
The main drawback to the expression argument approach is that each array size generates its own template. That is, the declarations
ArrayTP<double, 12> eggweights; ArrayTP(double, 13> donuts;
generate two separate class declarations. But the declarations
Stack<int> eggs(12); Stack<int> dunkers(13);
generate just one class declaration, and the size information is passed to the constructor for that class.
Another difference is that the constructor approach is more versatile because the array size is stored as a class member rather than being hard-coded into the definition. This makes it possible, for example, to define assignment from an array of one size to an array of another size or to build a class that allows resizable arrays.
You can apply the same techniques to template classes as you do to regular classes. Template classes can serve as base classes, and they can be component classes. They can themselves be type arguments to other templates. For example, you can implement a stack template using an array template. Or you can have an array template used to construct an array whose elements are stacks based on a stack template. That is, you can have code along the following lines:
template <class T>
class Array
{
private:
T entry;
...
};
template <class Type>
class GrowArray : public Array<Type> {...}; // inheritance
template <class Tp>
class Stack
{
Array<Tp> ar; // use an Array<> as a component
...
};
...
Array < Stack<int> > asi; // an array of stacks of int
In the last statement, you must separate the two > symbols by at least one whitespace character in order to avoid confusion with the >> operator.
Another example of template versatility is that you can use templates recursively. For example, given the earlier definition of an array template, you can use it as follows:
ArrayTP< ArrayTP<int,5>, 10> twodee;
This makes twodee an array of 10 elements, each of which is an array of 5 ints. The equivalent ordinary array would have this declaration:
int twodee[10][5];
Note the syntax for templates presents the dimensions in the opposite order from that of the equivalent ordinary two-dimensional array. The program in Listing 14.19 tries this idea. It also uses the ArrayTP template to create one-dimensional arrays to hold the sum and average value of each of the ten sets of five numbers. The method call cout.width(2) causes the next item to be displayed to use a field width of 2 characters, unless a larger width is needed to show the whole number.
// twod.cpp -- making a 2-d array
#include <iostream>
using namespace std;
#include "arraytp.h"
int main(void)
{
ArrayTP<int, 10> sums;
ArrayTP<double, 10> aves;
ArrayTP< ArrayTP<int,5>, 10> twodee;
int i, j;
for (i = 0; i < 10; i++)
{
sums[i] = 0;
for (j = 0; j < 5; j++)
{
twodee[i][j] = (i + 1) * (j + 1);
sums[i] += twodee[i][j];
}
aves[i] = (double) sums[i] / 10;
}
for (i = 0; i < 10; i++)
{
for (j = 0; j < 5; j++)
{
cout.width(2);
cout << twodee[i][j] << ' ';
}
cout << ": sum = ";
cout.width(3);
cout << sums[i] << ", average = " << aves[i] << endl;
}
cout << "Done.\n";
return 0;
}
Here's the output:
1 2 3 4 5 : sum = 15, average = 1.5 2 4 6 8 10 : sum = 30, average = 3 3 6 9 12 15 : sum = 45, average = 4.5 4 8 12 16 20 : sum = 60, average = 6 5 10 15 20 25 : sum = 75, average = 7.5 6 12 18 24 30 : sum = 90, average = 9 7 14 21 28 35 : sum = 105, average = 10.5 8 16 24 32 40 : sum = 120, average = 12 9 18 27 36 45 : sum = 135, average = 13.5 10 20 30 40 50 : sum = 150, average = 15 Done.
You can have templates with more than one type parameter. For example, suppose you want a class that holds two kinds of values. You can create and use a Pair template class for holding two disparate values. (Incidentally, the Standard Template Library provides a similar template called pair.) The short program in Listing 14.20 shows an example.
// pairs.cpp -- define and use a Pair template
#include <iostream>
using namespace std;
template <class T1, class T2>
class Pair
{
private:
T1 a;
T2 b;
public:
T1 & first(const T1 & f);
T2 & second(const T2 & s);
T1 first() const { return a; }
T2 second() const { return b; }
Pair(const T1 & f, const T2 & s) : a, b(s) { }
};
template<class T1, class T2>
T1 & Pair<T1,T2>::first(const T1 & f)
{
a = f;
return a;
}
template<class T1, class T2>
T2 & Pair<T1,T2>::second(const T2 & s)
{
b = s;
return b;
}
int main()
{
Pair<char *, int> ratings[4] =
{
Pair<char *, int>("The Purple Duke", 5),
Pair<char *, int>("Jake's Frisco Cafe", 4),
Pair<char *, int>("Mont Souffle", 5),
Pair<char *, int>("Gertie's Eats", 3)
};
int joints = sizeof(ratings) / sizeof (Pair<char *, int>);
cout << "Rating:\t Eatery\n";
for (int i = 0; i < joints; i++)
cout << ratings[i].second() << ":\t "
<< ratings[i].first() << "\n";
ratings[3].second(6);
cout << "Oops! Revised rating:\n";
cout << ratings[3].second() << ":\t "
<< ratings[3].first() << "\n";
return 0;;
}
One thing to note is that in main(), you have to use Pair<char *,int> to invoke the constructors and as an argument for sizeof. That's because Pair<char *,int> and not Pair is the class name. Also, Pair<String,ArrayDb> would be the name of an entirely different class.
Here's the program output:
Rating: Eatery 5: The Purple Duke 4: Jake's Frisco Cafe 5: Mont Souffle 3: Gertie's Eats Oops! Revised rating: 6: Gertie's Eats
Another new class template feature is that you can provide default values for type parameters:
template <class T1, class T2 = int> class Topo {...};
This causes the compiler to use int for the type T2 if a value for T2 is omitted:
Topo<double, double> m1; // T1 is double, T2 is double Topo<double> m2; // T1 is double, T2 is int
The Standard Template Library (Chapter 16) often uses this feature, with the default type being a class.
Although you can provide default values for class template type parameters, you can't do so for function template parameters. However, you can provide default values for non-type parameters for both class and function templates.
Class templates are like function templates in that you can have implicit instantiations, explicit instantiations, and explicit specializations, collectively known as specializations. That is, a template describes a class in terms of a general type, while a specialization is a class declaration generated using a specific type.
The examples that you have seen so far used implicit instantiations. That is, they declare one or more objects indicating the desired type, and the compiler generates a specialized class definition using the recipe provided by the general template:
ArrayTb<int, 100> stuff; // implicit instantiation
The compiler doesn't generate an implicit instantiation of the class until it needs an object:
ArrayTb<double, 30> * pt; // a pointer, no object needed yet pt = new ArrayTb<double, 30>; // now an object is needed
The second statement causes the compiler to generate a class definition and also an object created according to that definition.
The compiler generates an explicit instantiation of a class declaration when you declare a class using the keyword template and indicating the desired type or types. The declaration should be in the same namespace as the template definition. For example, the declaration
template class ArrayTb<String, 100>; // generate ArrayTB<String, 100> class
declares ArrayTb<String, 100> to be a class. In this case the compiler generates the class definition, including method definitions, even though no object of the class has yet been created or mentioned. Just as with the implicit instantiation, the general template is used as a guide to generate the specialization.
The explicit specialization is a definition for a particular type or types that is to be used instead of the general template. Sometimes you may need or want to modify a template to behave differently when instantiated for a particular type; in that case you can create an explicit specialization. Suppose, for example, that you've defined a template for a class representing a sorted array for which items are sorted as they are added to the array:
template <class T>
class SortedArray
{
...// details omitted
};
Also, suppose the template uses the > operator to compare values. This works well for numbers. It will work if T represents a class type, too, provided that you've defined a T::operator>() method. But it won't work if T is a string represented by type char *. Actually, the template will work, but the strings will wind up sorted by address rather than alphabetically. What is needed is a class definition that uses strcmp() instead of >. In such a case, you can provide an explicit template specialization. This takes the form of a template defined for one specific type instead of for a general type. When faced with the choice of a specialized template and a general template that both match an instantiation request, the compiler will use the specialized version.
A specialized class template definition has the following form:
template <> class Classname<specialized-type-name> { ... };
Older compilers may only recognize the older form, which dispenses with the template <>:
class Classname<specialized-type-name> { ... };
To provide a SortedArray template specialized for the char * type using the new notation, you would use code like the following:
template <> class SortedArray<char *>
{
...// details omitted
};
Here the implementation code would use strcmp() instead of > to compare array values. Now, requests for a SortedArray of char * will use this specialized definition instead of the more general template definition:
SortedArray<int> scores; // use general definition SortedArray<char *> dates; // use specialized definition
C++ also allows for partial specializations, which partially restrict the generality of a template. A partial specialization, for example, can provide a specific type for one of the type parameters:
// general template
template <class T1, class T2> class Pair {...};
// specialization with T2 set to int
template <class T1> class Pair<T1, int> {...};
The <> following the keyword template declares the type parameters that are still unspecialized. So the second declaration specializes T2 to int but leaves T1 open. Note that specifying all the types leads to an empty bracket pair and a complete explicit specialization:
// specialization with T1 and T2 set to int
template <> class Pair<int, int> {...};
The compiler uses the most specialized template if there is a choice:
Pair<double, double> p1; // use general Pair template Pair<double, int> p2; // use Pair<T1, int> partial specialization Pair<int, int> p3; // use Pair<int, int> explicit specialization
Or you can partially specialize an existing template by providing a special version for pointers:
template<class T> // general version
class Feeb { ... };
template<class T*> // pointer partial specialization
class Feeb { ... }; // modified code
If you provide a non-pointer type, the compiler will use the general version; if you provide a pointer, the compiler will use the pointer specialization:
Feeb<char> fb1; // use general Feeb template, T is char Feeb<char *> fb2; // use Feeb T* specialization, T is char
Without the partial specialization, the second declaration would have used the general template, interpreting T as type char *. With the partial specialization, it uses the specialized template, interpreting T as char.
The partial specialization feature allows for making a variety of restrictions. For example, you can do the following:
// general template
template <class T1, class T2, class T3> class Trio{...};
// specialization with T3 set to T2
template <class T1, class T2> class Trio<T1, T2, T2> {...};
// specialization with T3 and T2 set to T1*
template <class T1> class Trio<T1, T1*, T1*> {...};
Given these declarations, the compiler would make the following choices:
Trio<int, short, char *> t1; // use general template Trio<int, short> t2; // use Trio<T1, T2, T2> Trio<char, char *, char *> t3; use Trio<T1, T1*, T1*>
Another of the more recent additions to C++ template support is that a template can be a member of a structure, class, or template class. The Standard Template Library requires this feature to fully implement its design. Listing 14.21 provides a short example of a template class with a nested template class and a template function as members.
// tempmemb.cpp -- template members
#include <iostream>
using namespace std;
template <typename T>
class beta
{
private:
template <typename V> // nested template class member
class hold
{
private:
V val;
public:
hold(V v = 0) : val(v) {}
void show() const { cout << val << endl; }
V Value() const { return val; }
};
hold<T> q; // template object
hold<int> n; // template object
public:
beta( T t, int i) : q(t), n(i) {}
template<typename U> // template method
U blab(U u, T t) { return (n.Value() + q.Value()) * u / t; }
void Show() const {q.show(); n.show();}
};
int main()
{
beta<double> guy(3.5, 3);
guy.Show();
cout << guy.blab(10, 2.3) << endl;
cout << "Done\n";
return 0;
}
The hold template is declared in the private section, so it is accessible only within the beta class scope. The beta class uses the hold template to declare two data members:
hold<T> q; // template object hold<int> n; // template object
The n is a hold object based on the int type, while the q member is a hold object based on the T type (the beta template parameter). In main(), the declaration
beta<double> guy(3.5, 3);
makes T represent double, making q type hold<double>.
The blab() method has one type (U) that is determined implicitly by the argument value when the method is called and one type (T) that is determined by the instantiation type of the object. In this example, the declaration for guy sets T to type double, and the first argument in the method call in
cout << guy.blab(10, 2.5) << endl;
sets U to type int. Thus, although the automatic type conversions brought about by mixed types cause the calculation in blab() to be done as type double, the return value, being type U, is an int, as the following program output shows:
3.5 3 28 Done
If you replace the 10 with 10.0 in the call to guy.blab(), U is set to double, making the return type double, and you get this output instead:
3.5 3 28.2609 Done
As mentioned, the type of the second parameter is set to double by the declaration of the guy object. Unlike the first parameter, then, the type of the second parameter is not set by the function call. For instance, the statement
cout << guy.blab(10, 3) << endl;
would still implement blah() as blah(int, double), and the 3 would be converted to type double by the usual function prototype rules.
You can declare the hold class and blah method in the beta template and define them outside the beta template. However, because implementing templates is still a new process, it may be more difficult to get the compiler to accept these forms. Some compilers may not accept template members at all, and others that accept them as shown in Listing 14.21 don't accept definitions outside the class. However, if your compiler is willing and able, here's how defining the template methods outside the beta template would look:
template <typename T>
class beta
{
private:
template <typename V> // declaration
class hold;
hold<T> q;
hold<int> n;
public:
beta( T t, int i) : q(t), n(i) {}
template<typename U> // declaration
U blab(U u, T t);
void Show() const {q.show(); n.show();}
};
// member definition
template <typename T>
template<typename V>
class beta<T>::hold
{
private:
V val;
public:
hold(V v = 0) : val(v) {}
void show() const { cout << val << endl; }
V Value() const { return val; }
};
// member definition
template <typename T>
template <typename U>
U beta<T>::blab(U u, T t)
{
return (n.Value() + q.Value()) * u / t;
}
The definitions have to identify T, V, and U as template parameters. Because the templates are nested, you have to use the
template <typename T> template <typename V>
syntax instead of the
template<typename T, typename V>
syntax. The definitions also must indicate that hold and blab are members of the beta<T>class, and they use the scope resolution operator to do so.
You've seen that a template can have type parameters, such as typename T, and non-type parameters, such as int n. A template also can have a parameter that is itself a template. Such parameters are yet another recent addition to templates that is used to implement the Standard Template Library.
Listing 14.22 shows an example for which the template parameter is template <typename T> class Thing. Here template <typename T> class is the type and Thing is the parameter. What does this imply? Suppose you have this declaration:
Crab<King> legs;
For this to be accepted, the template argument King has to be a template class whose declaration matches that of the template parameter Thing:
template <typename T>
class King {...};
The Crab declaration declares two objects:
Thing<int> s1; Thing<double> s2;
The previous declaration for legs would then result in substituting King<int> for Thing<int> and King<double> for Thing<double>. Listing 14.22, however, has this declaration:
Crab<Stack> nebula;
Hence, in this case, Thing<int> is instantiated as Stack<int> and Thing<double> is instantiated as Stack<double>. In short, the template parameter Thing is replaced by whatever template type is used as a template argument in declaring a Crab object.
The Crab class declaration makes three further assumptions about the template class represented by Thing. The class should have a push() method, the class should have a pop() method, and these methods should have a particular interface. The Crab class can use any template class that matches the Thing type declaration and which has the prerequisite push() and pop() methods. This chapter happens to have one such class, the Stack template defined in stacktp.h, so the example uses that class.
// tempparm.cpp -- template template parameters
#include <iostream>
using namespace std;
#include "stacktp.h"
template <template <typename T> class Thing>
class Crab
{
private:
Thing<int> s1;
Thing<double> s2;
public:
Crab() {};
// assumes the thing class has push() and pop() members
bool push(int a, double x) { return s1.push(a) && s2.push(x); }
bool pop(int & a, double & x){ return s1.pop(a) && s2.pop(x); }
};
int main()
{
Crab<Stack> nebula;
// Stack must match template <typename T> class thing
int ni;
double nb;
while (cin>> ni >> nb && ni > 0 && nb > 0)
{
if (!nebula.push(ni, nb))
break;
}
while (nebula.pop(ni, nb))
cout << ni << ", " << nb << endl;
cout << "Done.\n";
return 0;
}
Here is a sample run:
50 11.23 14 91.82 88 17.91 0 0 88, 17.91 14, 91.82 50, 11.23 Done.
Template class declarations can have friends, too. We can classify friends of templates into three categories:
Nontemplate friends
Bound template friends, meaning the type of the friend is determined by the type of the class when a class is instantiated
Unbound template friends, meaning that all specializations of the friend are friends to each specialization of the class
We'll look at examples of each.
Let's declare an ordinary function in a template class as a friend:
template <class T>
class HasFriend
{
friend void counts(); // friend to all HasFriend instantiations
...
};
This declaration makes the counts() function a friend to all possible instantiations of the template. For example, it would be a friend to the HasFriend<int> class and the HasFriend<String> class.
The counts() function is not invoked by an object (it's a friend, not a member function) and it has no object parameters, so how does it access a HasFriend object? There are several pos sibilities. It could access a global object; it could access nonglobal objects by using a global pointer; it could create its own objects; it could access static data members of a template class, which exist separate from an object.
Suppose you want to provide a template class argument to a friend function. Can you have a friend declaration like this, for example:
friend void report(HasFriend &); // possible?
The answer is no. The reason is that there is no such thing as a HasFriend object. There are only particular specializations, such as HasFriend<short>. To provide a template class argument, then, you have to indicate a specialization. For example, you can do this:
template <class T>
class HasFriend
{
friend void report(HasFriend<T>&; // bound template friend
...
};
To understand what this does, imagine the specialization produced if you declare an object of a particular type:
HasFriend<int> hf;
The compiler would replace the template parameter T with int, giving the friend declaration this form:
class HasFriend<int>
{
friend void report(HasFriend<int> &); // bound template friend
...
};
That is, report() with a HasFriend<int> parameter becomes a friend to the HasFriend<int> class. Similarly, report() with a HasFriend<double> parameter would be an overloaded version of report() that is friend to the HasFriend<double> class.
Note that report() is not itself a template function; it just has a parameter that is a template. This means that you have to define explicit specializations for those friends you plan to use:
void report(HasFriend<short> &) { ... }; // explicit specialization for short
void report(HasFriend<int> &) { ... }; // explicit specialization for int
Listing 14.23 illustrates these points. The HasFriend template has a static member ct. Note that this means that each particular specialization of the class has its own static member. The counts() method, which is a friend to all HasFriend specializations, reports the value of ct for two particular specializations: HasFriend<int> and HasFriend<double>. The program also provides two report() functions, each of which is a friend to one particular HasFriend specialization.
// frnd2tmp.cpp -- template class with non-template friends
#include <iostream>
using namespace std;
template <typename T>
class HasFriend
{
private:
T item;
static int ct;
public:
HasFriend(const T & i) : item(i) {ct++;}
~HasFriend() {ct--; }
friend void counts();
friend void reports(HasFriend<T> &; // template parameter
};
// each specialization has its own static data member
template <typename T>
int HasFriend<T>::ct = 0;
// non-template friend to all HasFriend<T> classes
void counts()
{
cout << "int count: " << HasFriend<int>::ct << endl;
cout << "double count: " << HasFriend<double>::ct << endl;
}
// non-template friend to the HasFriend<int> class
void reports(HasFriend<int> & hf)
{
cout <<"HasFriend<int>: " << hf.item << endl;
}
// non-template friend to the HasFriend<double> class
void reports(HasFriend<double> & hf)
{
cout <<"HasFriend<double>: " << hf.item << endl;
}
int main()
{
counts();
HasFriend<int> hfi1(10);
HasFriend<int> hfi2(20);
HasFriend<double> hfd(10.5);
reports(hfi2);
reports(hfd);
counts();
return 0;
}
Here is the program output:
int count: 0 double count: 0 HasFriend<int>: 20 HasFriend<double>: 10.5 int count: 2 double count: 1
We can modify the last example by making the friend functions templates themselves. In particular, we'll set things up for bound template friends, so each specialization of a class gets a matching specialization for a friend. The technique is a bit more complex than for non- template friends and involves three steps.
For the first step, declare each template function before the class definition.
template <typename T> void counts(); template <typename T> void report(T &);
Next, declare the templates again as friends inside the function. These statements declare specializations based on the class template parameter type:
template <typename TT>
class HasFriendT
{
...
friend void counts<TT>();
friend void report<>(HasFriendT<TT> &);
};
The <> in the declarations identifies these as template specializations. In the case of report(), the <> can be left empty because the template type argument (HasFriendT<TT>) can be deduced from the function argument. You could, however, use report<HasFriendT<TT> >(HasFriendT<TT> &) instead. The counts() function, however, has no parameters, so you have to use the template argument syntax (<TT>) to indicate its specialization. Note, too, that TT is the parameter type for the HasFriendT class.
Again, the best way to understand these declarations is to imagine what they become when you declare an object of a particular specialization. For example, suppose you declare this object:
HasFriendT<int> squack;
Then the compiler substitutes int for TT and generates the following class definition:
class HasFriendT<int>
{
...
friend void counts<int>();
friend void report<>(HasFriendT<int> &);
};
One specialization is based on TT, which becomes int, and the other on HasFriendT<TT>, which becomes HasFriendT<int>. Thus, the template specializations counts<int>() and report<HasFriendT<int> >() are declared as friends to the HasFriendT<int> class.
The third requirement the program must meet is to provide template definitions for the friends. Listing 14.24 illustrates these three aspects. Note that Listing 14.23 had one count() function that was a friend to all HasFriend classes, while Listing 14.24 has two count() functions, one a friend to each of the instantiated class types. Because the count() function calls have no function parameter from which the compiler can deduce the desired specialization, these calls use the count<int>() and count<double>() forms to indicate the specialization. For the calls to report(), however, the compiler can use the argument type to deduce the specialization. You could use the <> form to the same effect:
report<HasFriendT<int> >(hfi2); // same as report(hfi2);
// tmp2tmp.cpp -- template friends to a template class
#include <iostream>
using namespace std;
// template prototypes
template <typename T> void counts();
template <typename T> void report(T &);
// template class
template <typename TT>
class HasFriendT
{
private:
TT item;
static int ct;
public:
HasFriendT(const TT & i) : item(i) {ct++;}
~HasFriendT() { ct--; }
friend void counts<TT>();
friend void report<>(HasFriendT<TT> &);
};
template <typename T>
int HasFriendT<T>::ct = 0;
// template friend functions definitions
template <typename T>
void counts()
{
cout << "template counts(): " << HasFriendT<T>::ct
<< endl;
}
template <typename T>
void report(T & hf)
{
cout << hf.item << endl;
}
int main()
{
counts<int>();
HasFriendT<int> hfi1(10);
HasFriendT<int> hfi2(20);
HasFriendT<double> hfd(10.5);
report(hfi2); // generate report(HasFriendT<int> &)
report(hfd); // generate report(HasFriendT<double> &)
counts<double>();
counts<int>();
return 0;
}
Here is the output:
template counts(): 0 20 10.5 template counts(): 1 template counts(): 2
The bound template friend functions were template specializations of a template declared outside of a class. An int class specialization got an int function specialization, and so on. By declaring a template inside a class, you can create unbound friend functions for which every function specialization is a friend to every class specialization. For unbound friends, the friend template type parameters are different from the template class type parameters:
template <typename T>
class ManyFriend
{
...
template <typename C, typename D> friend void show2(C &, D &);
};
Listing 14.25 shows an example using an unbound friend. In it, the function call show2(hfi1, hfi2) gets matched to the following specialization:
void show2<ManyFriend<int> &, ManyFriend<int> &>
(ManyFriend<int> & c, ManyFriend<int> & d);
Because it is a friend to all specializations of ManyFriend, this function has access to the item members of all specializations. But it only uses access to ManyFriend<int> objects.
Similarly, show2(hfd, hfi2) gets matched to this specialization:
void show2<ManyFriend<double> &, ManyFriend<int> &>
(ManyFriend<double> & c, ManyFriend<int> & d);
It, too, is a friend to all ManyFriend specializations, and it uses its access to the item member of a ManyFriend<int> object and to the item member of a ManyFriend<double> object.
// manyfrnd.cpp -- unbound template friend to a template class
#include <iostream>
using namespace std;
template <typename T>
class ManyFriend
{
private:
T item;
public:
ManyFriend(const T & i) : item(i) {}
template <typename C, typename D> friend void show2(C &, D &);
};
template <typename C, typename D> void show2(C & c, D & d)
{
cout << c.item << ", " << d.item << endl;
}
int main()
{
ManyFriend<int> hfi1(10);
ManyFriend<int> hfi2(20);
ManyFriend<double> hfd(10.5);
show2(hfi1, hfi2);
show2(hfd, hfi2);
return 0;
}
Here's the output:
10, 20 10.5, 20
C++ provides several means for reusing code. Public inheritance, described in Chapter 13, "Class Inheritance," enables you to model is-a relationships, with derived classes being able to reuse the code of base classes. Private and protected inheritance also let you reuse base class code, this time modeling has-a relationships. With private inheritance, public and protected members of the base class become private members of the derived class. With protected inheritance, public and protected members of the base class become protected members of the derived class. Thus, in either case, the public interface of the base class becomes an internal interface for the derived class. This sometimes is described as inheriting the implementation but not the interface, for a derived object can't explicitly use the base class interface. Thus, you can't view a derived object as a kind of base object. Because of this, a base class pointer or reference is not allowed to refer to a derived object without an explicit type cast.
You also can reuse class code by developing a class with members that are themselves objects. This approach, called containment, layering, or composition, also models the has-a relationship. Containment is simpler to implement and use than private or protected inheritance, so it usually is preferred. However, private and protected inheritance have slightly different capabilities. For example, inheritance allows a derived class access to protected members of a base class. Also, it allows a derived class to redefine a virtual function inherited from the base class. Because containment is not a form of inheritance, neither of these capabilities are options when you reuse class code by containment. On the other hand, containment is more suitable if you need several objects of a given class. For example, a State class could contain an array of County objects.
Multiple inheritance (MI) allows you to reuse code for more than one class in a class design. Private or protected MI models the has-a relationship, while public MI models the is-a relationship. Multiple inheritance can create problems with multi-defined names and multi- inherited bases. You can use class qualifiers to resolve name ambiguities and virtual base classes to avoid multi-inherited bases. However, using virtual base classes introduces new rules for writing initialization lists for constructors and for resolving ambiguities.
Class templates let you create a generic class design in which a type, usually a member type, is represented by a type parameter. A typical template looks like this:
template <class T>
class Ic
{
T v;
...
public:
Ic(const T & val) : v(val) {}
...
};
Here the T is the type parameter and acts as a stand-in for a real type to be specified at a later time. (This parameter can have any valid C++ name, but T and Type are common choices.) You also can use typename instead of class in this context:
template <typename T> // same as template <class T>
class Rev {...};
Class definitions (instantiations) are generated when you declare a class object, specifying a particular type. For example, the declaration
class Ic<short> sic; // implicit instantiation
causes the compiler to generate a class declaration in which every occurrence of the type parameter T in the template is replaced by the actual type short in the class declaration. In this case the class name is Ic<short>, not Ic. Ic<short> is termed a specialization of the template. In particular, it is an implicit instantiation.
An explicit instantiation occurs when you declare a specific specialization of the class using the keyword template:
template class IC<int>; // explicit instantiation
In this situation, the compiler uses the general template to generate an int specialization Ic<int> even though no objects have yet been requested of that class.
You can provide explicit specializations which are specialized class declarations that override a template definition. Just define the class, starting with template<>, then the template class name followed by angle brackets containing the type for which you want a specialization. For example, you could provide a specialized Ic class for character pointers as follows:
template <> class Ic<char *>.
{
char * str;
...
public:
Ic(const char * s) : str(s) {}
...
};
Then a declaration of the form
class Ic<char *> chic;
would use the specialized definition for chic rather than using the general template.
A class template can specify more than one generic type and can also have non-type parameters:
template <class T, class TT, int n>
class Pals {...};
A class template also can have parameters that are templates:
template < template <typename T> class CL, typename U, int z>
class Trophy {...};
Here z stand for an int value, U stands for the name of a type, and CL stands for a class template declared using template <typename T>.
The declaration
Pals<double, String, 6> mix;
would generate an implicit instantiation using double for T, String for TT, and 6 for n.
Class templates can be partially specialized:
template <class T> Pals<T, T, 10> {...};
template <class T, class TT> Pals<T, TT, 100> {...};
template <class T, int n> Pals <T, T*, n> {...};
The first creates a specialization in which both types are the same and n has the value 6. Similarly, the second creates a specialization for n equal to 100, and the third creates a specialization for which the second type is a pointer to the first type.
Template classes can be members of other classes, structures, and templates
The goal of all these methods is to allow you to reuse tested code without having to copy it manually. This simplifies the programming task and makes programs more reliable.
| 1: |
|
||||||||||
| 2: |
Suppose we have the following definitions: class Frabjous {
private:
char fab[20];
public:
Frabjous(const char * s = "C++") : fab(s) {}
virtual void tell() { cout << fab; }
};
class Gloam {
private:
int glip;
Frabjous fb;
public:
Gloam(int g = 0, const char * s = "C++");
Gloam(int g, const Frabjous & f);
void tell();
};
Given that the Gloam version of tell() should display the values of glip and fb, provide definitions for the three Gloam methods. |
||||||||||
| 3: |
Suppose we have the following definitions: class Frabjous {
private:
char fab[20];
public:
Frabjous(const char * s = "C++") : fab(s) {}
virtual void tell() { cout << fab; }
};
class Gloam : private Frabjous{
private:
int glip;
public:
Gloam(int g = 0, const char * s = "C++");
Gloam(int g, const Frabjous & f);
void tell();
};
Given that the Gloam version of tell() should display the values of glip and fab, provide definitions for the three Gloam methods. |
||||||||||
| 4: |
Suppose we have the following definition, based on the Stack template of Listing 14.14 and the Worker class of Listing 14.11: Stack<Worker *> sw; Write out the class declaration that will be generated. Just do the class declaration, not the non-inline class methods. |
||||||||||
| 5: |
Use the template definitions in this chapter to define the following:
How many template class definitions are produced in Listing 14.19? |
||||||||||
| 6: |
Describe the differences between virtual and nonvirtual base classes. |
| 1: |
The Wine class has a String class object (Chapter 12) holding the name of a wine and ArrayDb class object (this chapter) of Pair objects (this chapter), with each Pair element holding a vintage year and the number of bottles for that year. For example, a Pair might contain the value 1990 for the year and 38 for the number of bottles. Implement the Wine class using containment and test it with a simple program. The program should prompt you to enter a wine name, the number of elements of the array, and the year and bottle count information for each array element. The program should use this data to construct a Wine object, then display the information stored in the object. |
| 2: |
The Wine class has a String class object (Chapter 12) holding the name of a wine and ArrayDb class object (this chapter) of Pair objects (this chapter), with each Pair element holding a vintage year and the number of bottles for that year. For example, a Pair might contain the value 1990 for the year and 38 for the number of bottles. Implement the Wine class using private inheritance and test it with a simple program. The program should prompt you to enter a wine name, the number of elements of the array, and the year and bottle count information for each array element. The program should use this data to construct a Wine object, then display the information stored in the object. |
| 3: |
Define a QueueTp template. Test it by creating a queue of pointers-to-Worker (as defined in Listing 14.11) and using the queue in a program similar to that of Listing 14.13. |
| 4: |
A Person class holds the first name and the last name of a person. In addition to its constructors, it has a Show() method that displays both names. A Gunslinger class derives virtually from the Person class. It has a Draw() member that returns a type double value representing a gunslinger's draw time. The class also has an int member representing the number of notches on a gunslinger's gun. Finally, it has a Show() function that displays all this information. A PokerPlayer class derives virtually from the Person class. It has a Draw() member that returns a random number in the range 1 through 52 representing a card value. (Optionally, you could define a Card class with suit and face value members and use a Card return value for Draw()). The PokerPlayer class uses the Person show() function. The BadDude class derives publicly from the Gunslinger and PokerPlayer classes. It has a Gdraw() member that returns a bad dude's draw time and a Cdraw() member that returns the next card drawn. It has an appropriate Show() function. Define all these classes and methods, along with any other necessary methods (such as methods for setting object values), and test them in a simple program similar to that of Listing 14.11. |
| 5: |
Here are some class declarations: // emp.h -- header file for employee class and children
#include <cstring>
#include <iostream>
using namespace std;
const int SLEN = 20;
class employee
{
protected:
char fname[SLEN];
char lname[SLEN];
char job[SLEN];
public:
employee();
employee(char * fn, char * ln, char * j);
employee(const employee & e);
virtual void ShowAll() const;
virtual void SetAll(); // prompts user for values
friend ostream & operator<<(ostream & os, const employee & e);
};
class manager: virtual public employee
{
protected:
int inchargeof;
public:
manager();
manager(char * fn, char * ln, char * j, int ico = 0);
manager(const employee & e, int ico);
manager(const manager & m);
void ShowAll() const;
void SetAll();
};
class fink: virtual public employee
{
protected:
char reportsto[SLEN];
public:
fink();
fink(char * fn, char * ln, char * j, char * rpo);
fink(const employee & e, char * rpo);
fink(const fink & e);
void ShowAll() const;
void SetAll();
};
class highfink: public manager, public fink
{
public:
highfink();
highfink(char * fn, char * ln, char * j, char * rpo, int ico);
highfink(const employee & e, char * rpo, int ico);
highfink(const fink & f, int ico);
highfink(const manager & m, char * rpo);
highfink(const highfink & h);
void ShowAll() const;
void SetAll();
};
Note that the class hierarchy uses multiple inheritance with a virtual base class, so keep in mind the special rules for constructor initialization lists for that case. Also note that the data members are declared protected instead of private. This simplifies the code for some of the highfink methods. (Note, for example, if highfink::ShowAll() simply calls fink::ShowAll() and manager::ShowAll(), it winds up calling employee::ShowAll() twice.) However, you may want to use private data and provide additional protected methods in the manner of the Worker class with MI. Provide the class method implementations and test the classes in a program. Here is a minimal test program. You should add at least one test of a SetAll() member function. // useemp1.cpp -- use employee classes
#include <iostream>
using namespace std;
#include "emp.h"
int main()
{
employee th("Trip", "Harris", "Thumper");
cout << th << '\n';
th.ShowAll();
manager db("Debbie", "Bolt", "Twigger", 5);
cout << db << '\n';
db.ShowAll();
cout << "Press a key for next batch of output:\n";
cin.get();
fink mo("Matt", "Oggs", "Oiler", "Debbie Bolt");
cout << mo << '\n';
mo.ShowAll();
highfink hf(db, "Curly Kew");
hf.ShowAll();
cout << "Using an employee * pointer:\n";
employee * tri[4] = { &th, &db, &mo, &hf };
for (int i = 0; i < 4; i++)
tri[i]->ShowAll();
return 0;;
}
Why is no assignment operator defined? Why are showall() and setall() virtual? Why is employee a virtual base class? Why does the highfink class have no data section? Why is only one version of operator<<() needed? What would happen if the end of the program were replaced with this code? employee tri[4] = {th, db, mo, hf};
for (int i = 0; i < 4; i++)
tri[i].showall();
|
| CONTENTS | |
